BCM Input/Output Specification

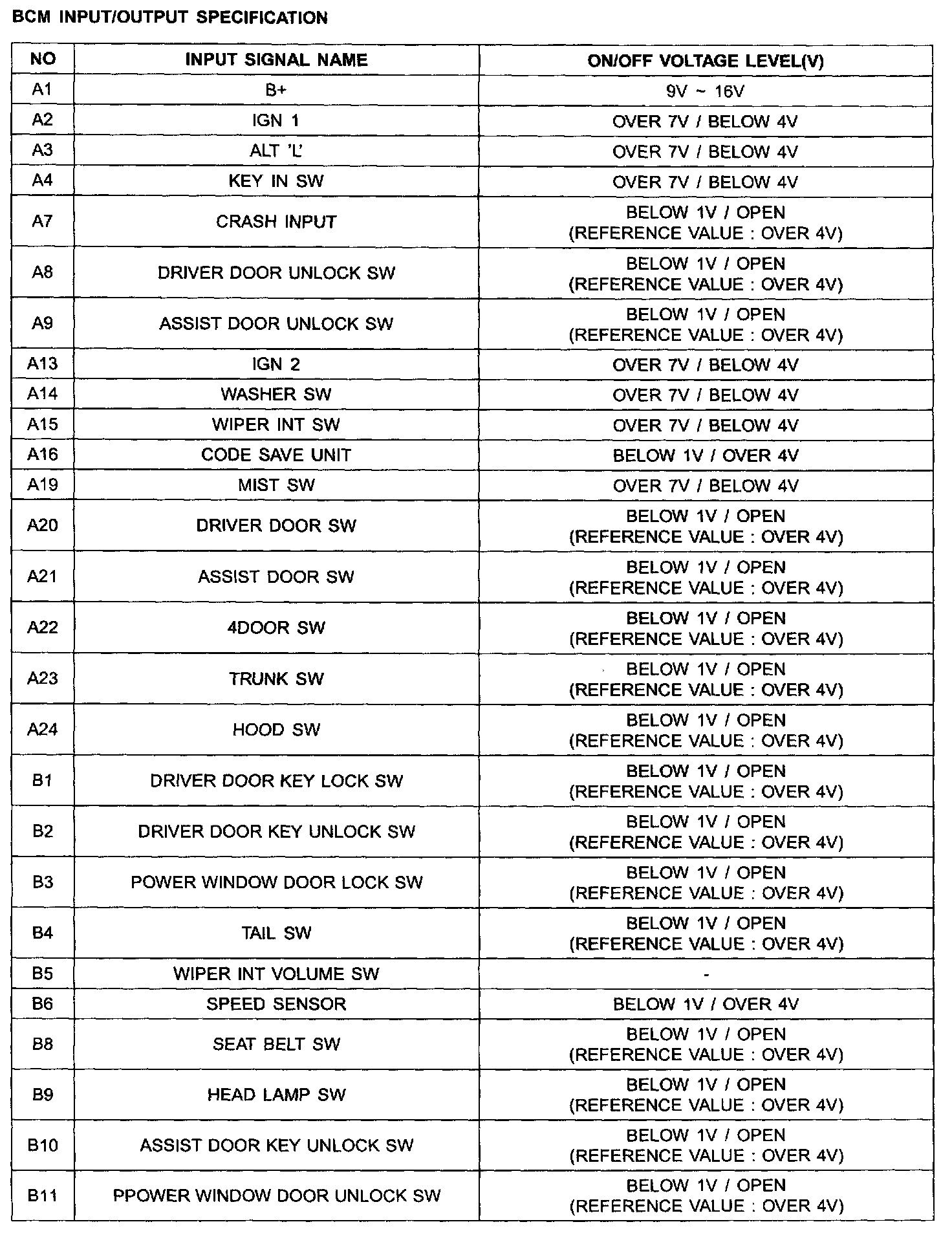

BCM Input/Output Specification (Part 1):

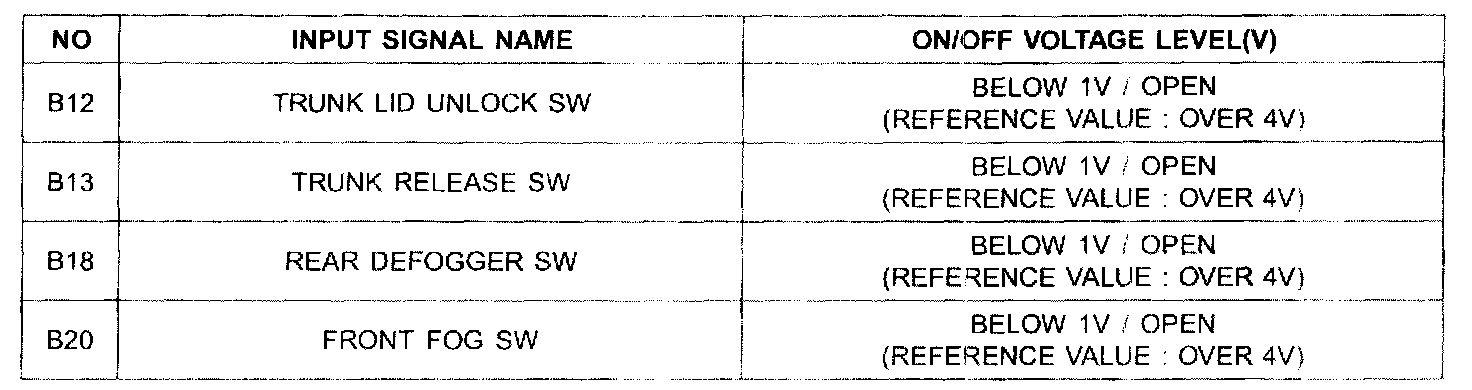

BCM Input/Output Specification (Part 2):
