Backup Lamps Function

  1. Necessary conditions to switch ON :
    • When inhibit sw 'R' read by FAM is active and transmitted to RAM by CAN signal.
  2. Necessary conditions to switch OFF :
    • When inhibit sw 'R' read by FAM is not active and transmitted to RAM by CAN signal.

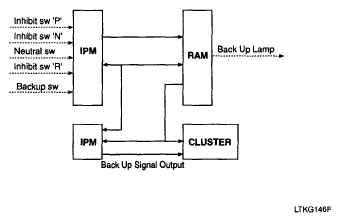

  3. Functional diagram
Fig 1: Backup Lamps - Functional Diagram
G05324873Courtesy of HYUNDAI MOTOR CO.
