Relay Box (Engine Compartment)

Relay Box (Engine Compartment)

REPLACEMENT

FAM (FRONT AREA MODULE)
1. Disconnect the negative (-) battery terminal.
2. Remove the FAM cover of engine room.




3. Remove the FAM connectors (2EA) (A) and battery terminal nut (1 EA) (B).

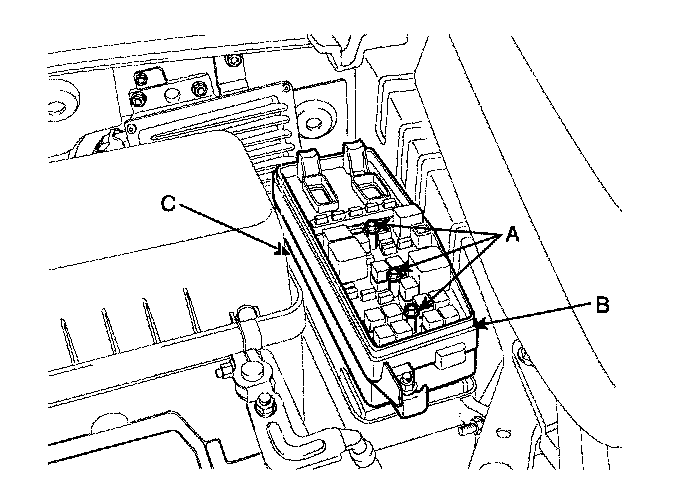

4. Remove FAM mounting bolts (3EA) (A) and remove the FAM (B) from splash shield (C).
5. Disconnect the connector from splash shield.
6. Installation is the reverse of removal.
