Power Window Switch

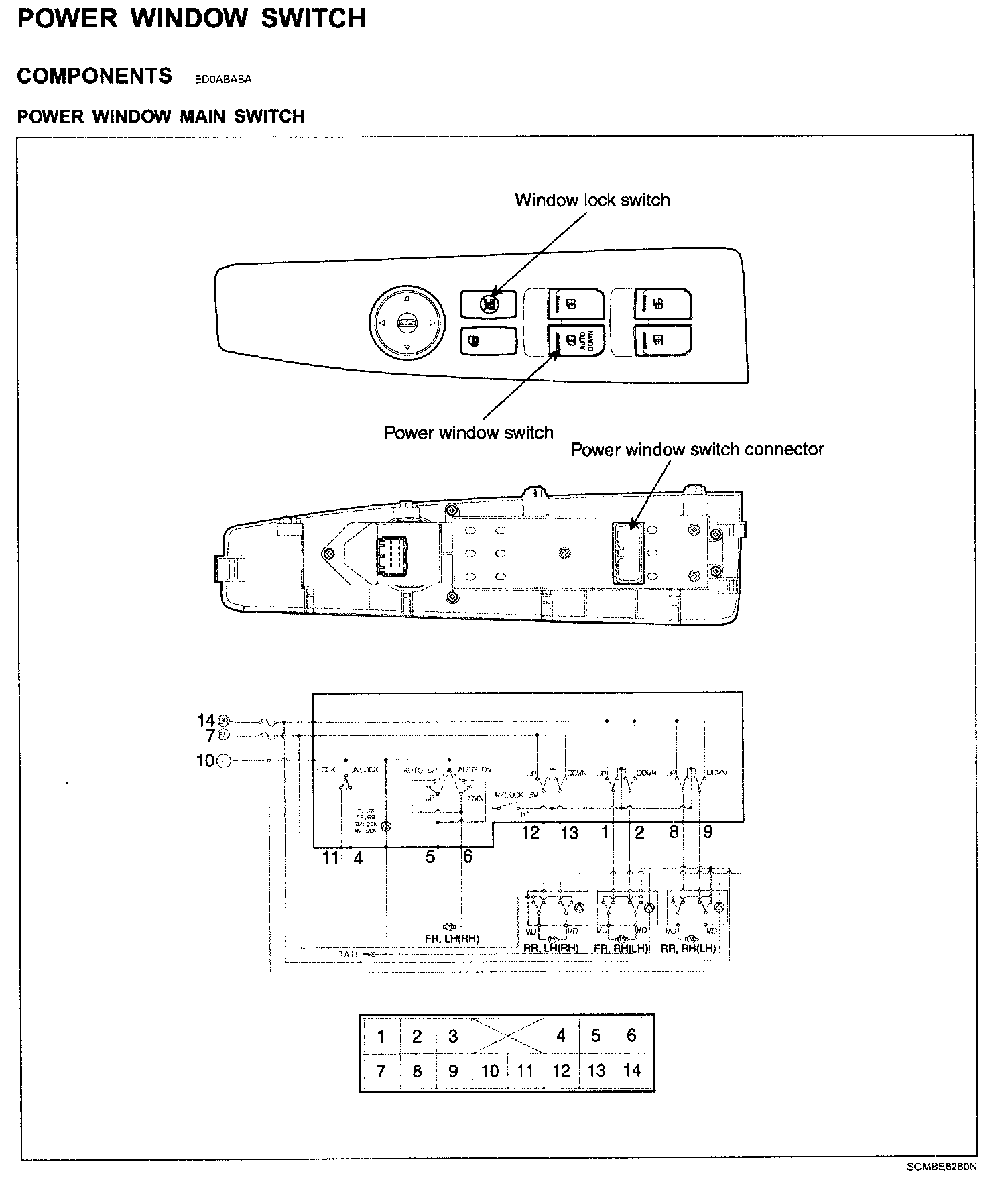

Power Window Main Switch - Components:

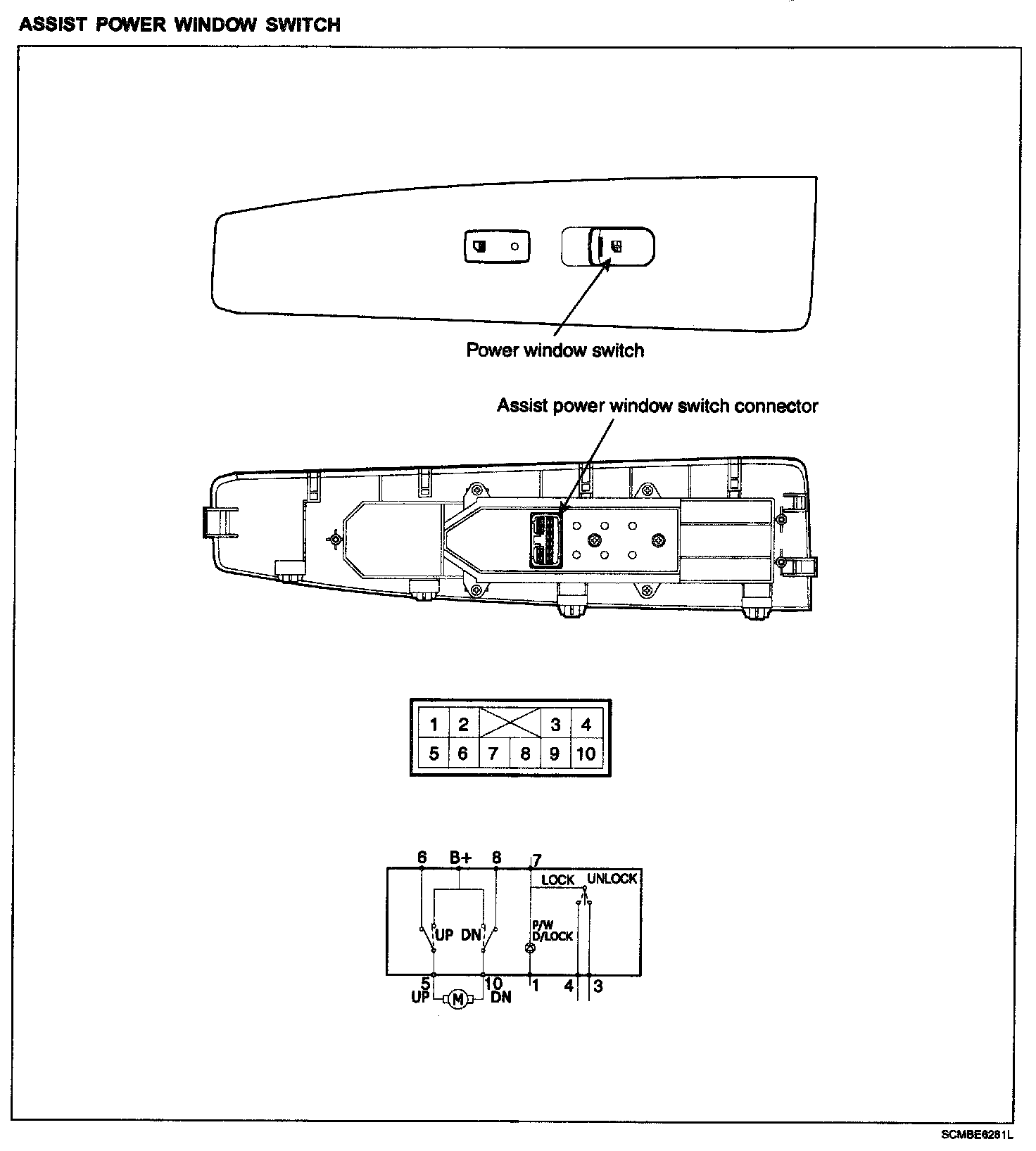

Assist Power Window Switch - Components:

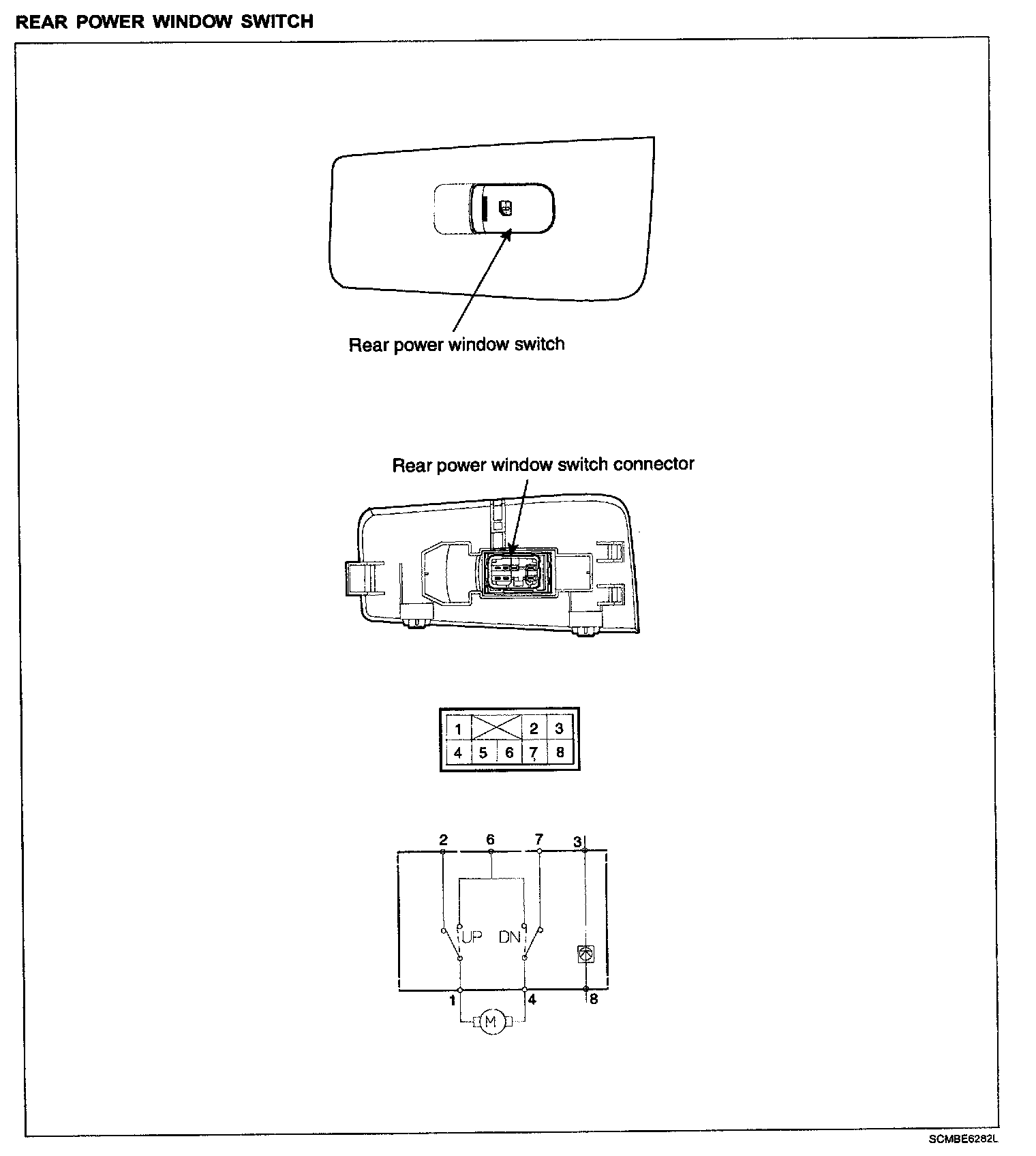

Rear Power Window Switch - Components:
