DC/AC Inverter

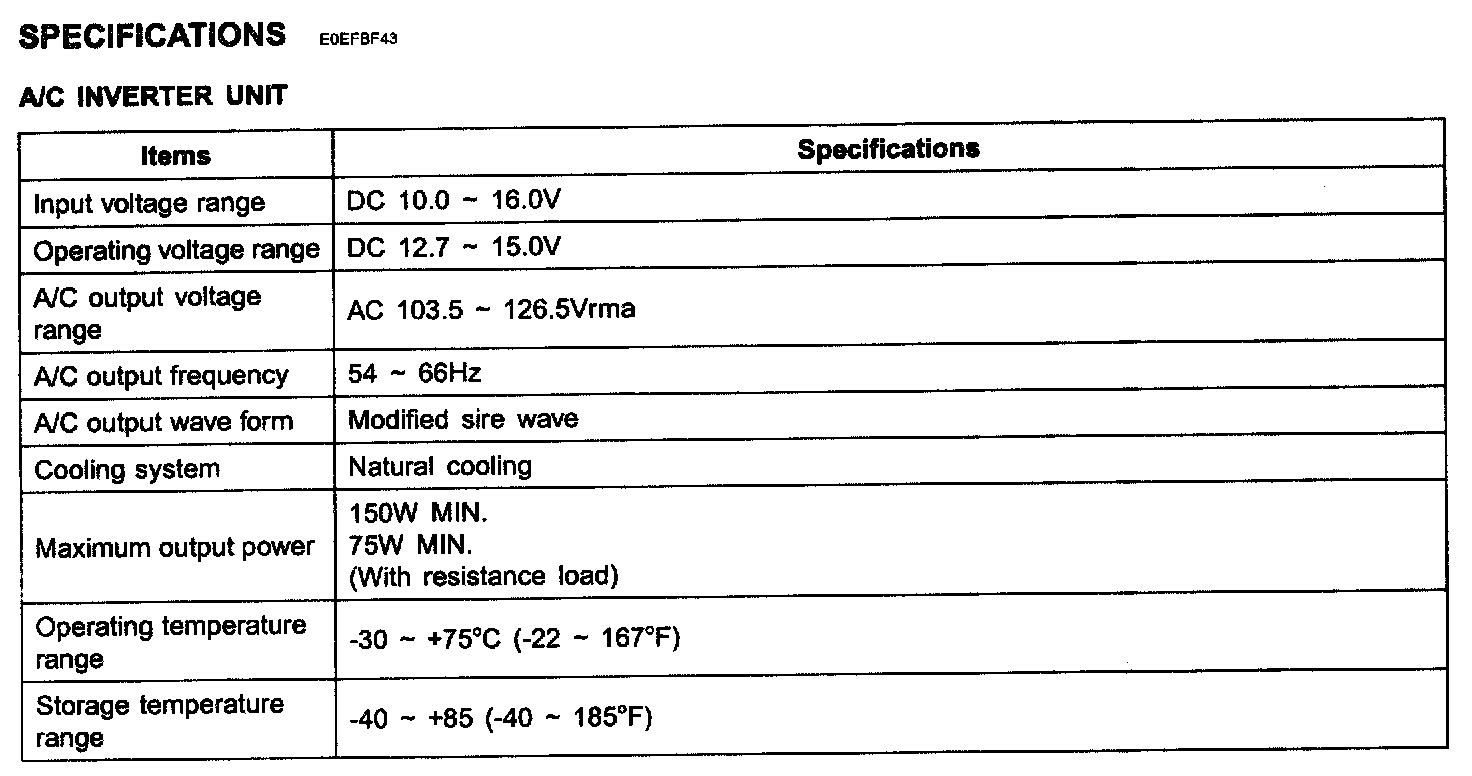

A/C Inverter Unit - Specification (Part 1):

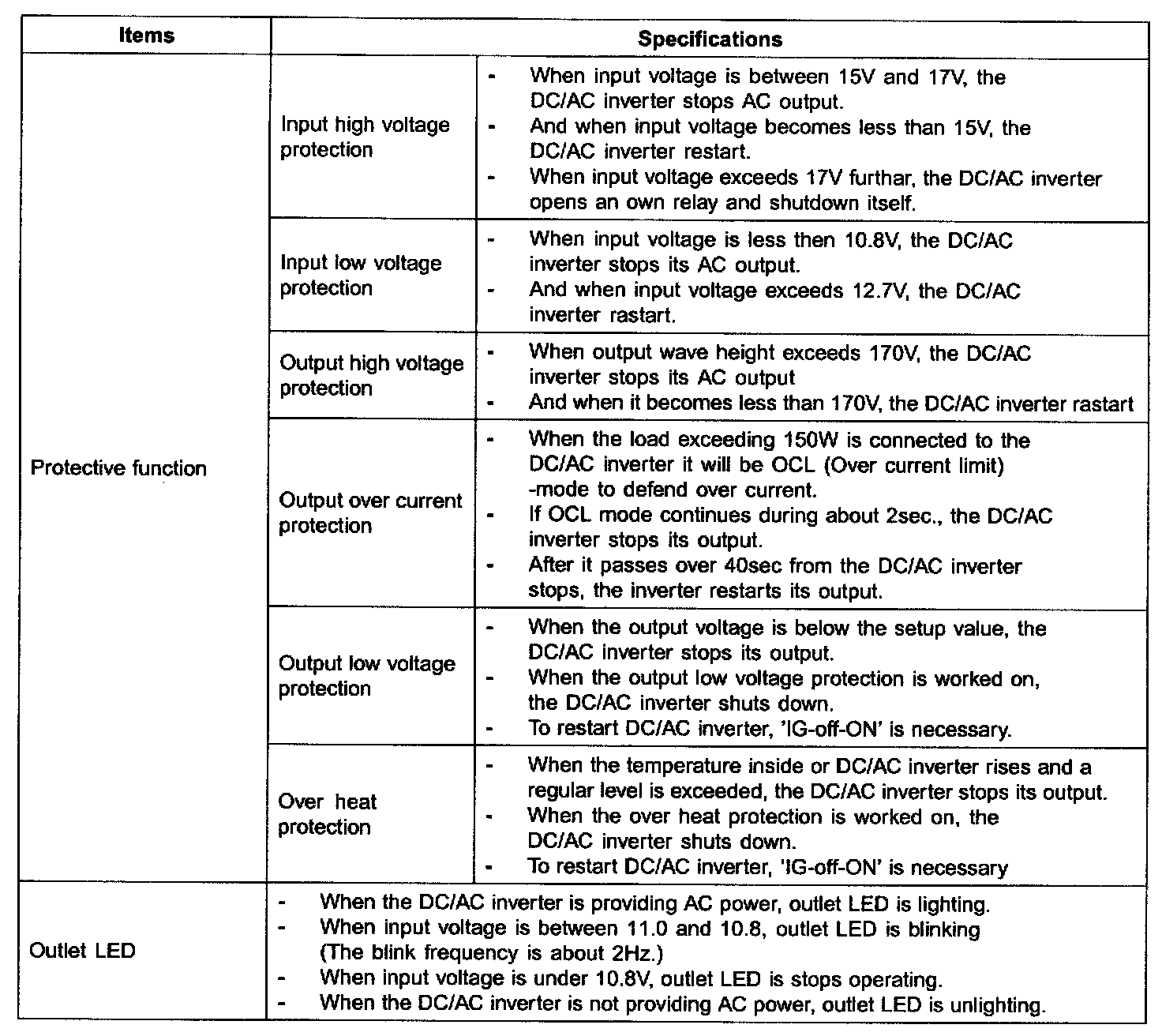

A/C Inverter Unit - Specification (Part 2):
A/C Inverter Outlet - Specifications:
