Crankshaft Position Sensor (CKPS): Inspection: Waveform

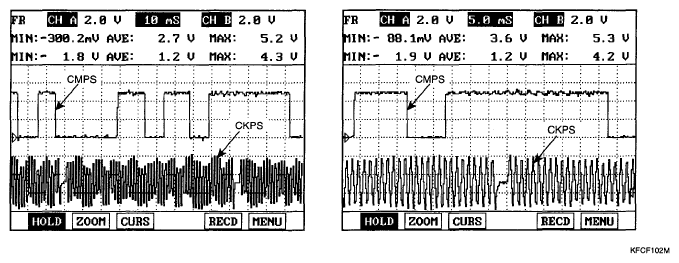

Fig 1: Identifying Crankshaft Position Sensor Waveform
G05349447Courtesy of HYUNDAI MOTOR CO.
