Hyundai
>>
2007
>>
Santa Fe SE, AWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Fuel System (G6DA-GSL 3.3)
>>
Gasoline Engine Control System
>>
Knock Sensor (KS)
>>
Inspection
>>
Schematic Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematic Diagram

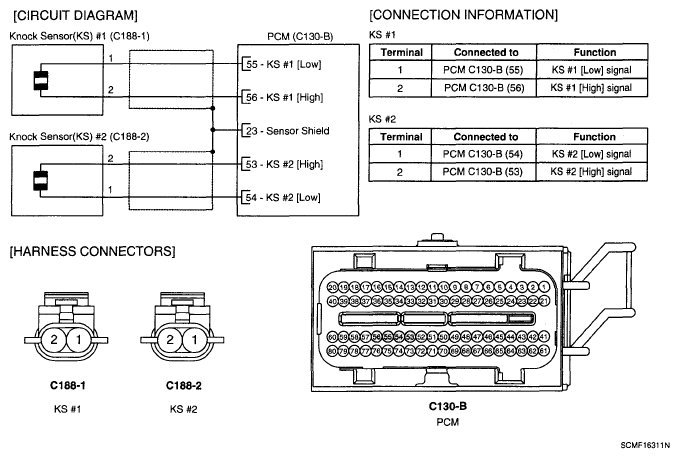

Fig 1: Identifying Knock Sensor Schematic Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
