Engine Control Module

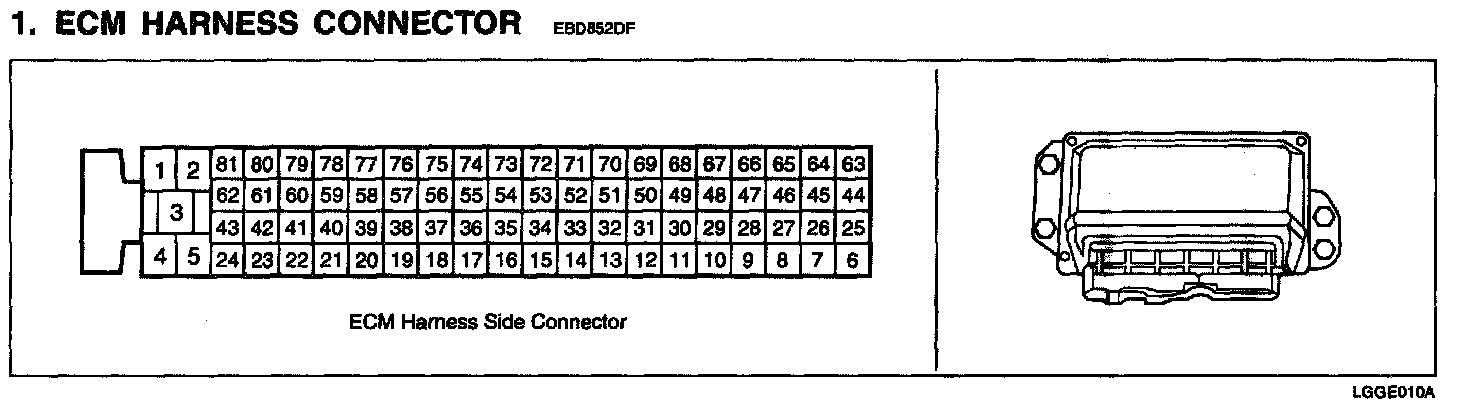

ECM Harness Connector:

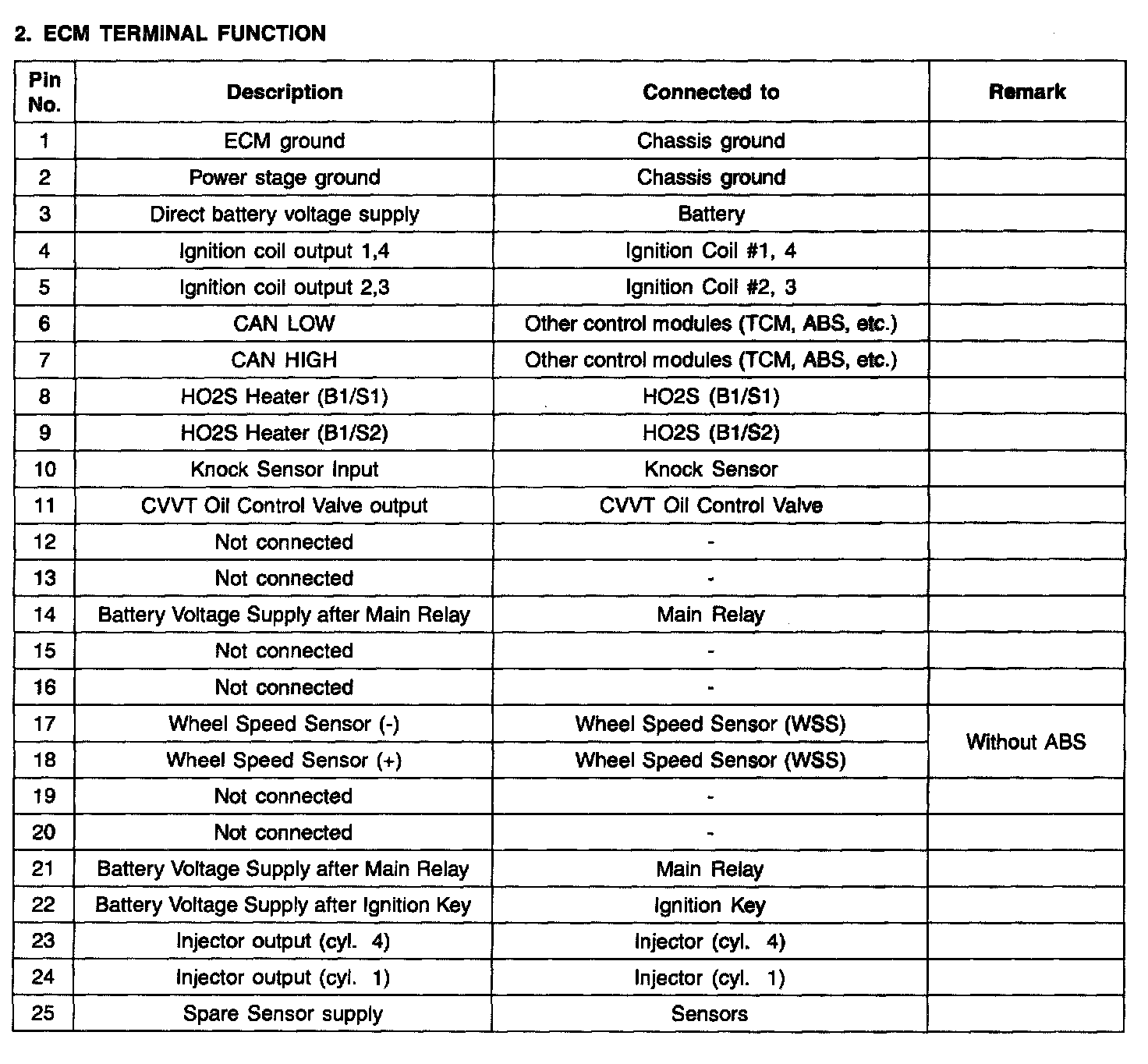

ECM Terminal Function Part 1:

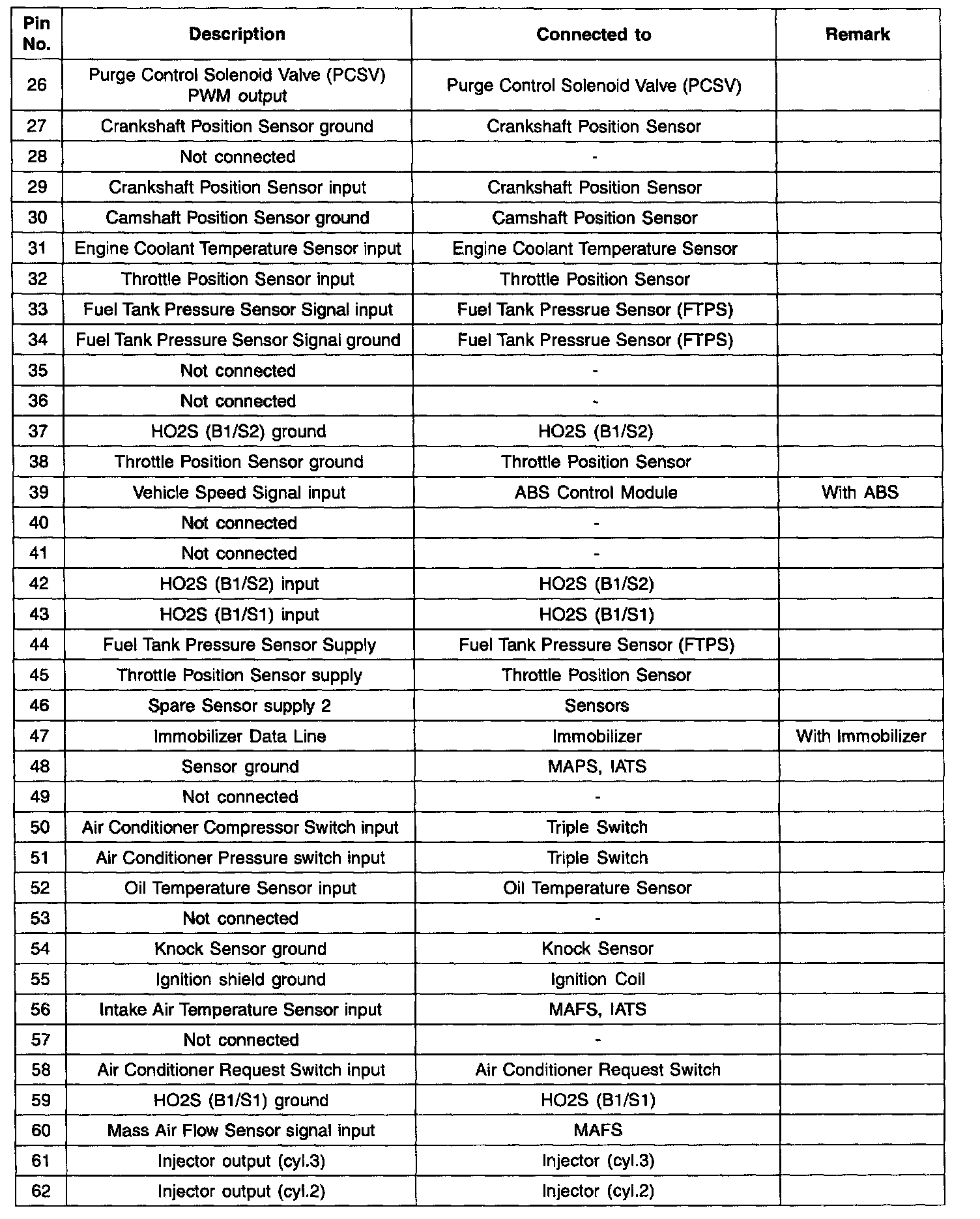

ECM Terminal Function Part 2:

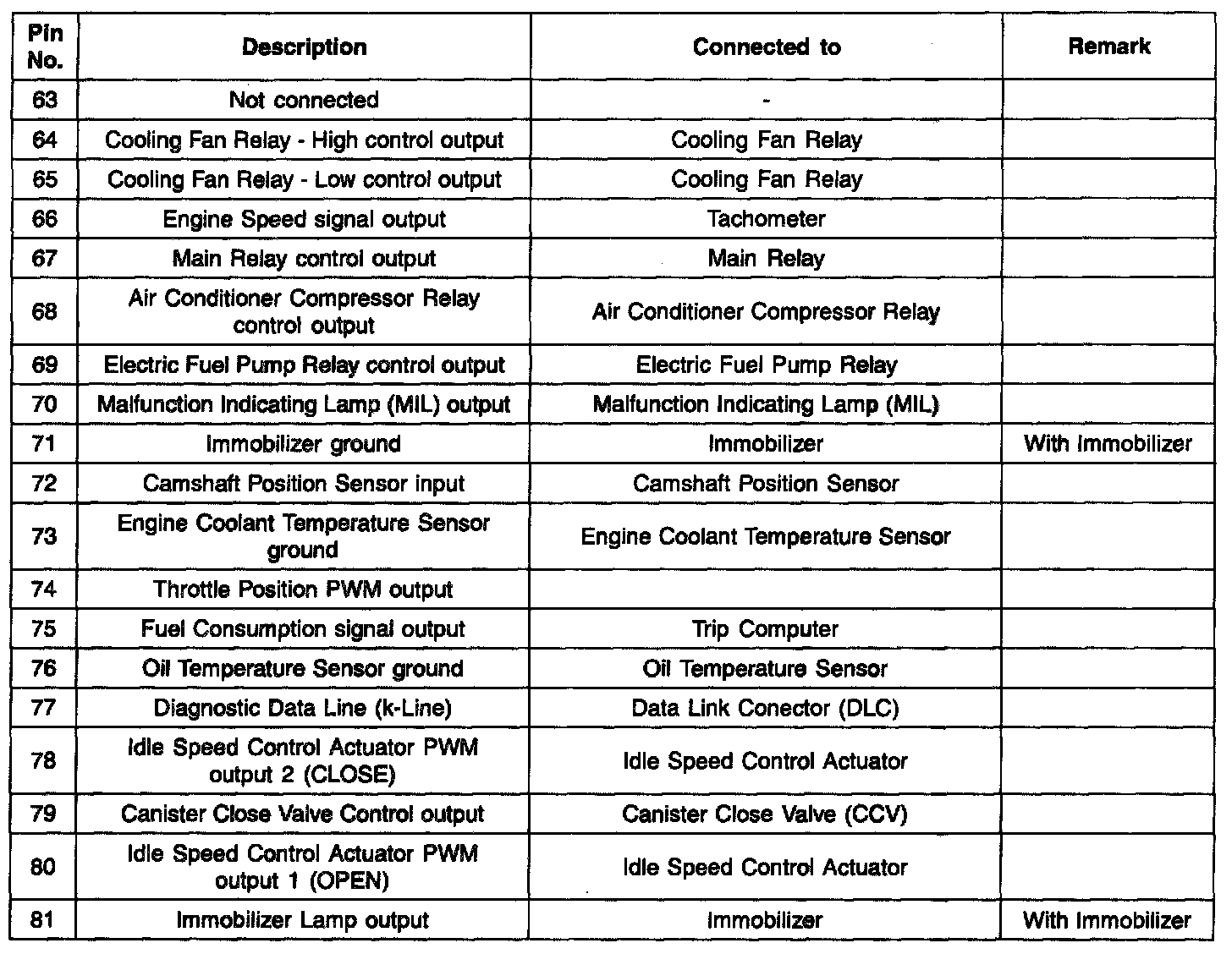

ECM Terminal Function Part 3:

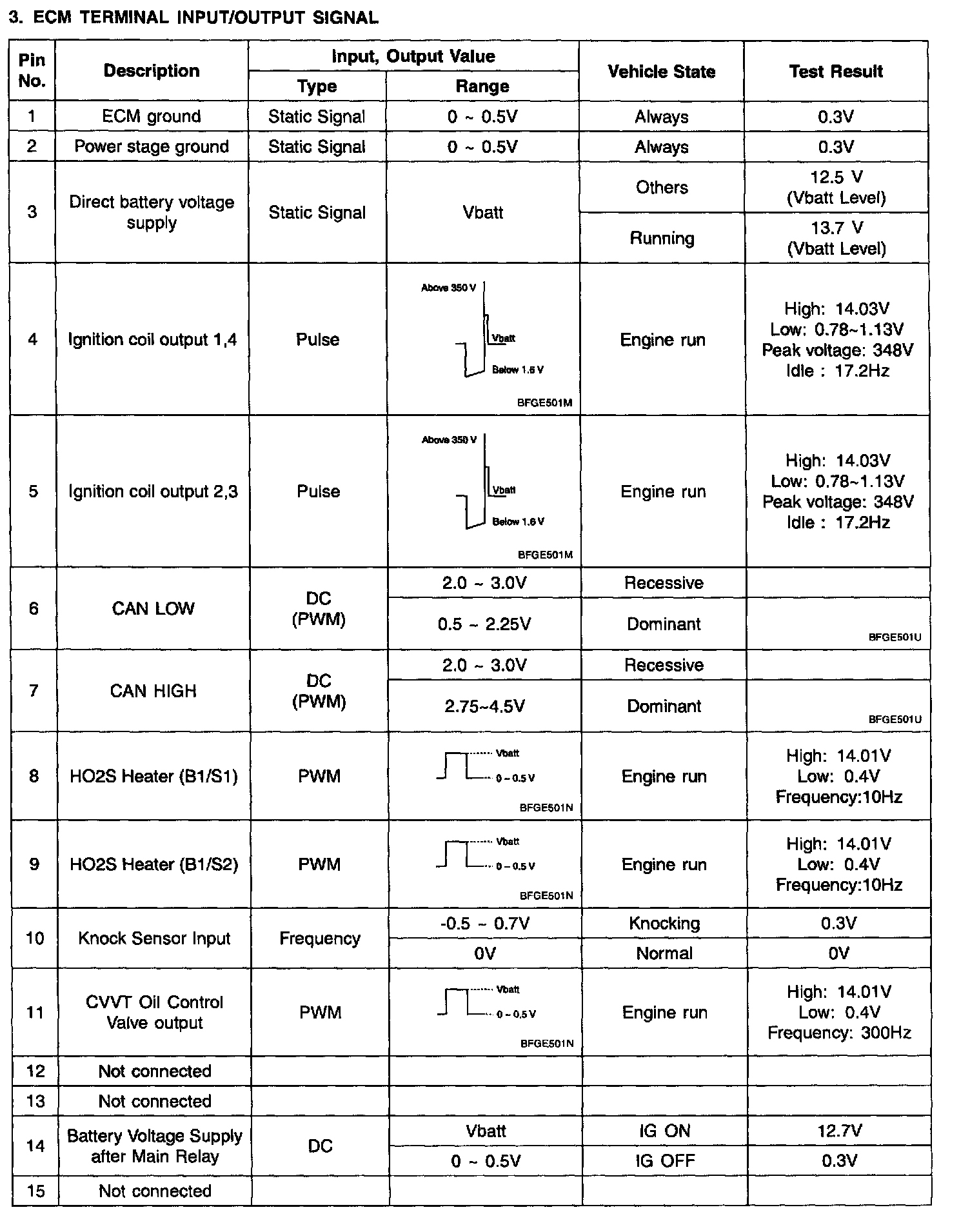

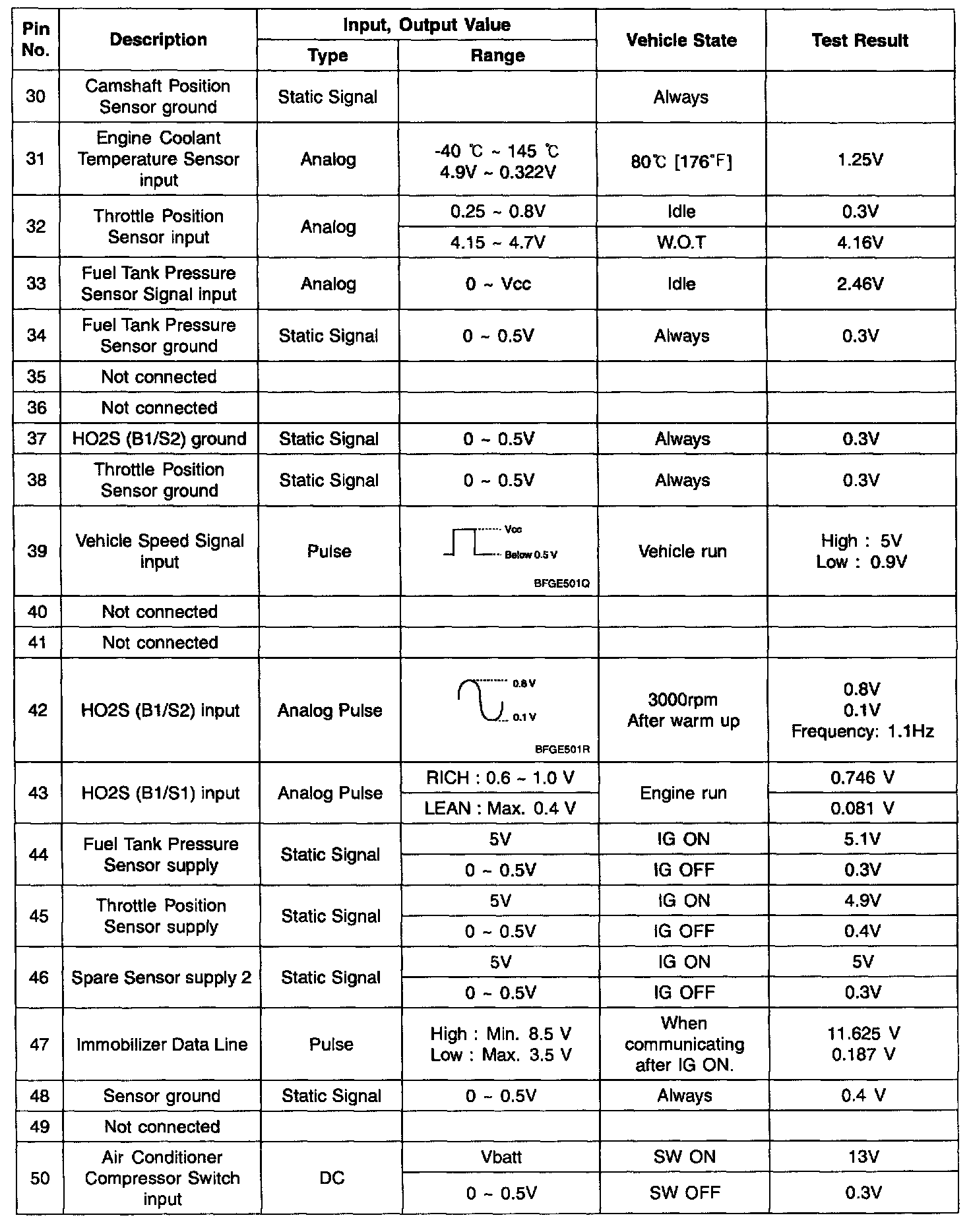

ECM Terminal Input/Output Signal Part 1:

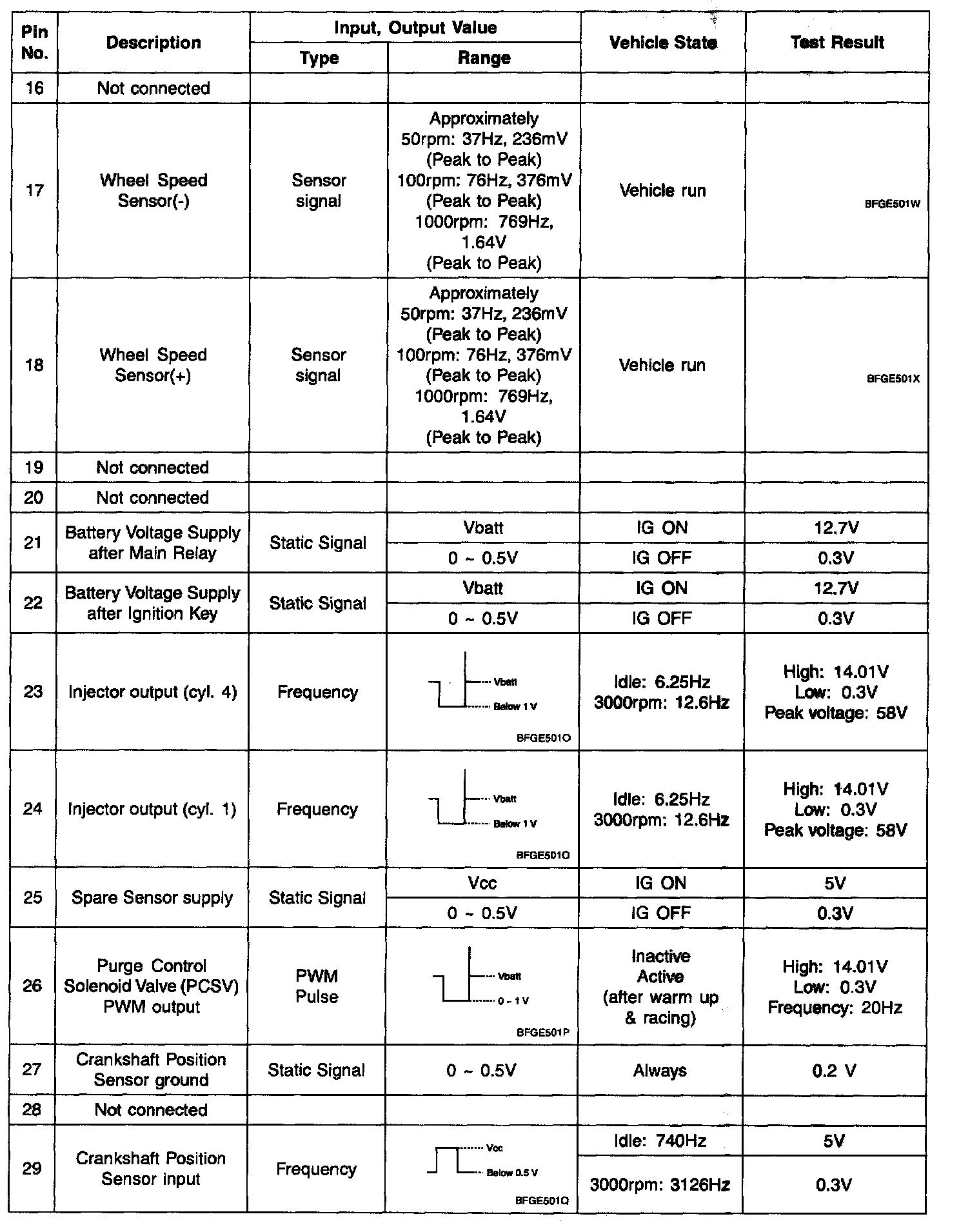

ECM Terminal Input/Output Signal Part 2:

ECM Terminal Input/Output Signal Part 3:

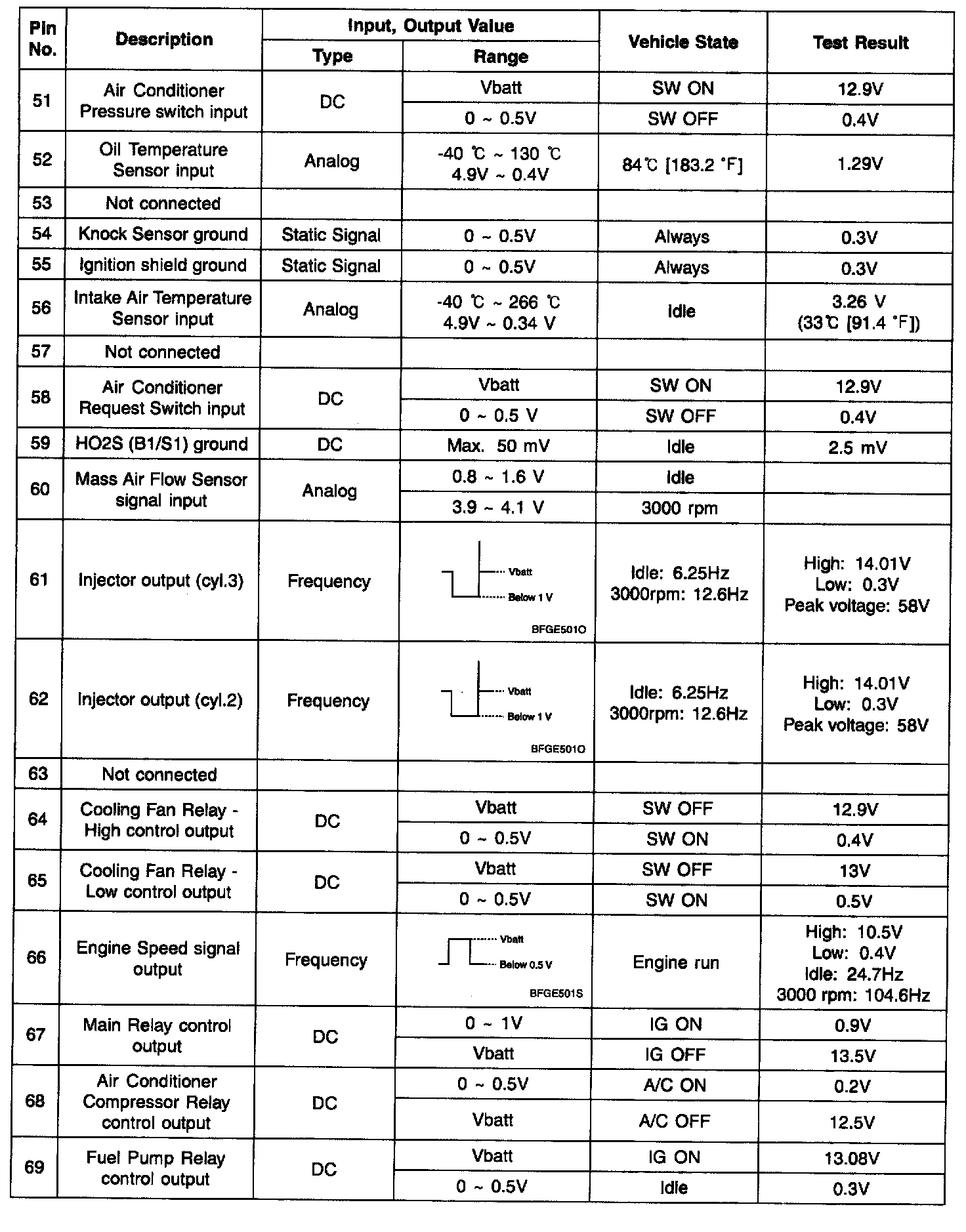

ECM Terminal Input/Output Signal Part 4:

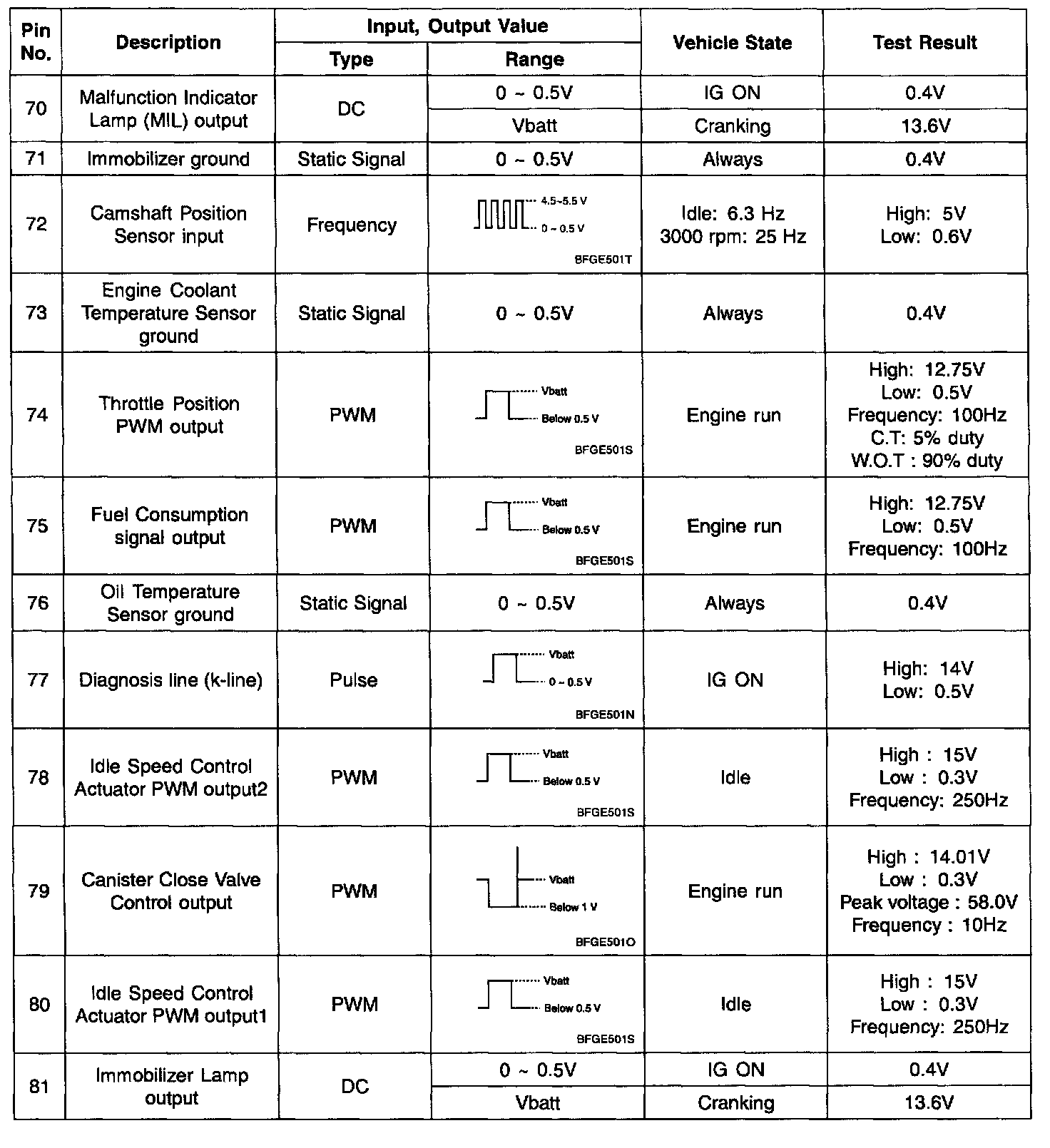

ECM Terminal Input/Output Signal Part 5:
