System Specifications

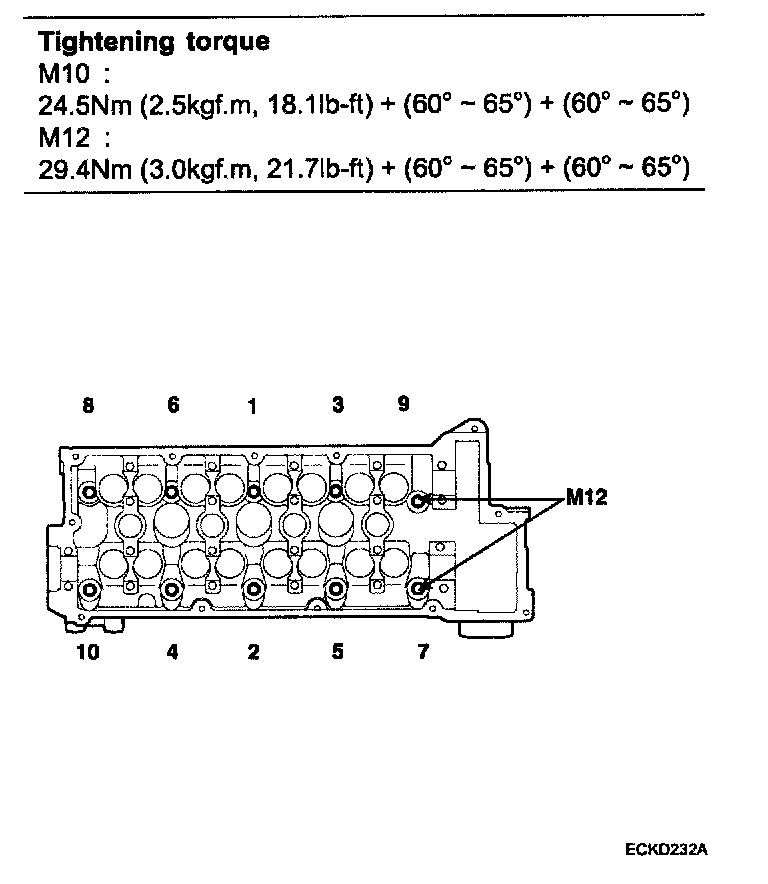

Cylinder head





Flatness of gasket surface Max. 0.03mm (0.0012in) 0.06mm(0.0024in)
Flatness of manifold mounting surface Max. 0.15mm (0.0059in) 0.03mm(0.0012in)

Intake manifold nuts 17.7-24.5 Nm (1.8-2.5 kgf-m, 13.0-18.1 ft. lbs.)

Camshaft bearing cap bolts 13.7-14.7 Nm (1.4 - 1.5 kgf-m, 10.1-10.8 ft. lbs.)
Camshaft sprocket bolt 98.1-117.7 Nm (10.0-12.0 kgf-m, 72.3-86.8 ft. lbs.)

Exhaust manifold nuts 42.2-53.9 Nm (4.3-5.5 kgf-m, 31.1-39.8 ft. lbs.)

Camshaft bearing cap bolts 13.7-14.7 Nm (1.4 - 1.5 kgf-m, 10.1-10.8 ft. lbs.)
