Components Location

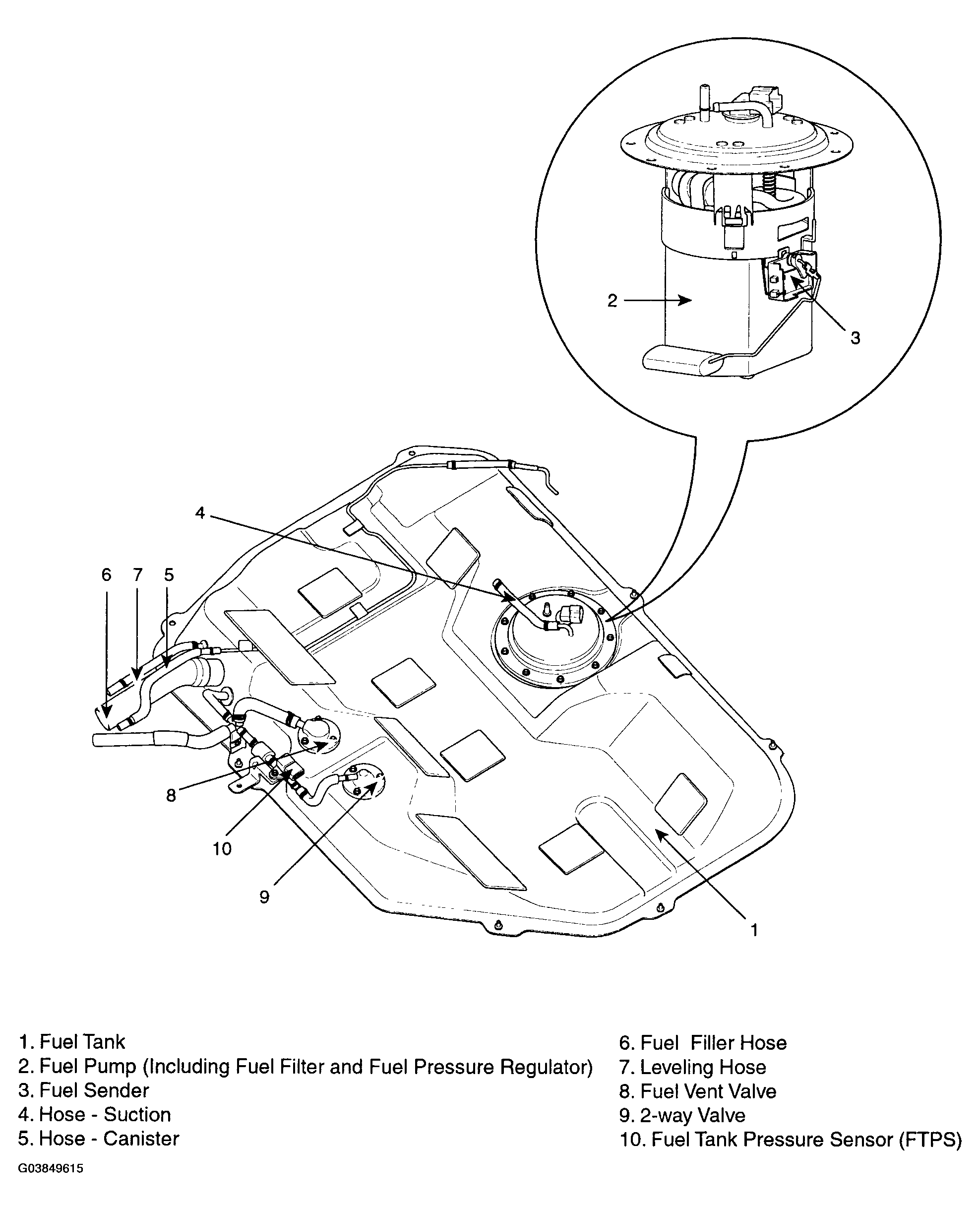

Fig 1: Identifying Components Of Fuel Delivery System
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
