Front Strut Assembly: Inspection

1. Check the strut insulator bearing for wear or damage.
2. Check rubber parts for damage or deterioration.
3. Check the coil spring for sagging and weakness.
4. Check the shock absorber for abnormal resistance or unusual sound.
   Fig 1: Inspecting Shock Absorber For Abnormal Resistance Or Unusual Sound

   Courtesy of HYUNDAI MOTOR CO.

DISPOSAL

1. Fully extend the shock absorber rod.
2. Drill a hole on the A section to remove gas from the cylinder.
   CAUTION: The gas coming out is harmless, but be careful of chips that may fly when drilling.
   Be sure to wear face shield and safety goggles.

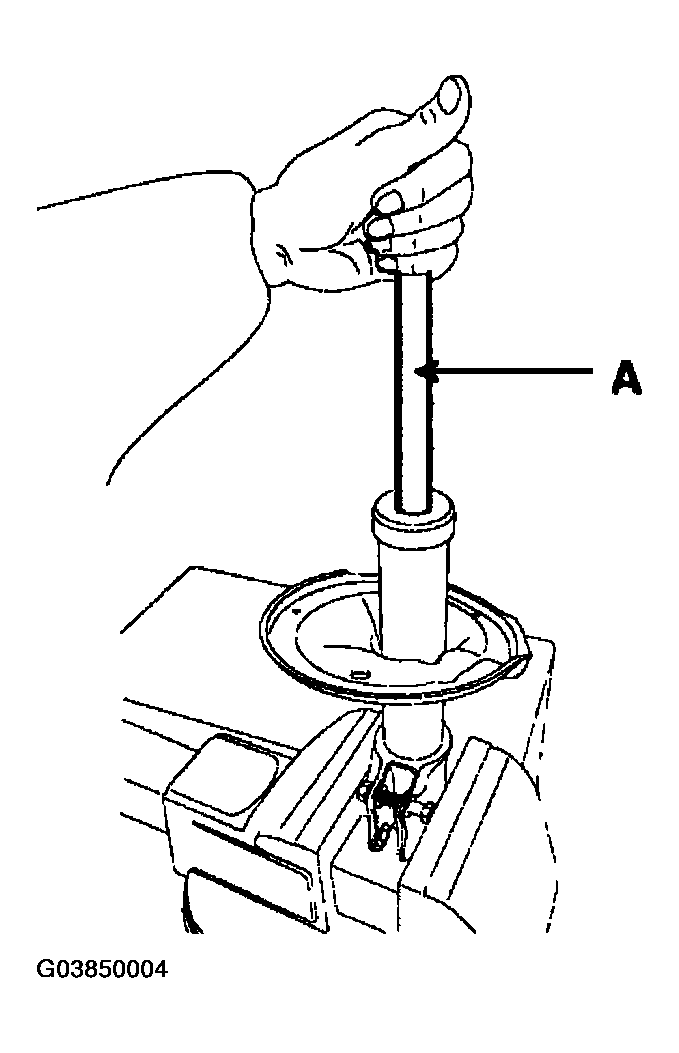

   Fig 2: Identifying "A" Section To Remove Gas From Cylinder

   Courtesy of HYUNDAI MOTOR CO.
