Pinout Values and Diagnostic Parameters
ENGINE CONTROL MODULE (ECM)ECM Harness Connector:

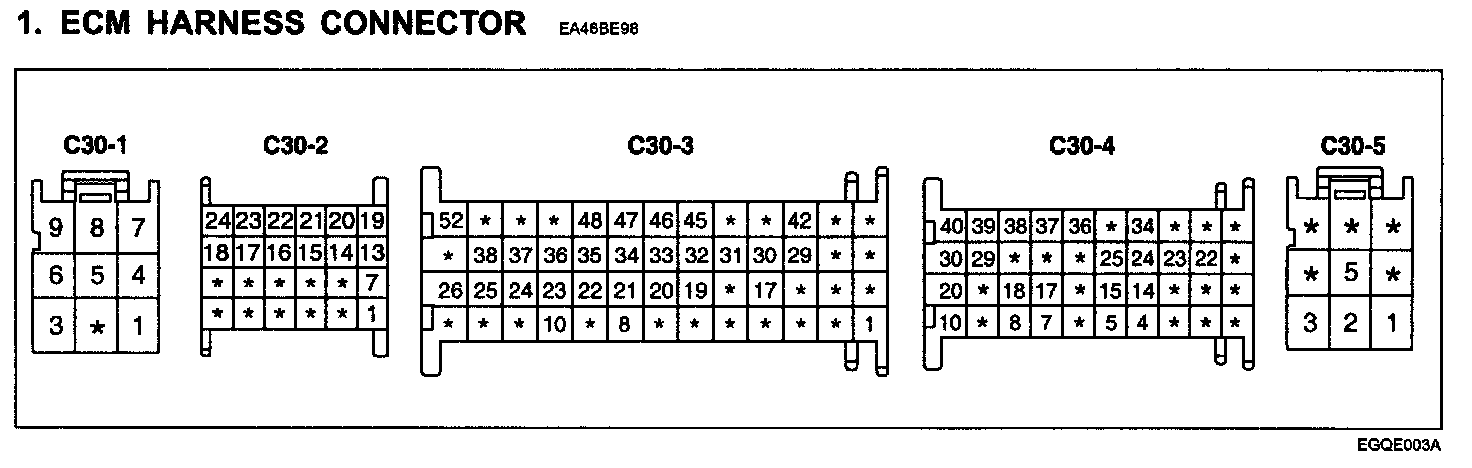

1. ECM HARNESS CONNECTOR
2. ECM TERMINAL FUNCTION

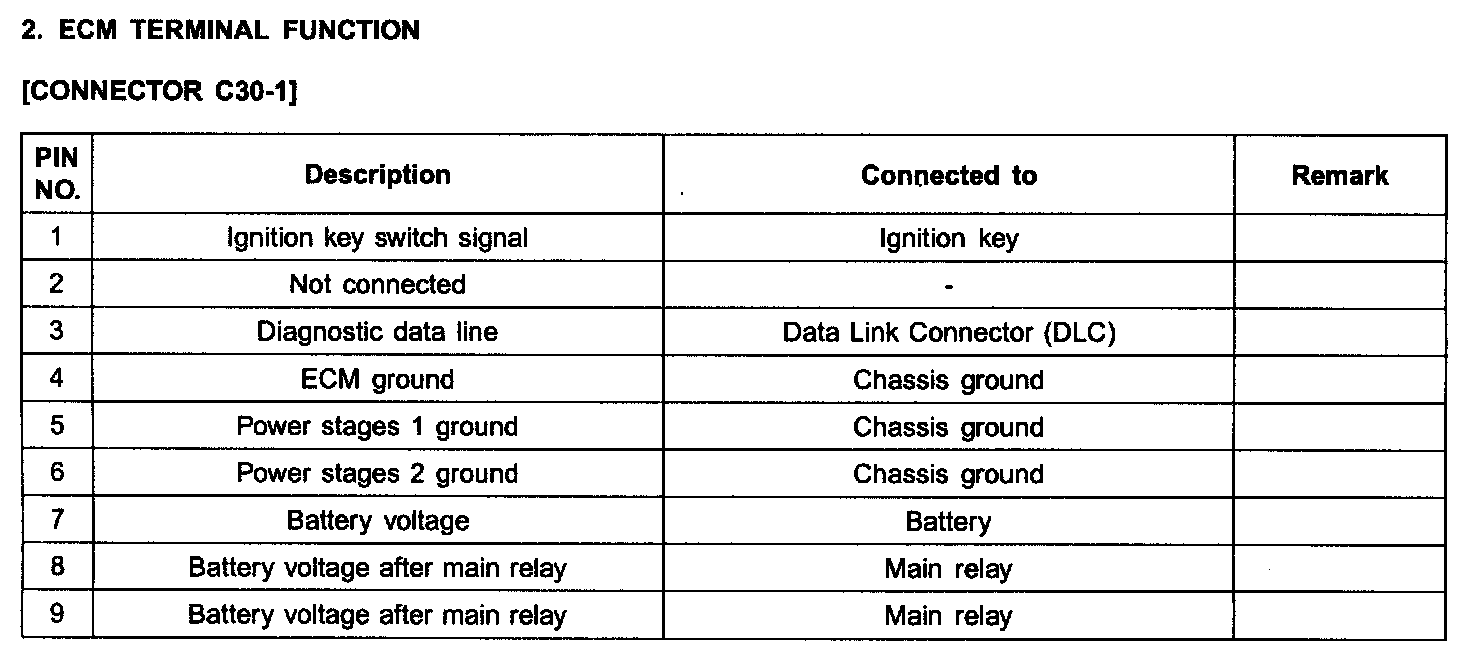

ECM Terminal Function - [Connector C30-1]:
[Connector C30-1]

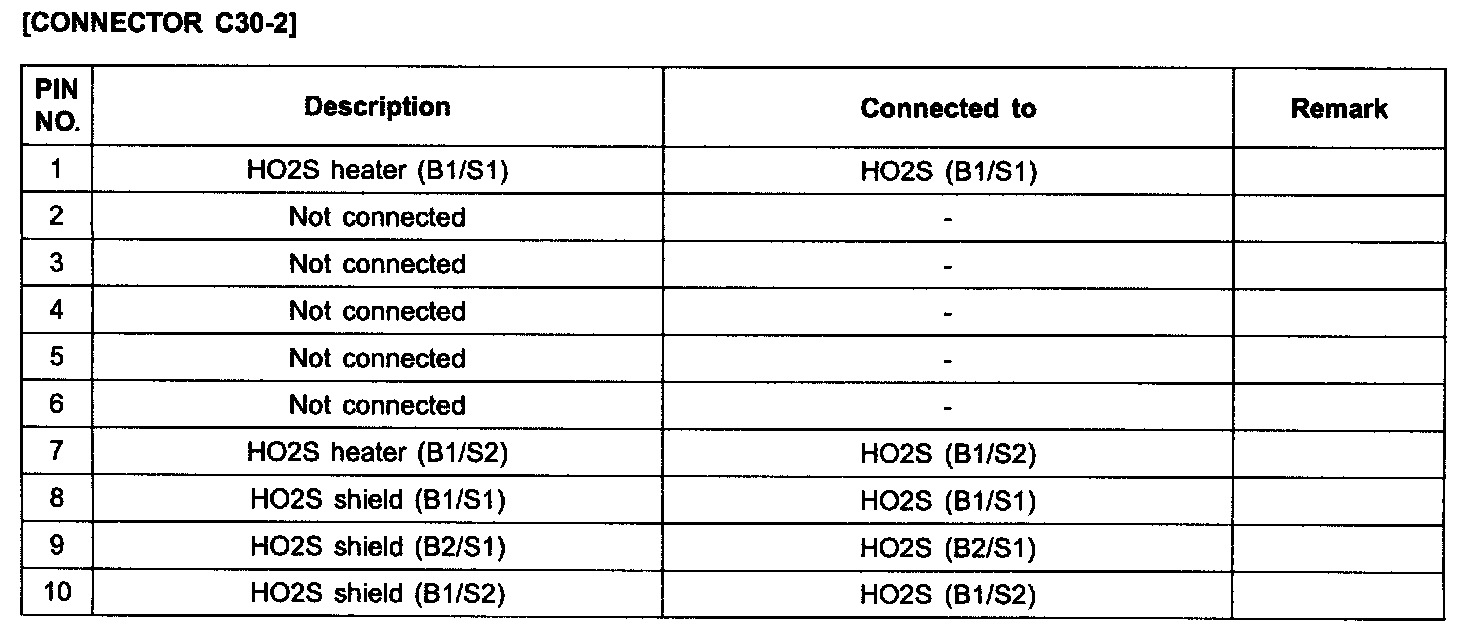

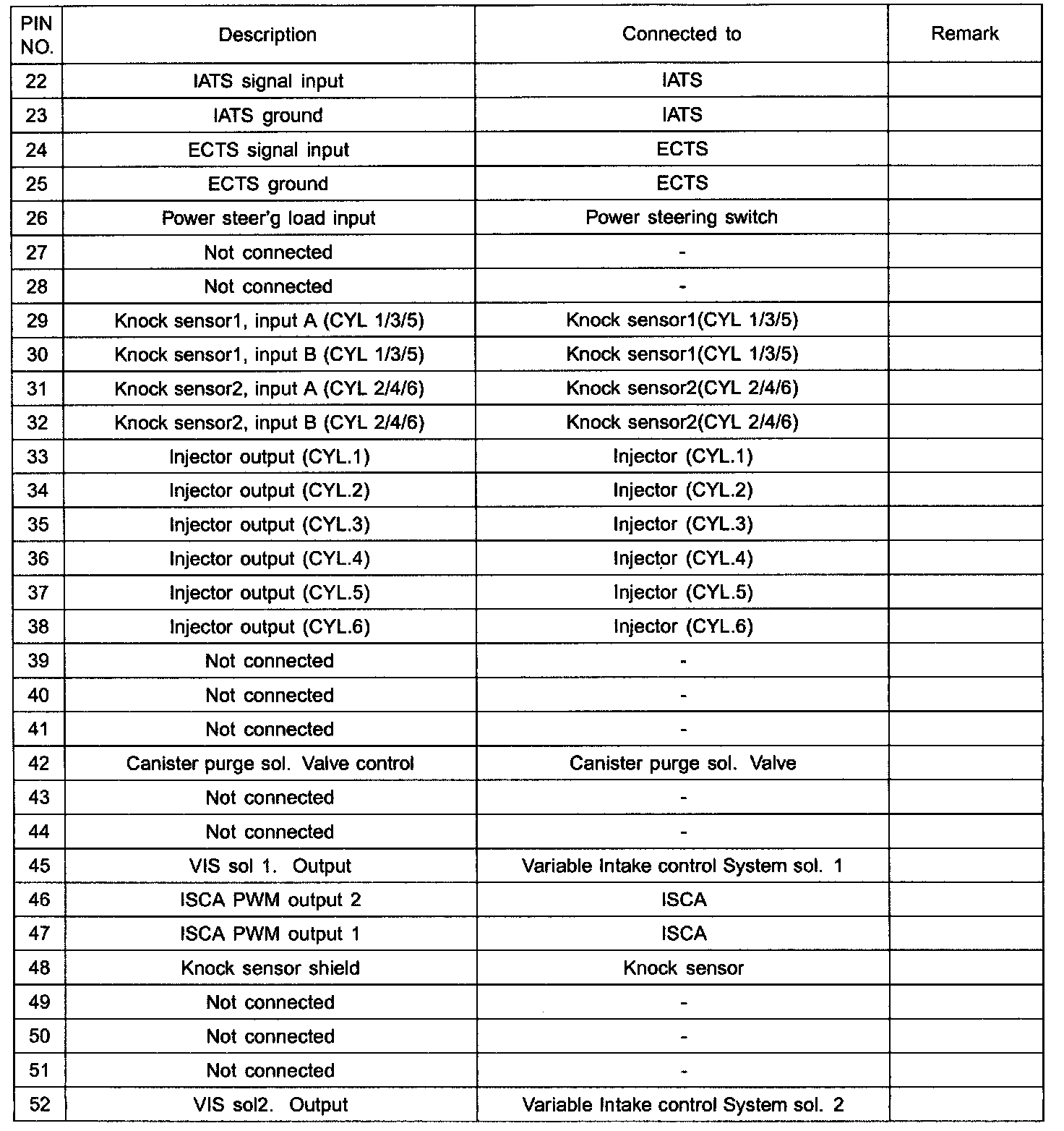

ECM Terminal Function - [Connector C30-2] (Part 1):

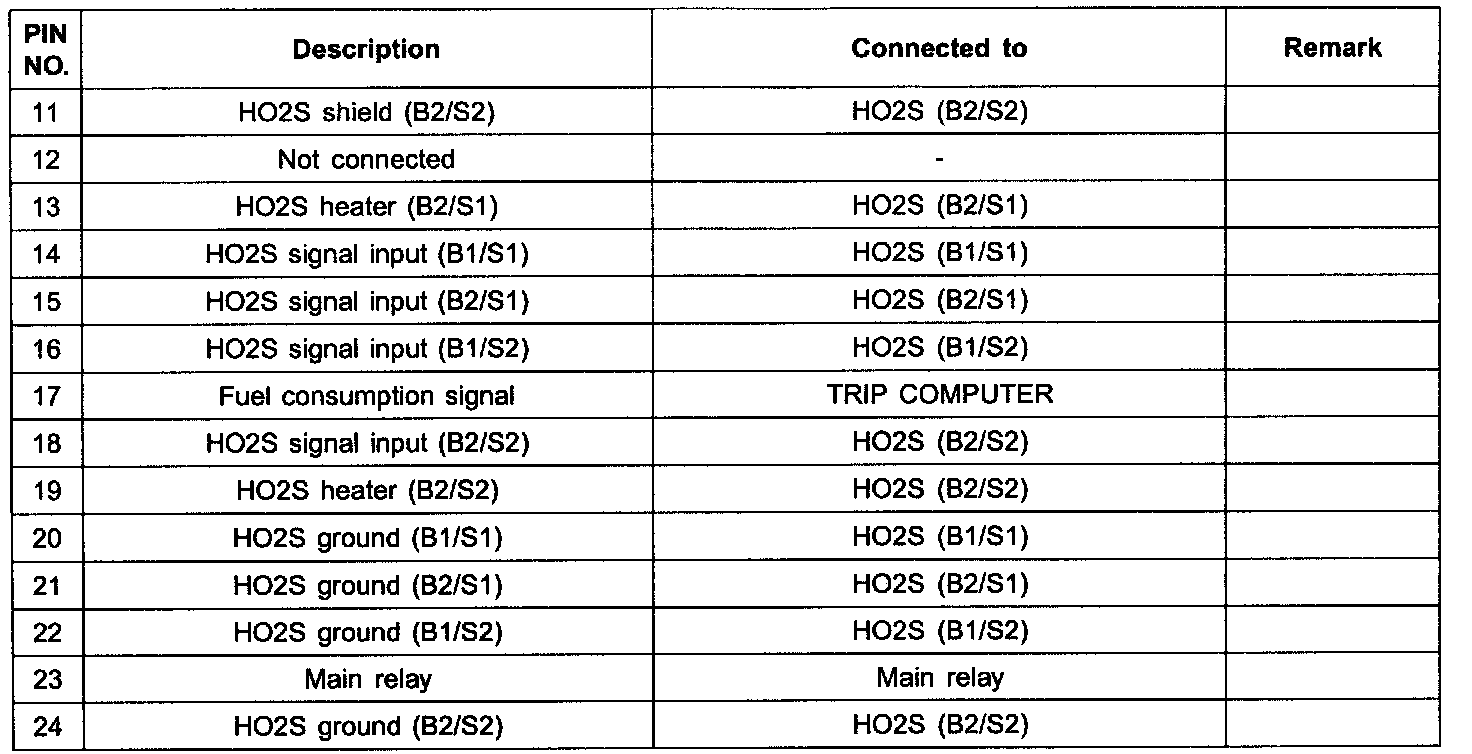

ECM Terminal Function - [Connector C30-2] (Part 2):
[Connector C30-2]

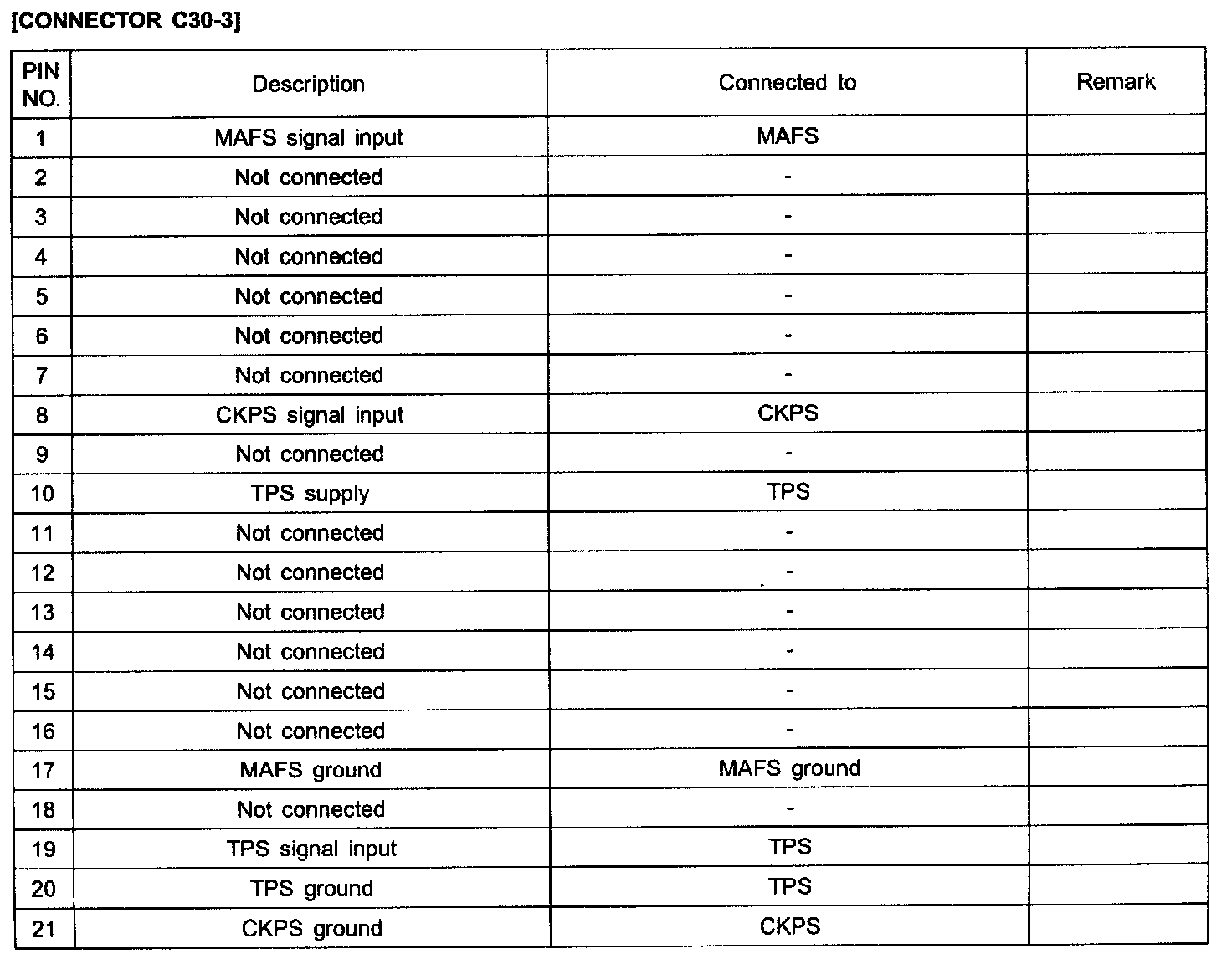

ECM Terminal Function - [Connector C30-3] (Part 1):
ECM Terminal Function - [Connector C30-3] (Part 2):
[Connector C30-3]

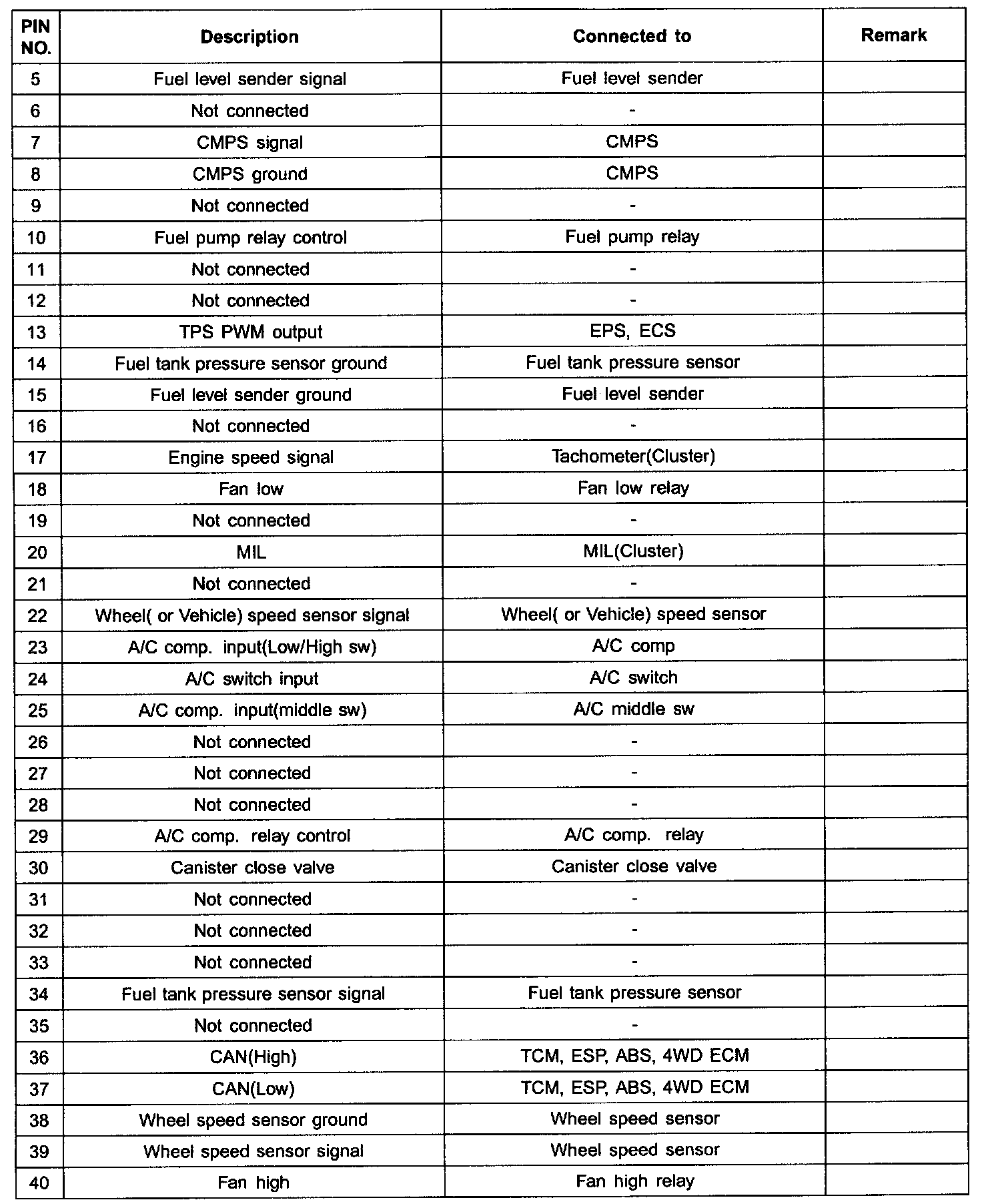

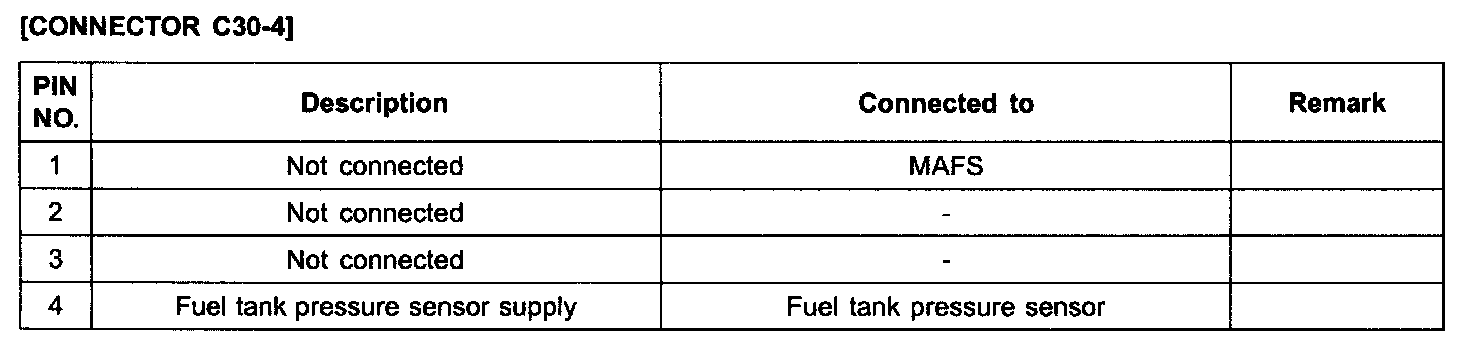

ECM Terminal Function - [Connector C30-4] (Part 1):
ECM Terminal Function - [Connector C30-4] (Part 2):
[Connector C30-4]

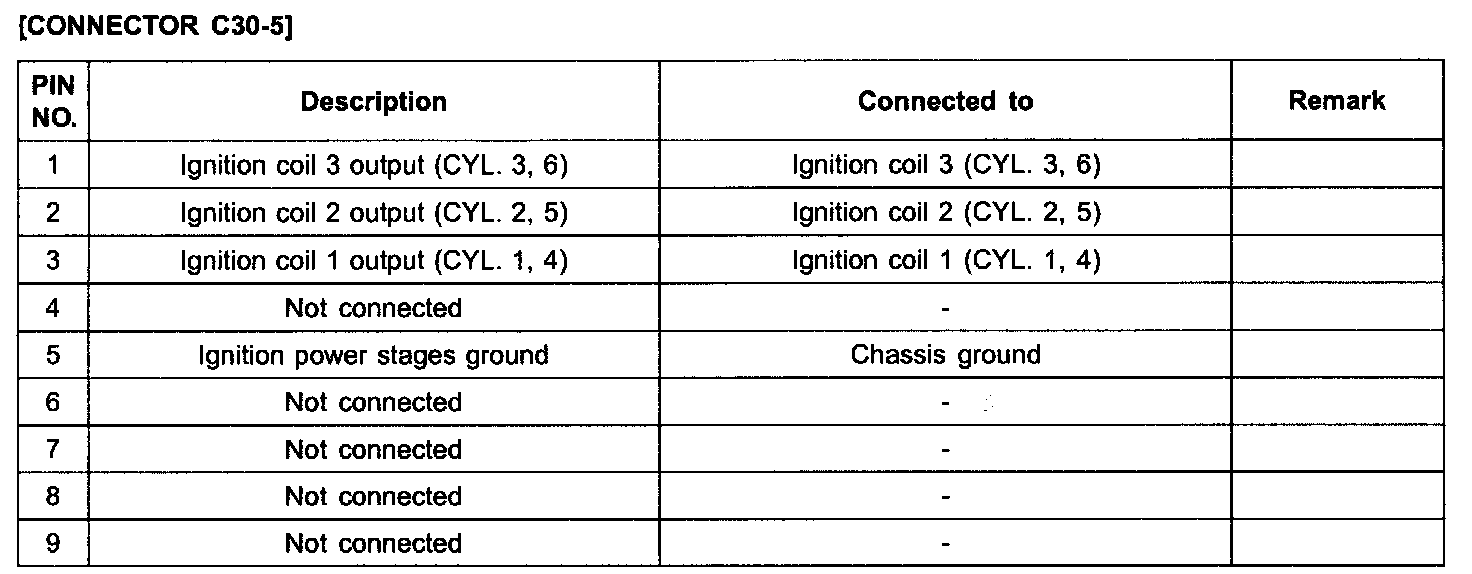

ECM Terminal Function - [Connector C30-5]:
[Connector C30-5]
3. ECM TERMINAL INPUT/OUTPUT SIGNAL

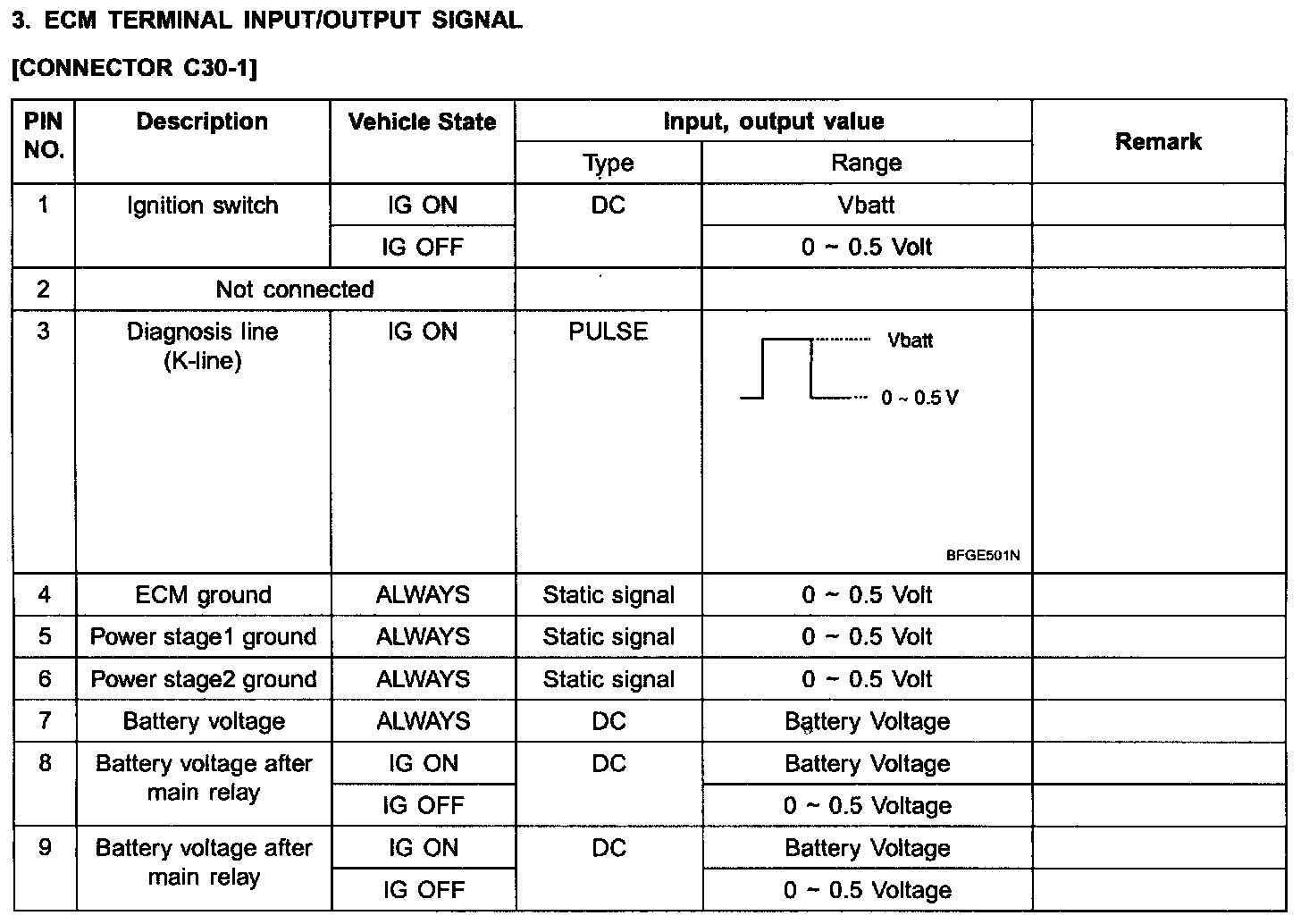

ECM Terminal Input/Output Signal [Connector C30-1]:
[Connector C30-1]

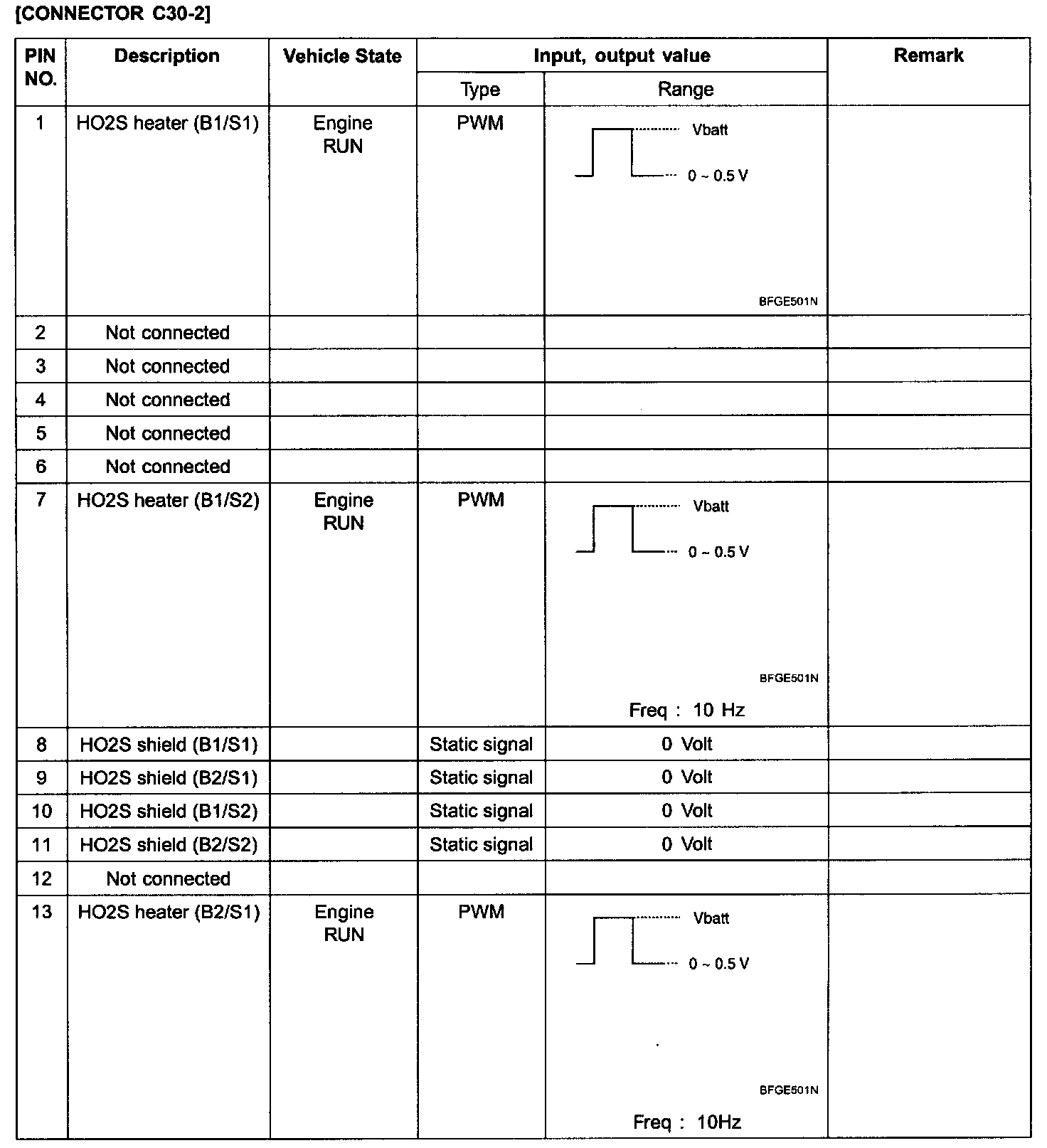

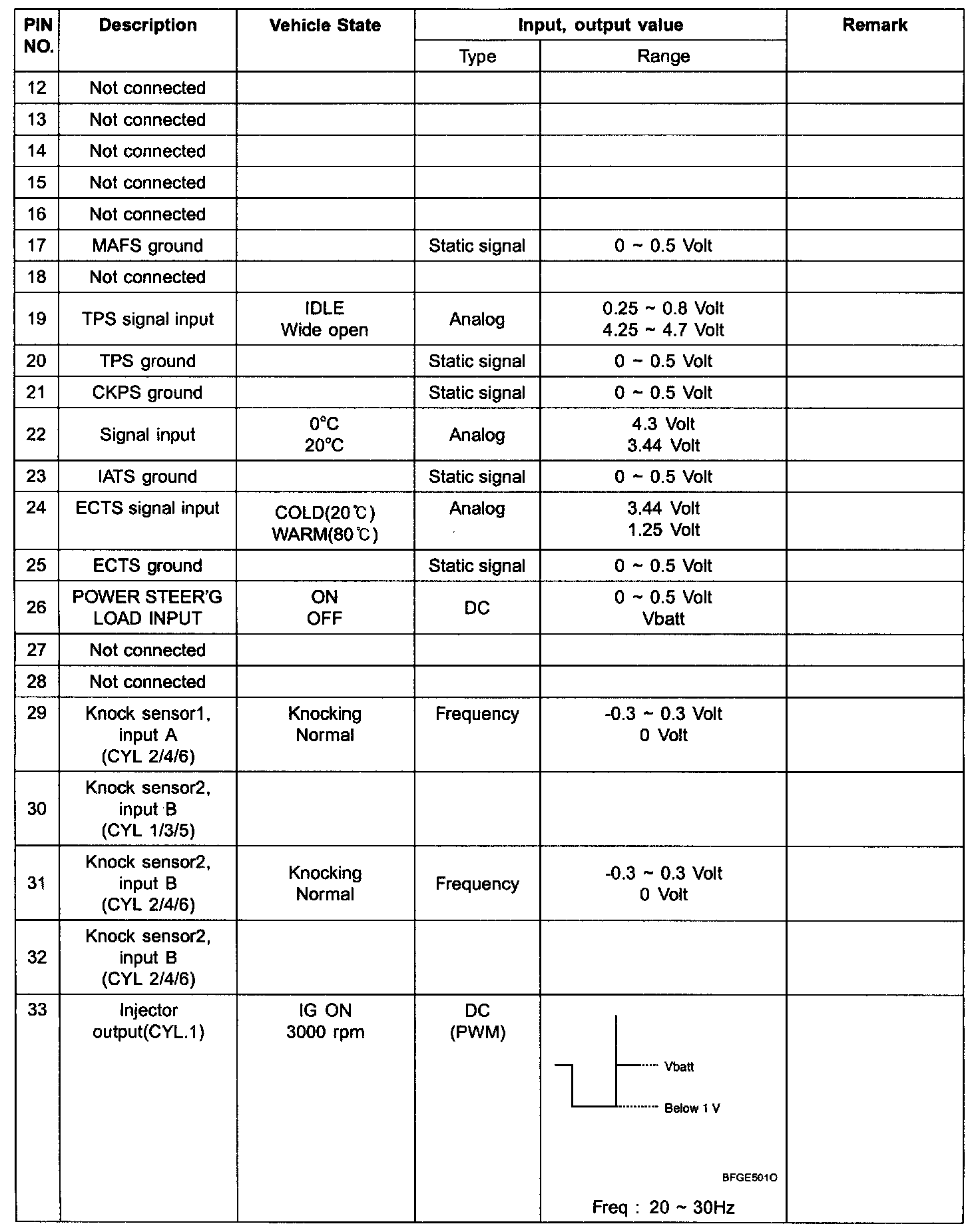

ECM Terminal Input/Output Signal [Connector C30-2] (Part 1):

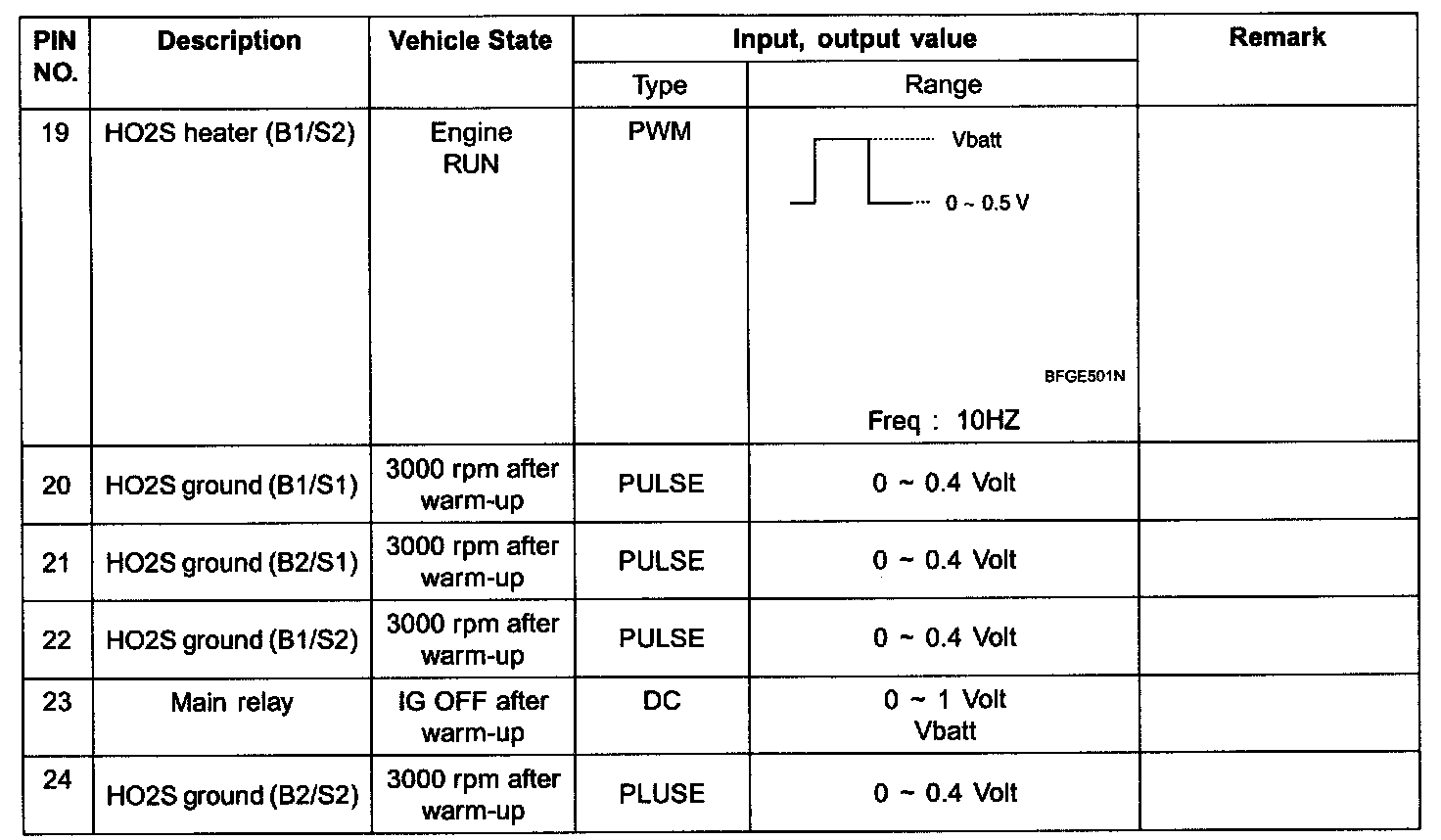

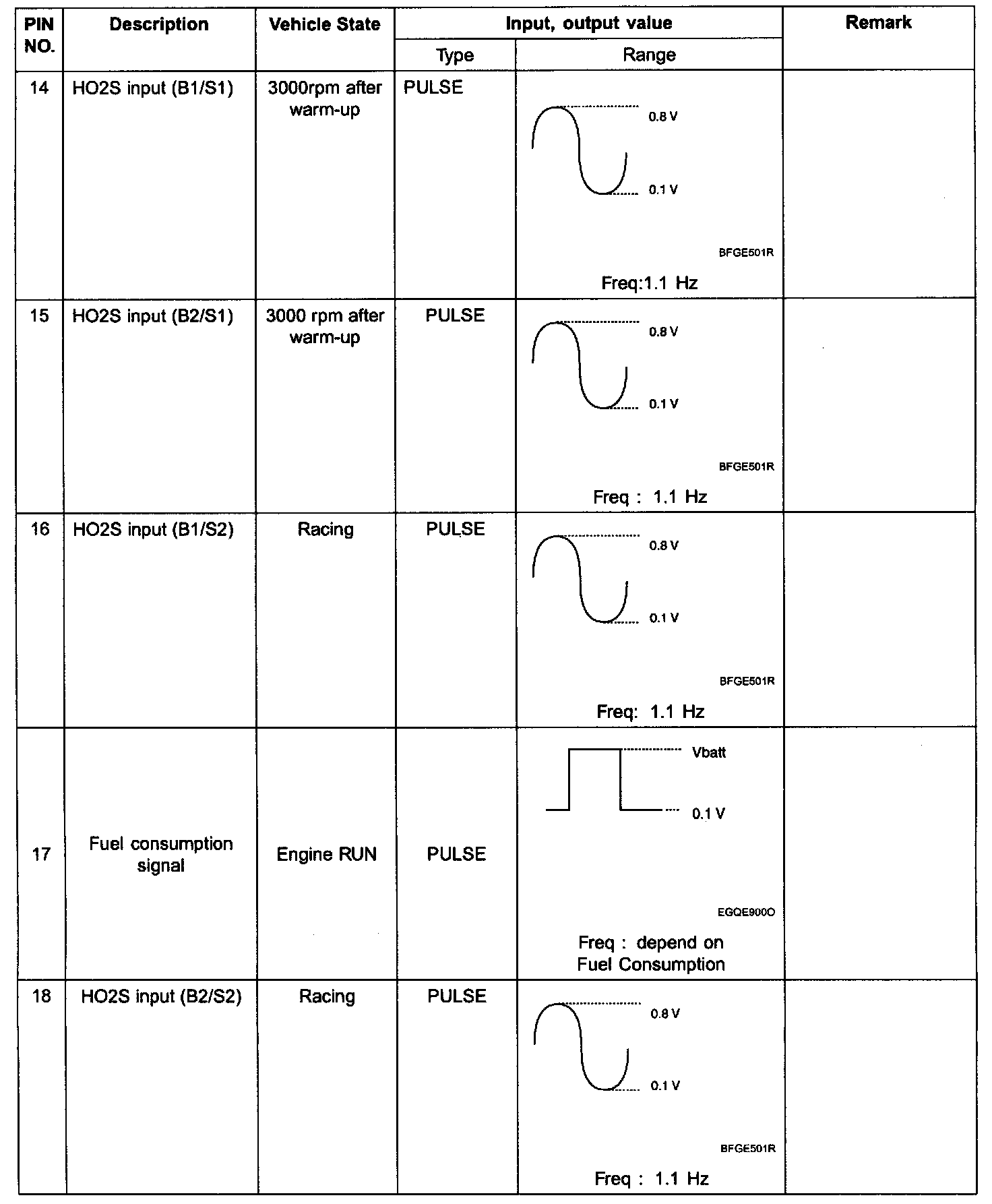

ECM Terminal Input/Output Signal [Connector C30-2] (Part 2):
ECM Terminal Input/Output Signal [Connector C30-2] (Part 3):
[Connector C30-2]

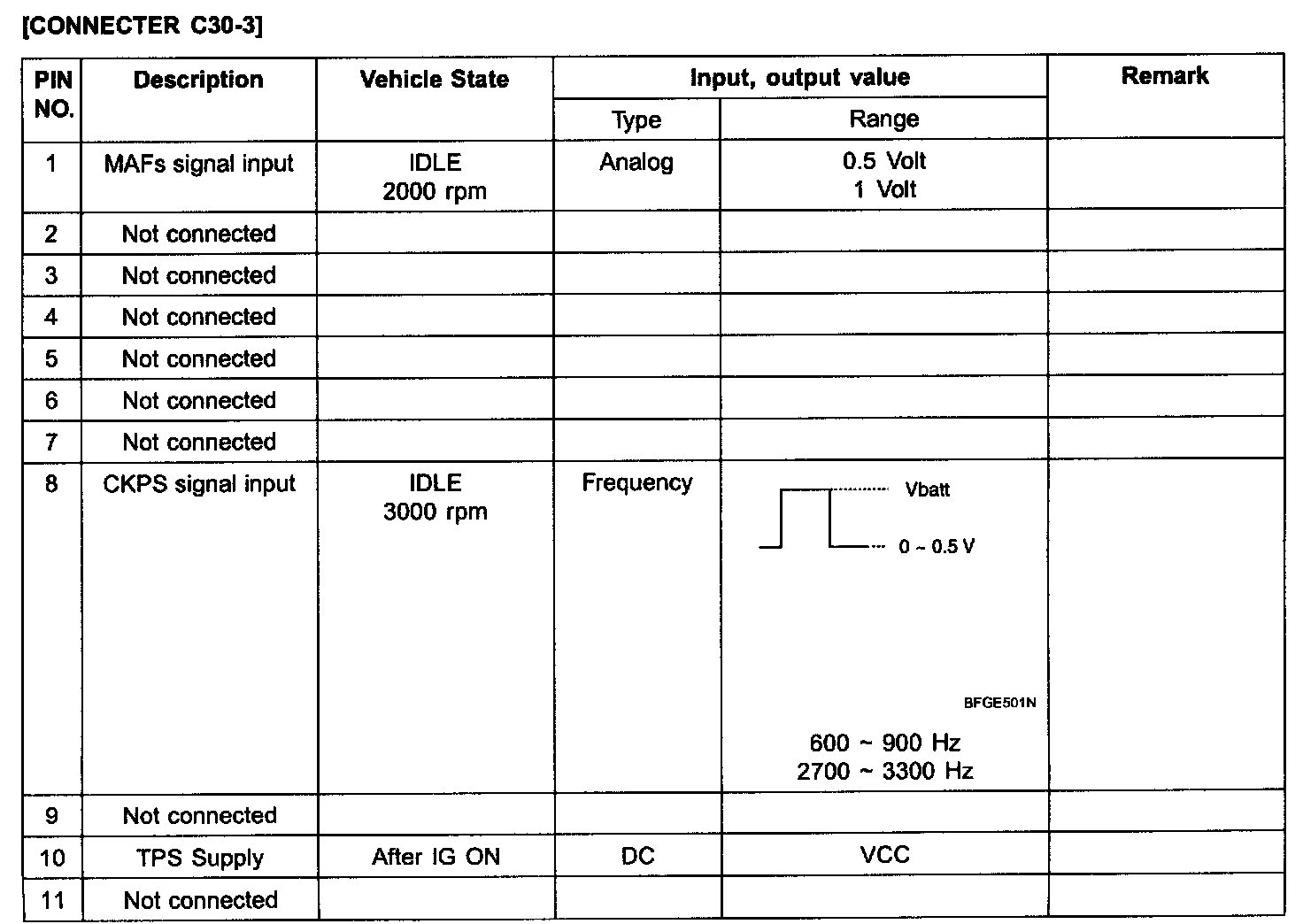

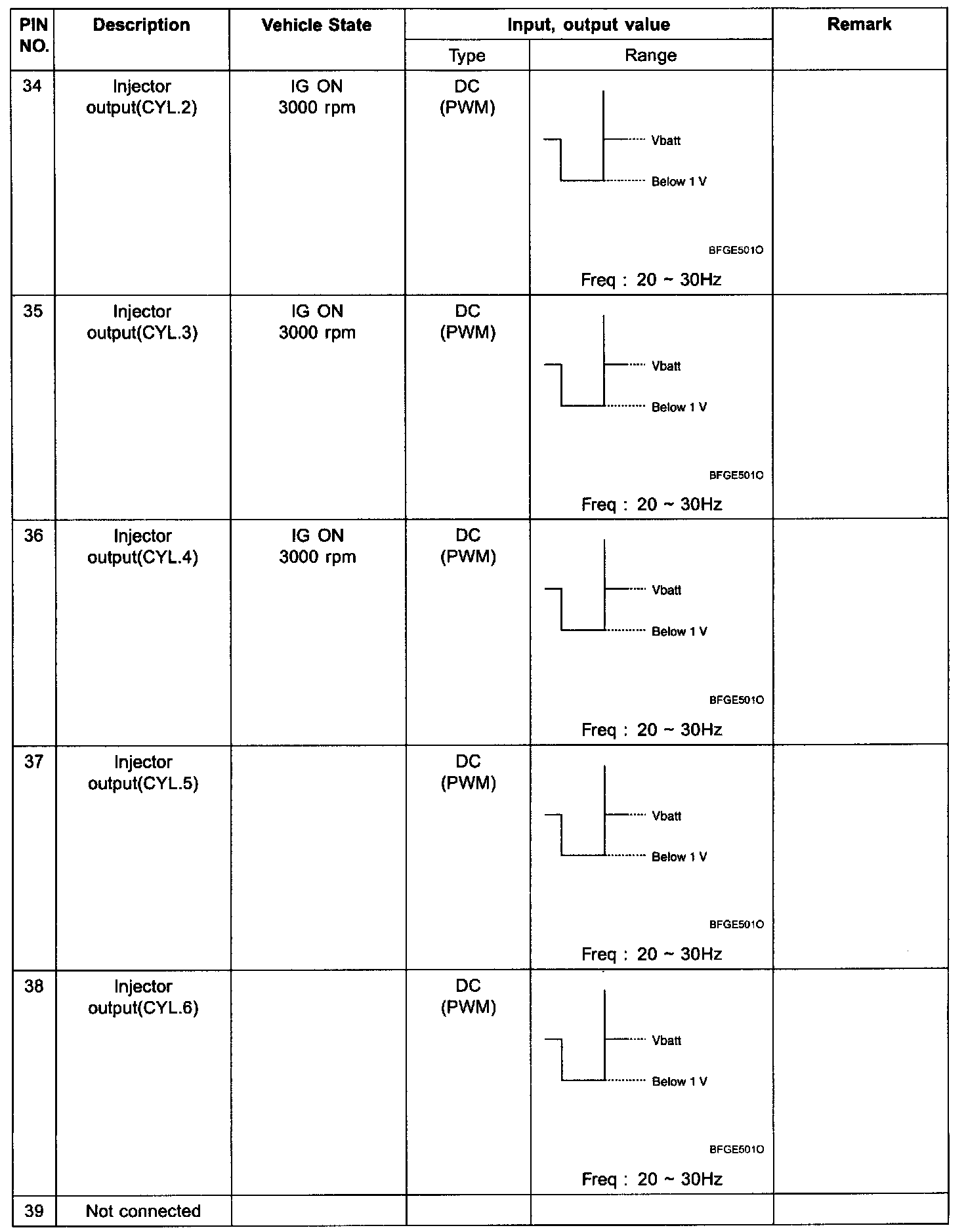

ECM Terminal Input/Output Signal [Connector C30-3] (Part 1):
ECM Terminal Input/Output Signal [Connector C30-3] (Part 2):
ECM Terminal Input/Output Signal [Connector C30-3] (Part 3):

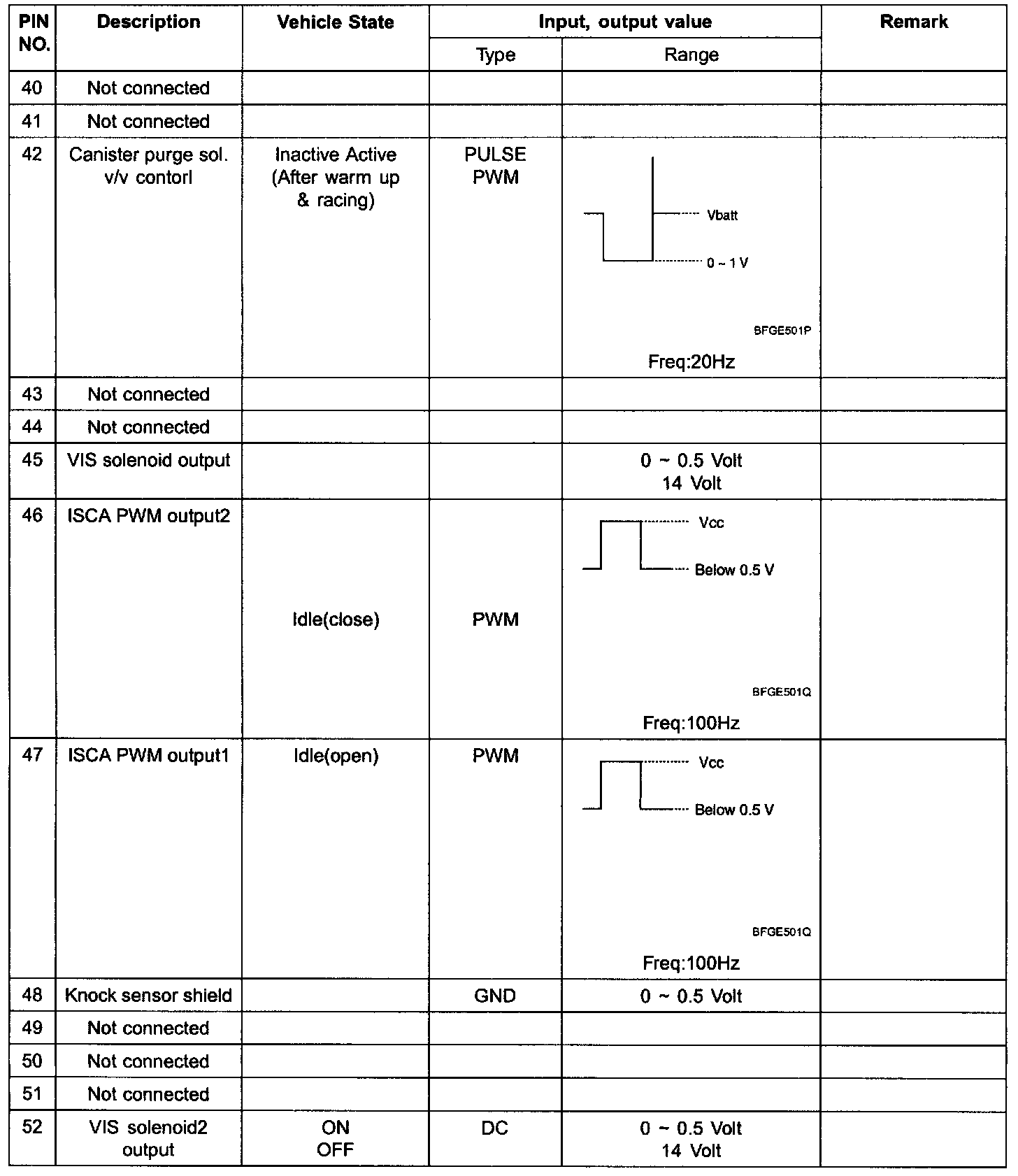

ECM Terminal Input/Output Signal [Connector C30-3] (Part 4):
[Connector C30-3]

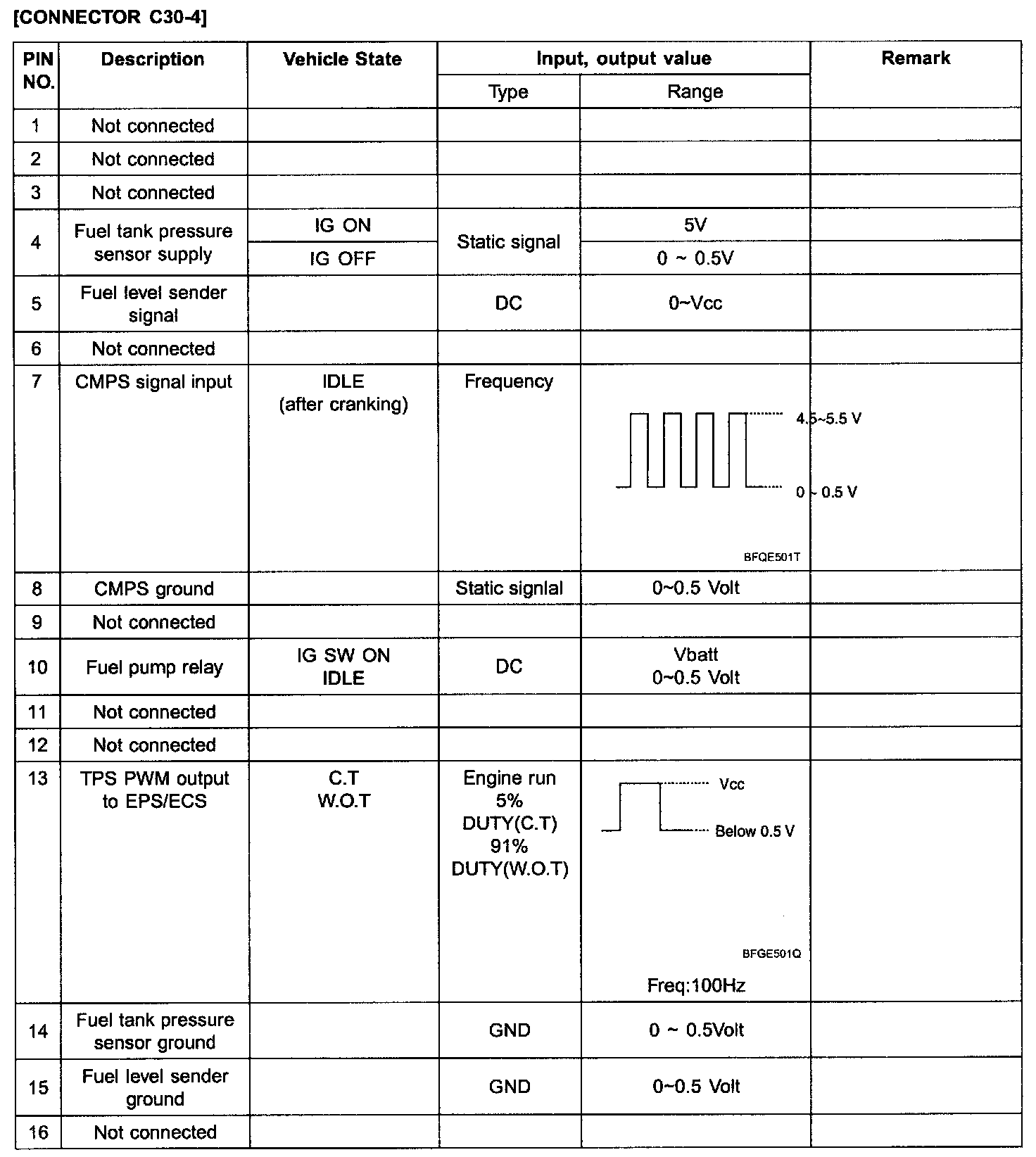

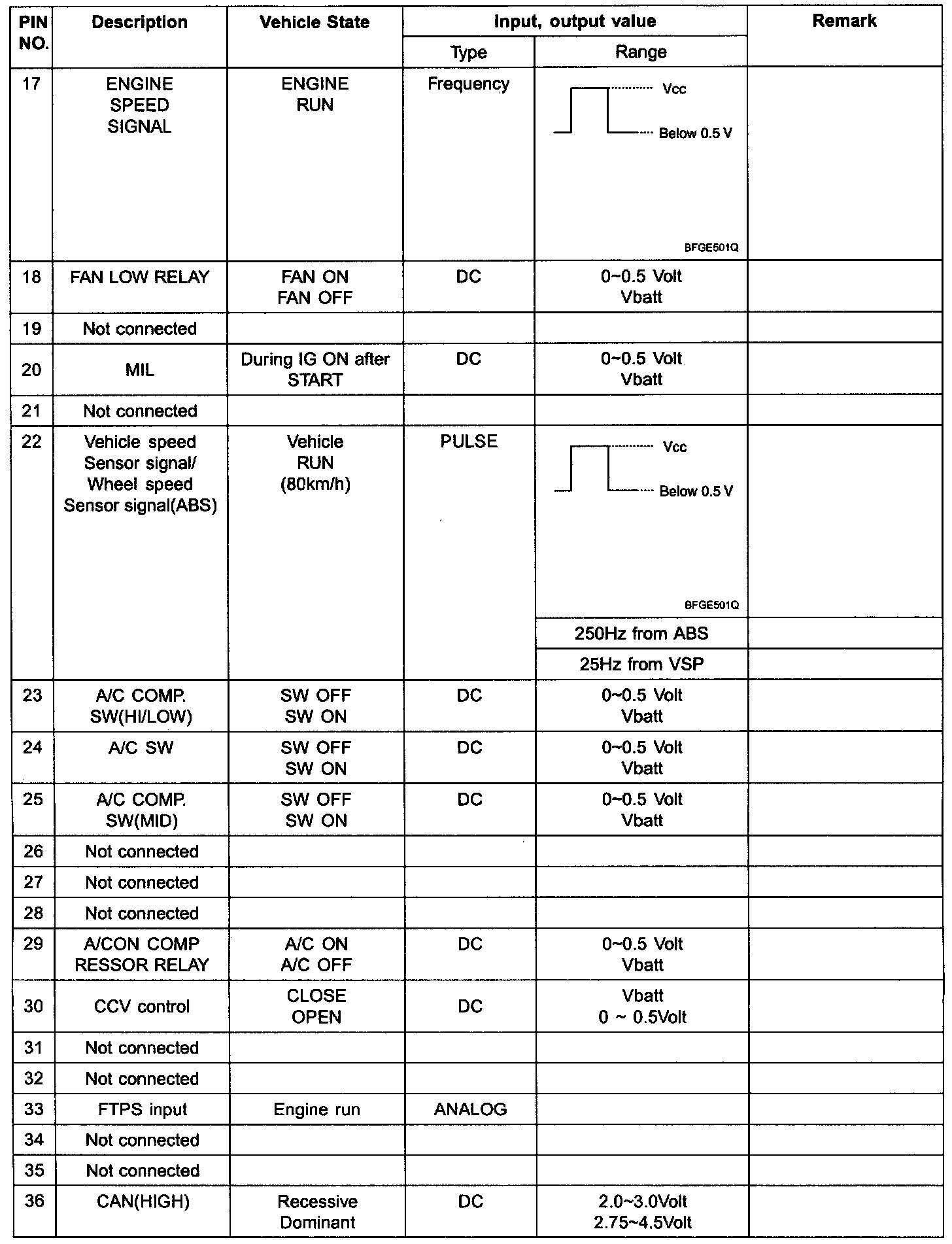

ECM Terminal Input/Output Signal [Connector C30-4] (Part 1):

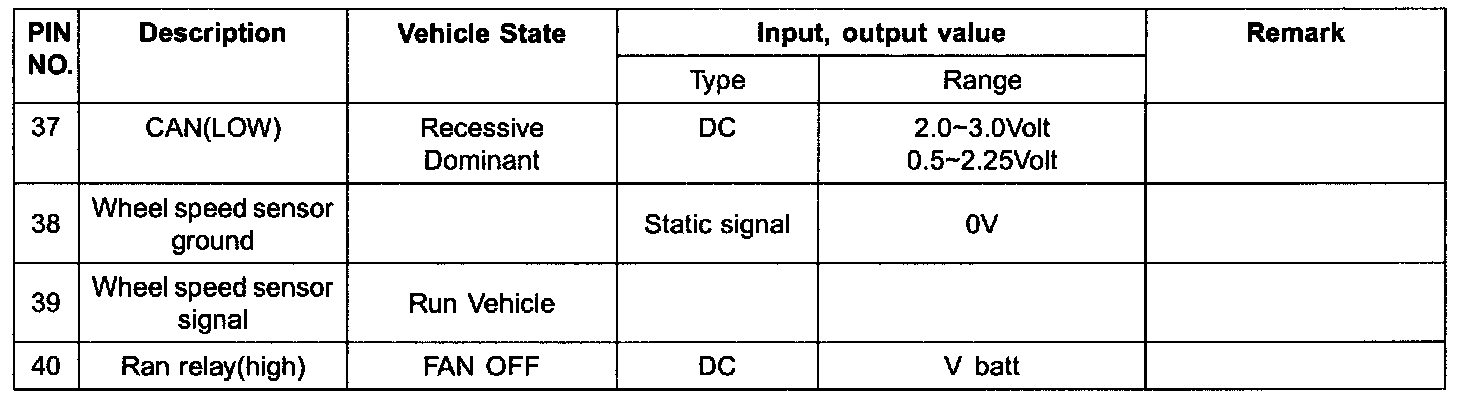

ECM Terminal Input/Output Signal [Connector C30-4] (Part 2):
ECM Terminal Input/Output Signal [Connector C30-4] (Part 3):
[Connector C30-4]

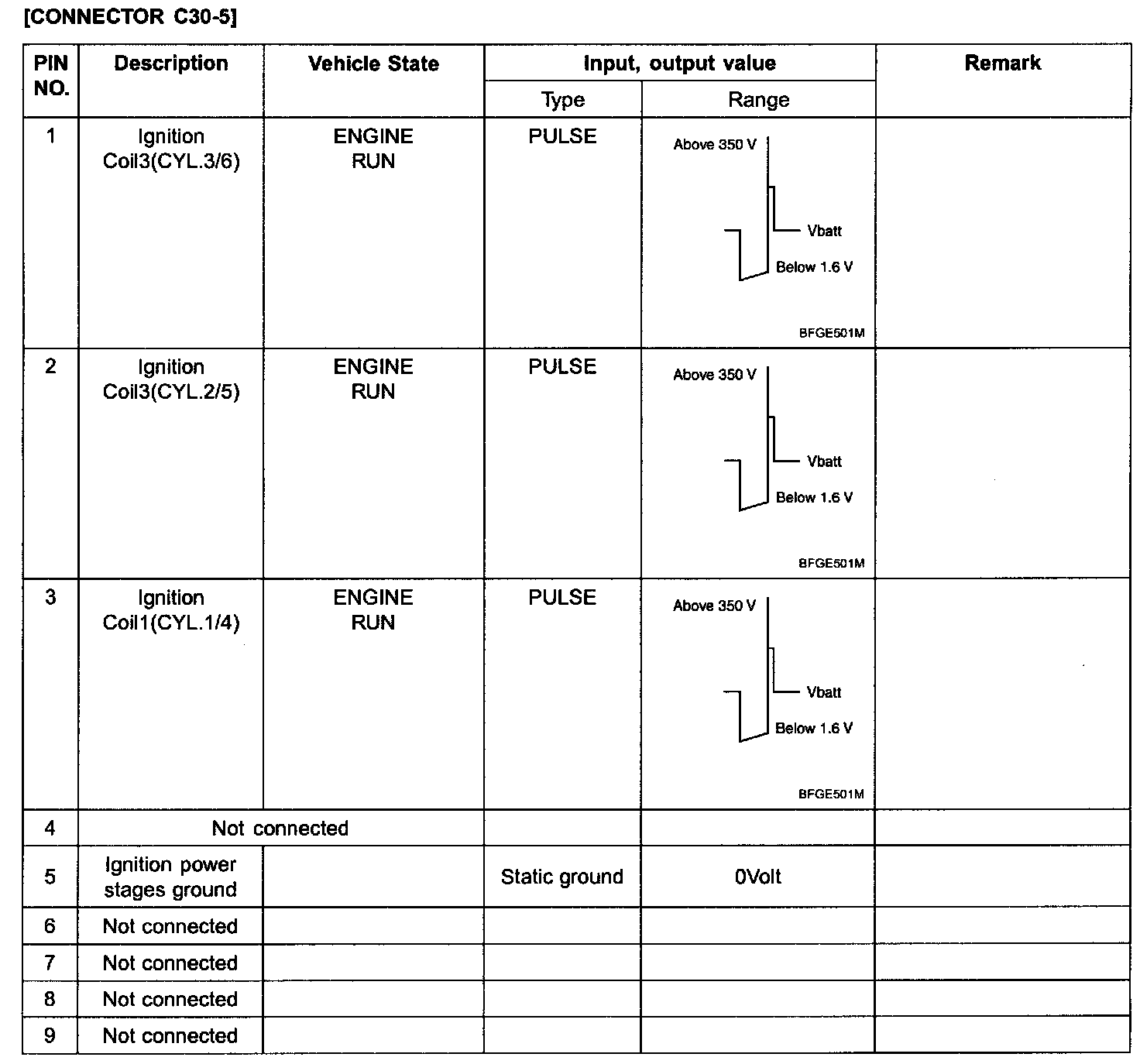

ECM Terminal Input/Output Signal [Connector C30-5]:
[Connector C30-5]
