Schematic Diagram

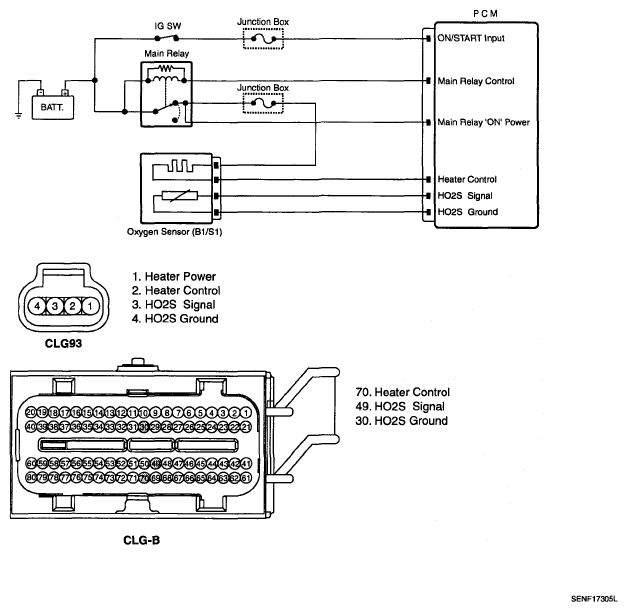

Fig 1: HO2S Heater Control Circuit (Bank 1/Sensor 1) - Schematic Diagram
G05329813Courtesy of HYUNDAI MOTOR CO.
