Service Standard

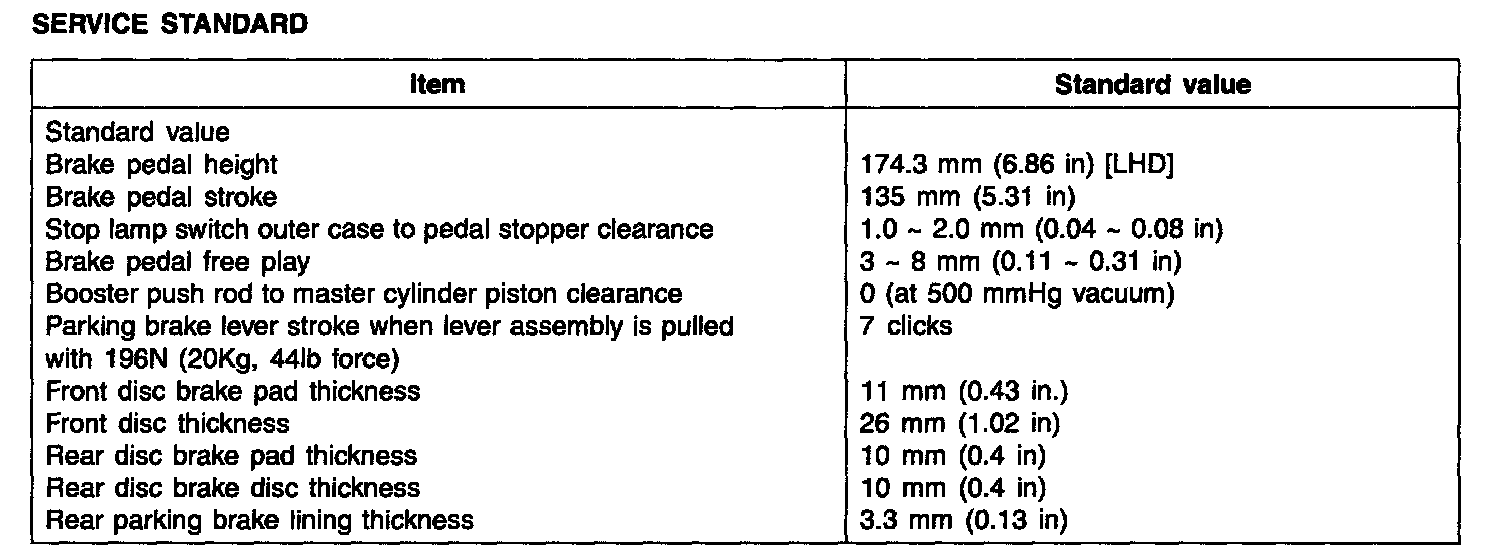

SERVICE STANDARD





Front
Brake disc thickness
Standard Value: 26.0 mm (1.02 in)
Limit: 24.0 mm (0.94 in)
Brake disc run out
Limit: 0.05 mm (0.0020 in) or less

Rear
Rear brake disc thickness
Standard Value: 10.0 mm (0.39 in)
Limit: 8.4 mm (0.33 in)
Brake disc run out
Limit: 0.05 mm (0.0020 in) or less
