Engine Controls

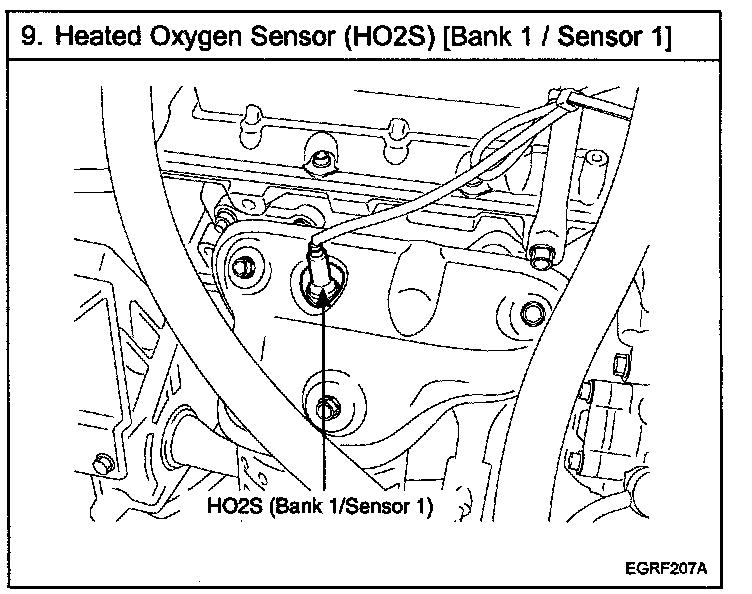

Bank 1 / Sensor 1:

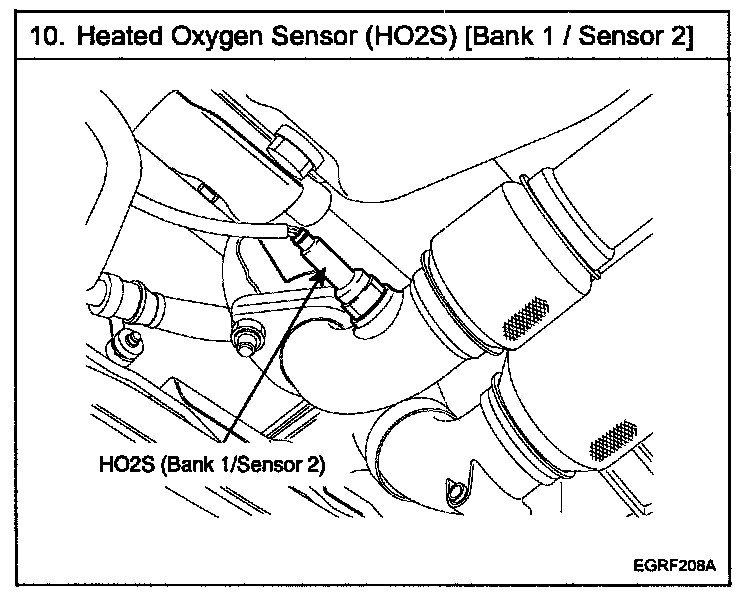

Bank 1 / Sensor 2:

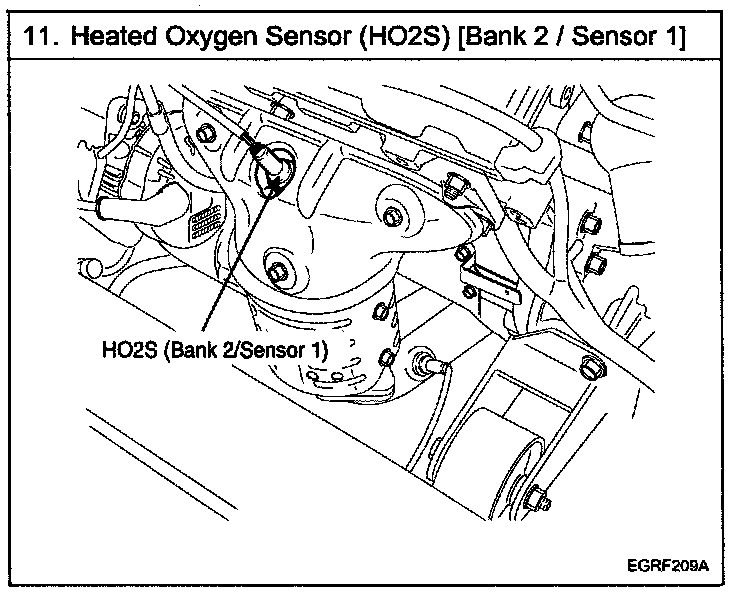

Bank 2 / Sensor 1:



Bank 2 / Sensor 2:



Overview:
