Connector Views

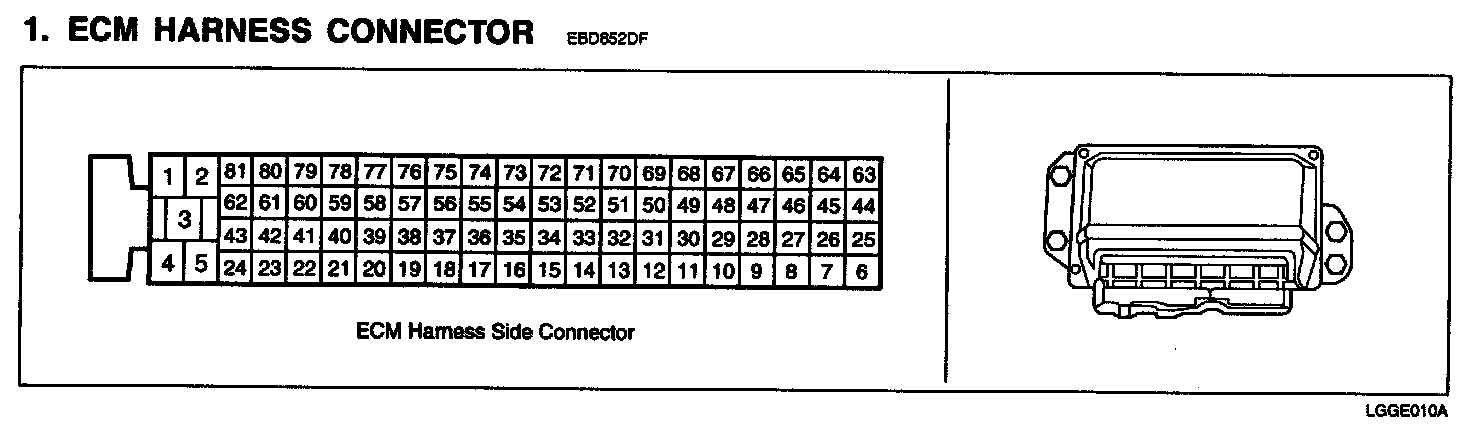

Engine Control Module (ECM)ECM HARNESS CONNECTOR
Engine Control Module (ECM) ECM Harness Connector:
ECM TERMINAL FUNCTION

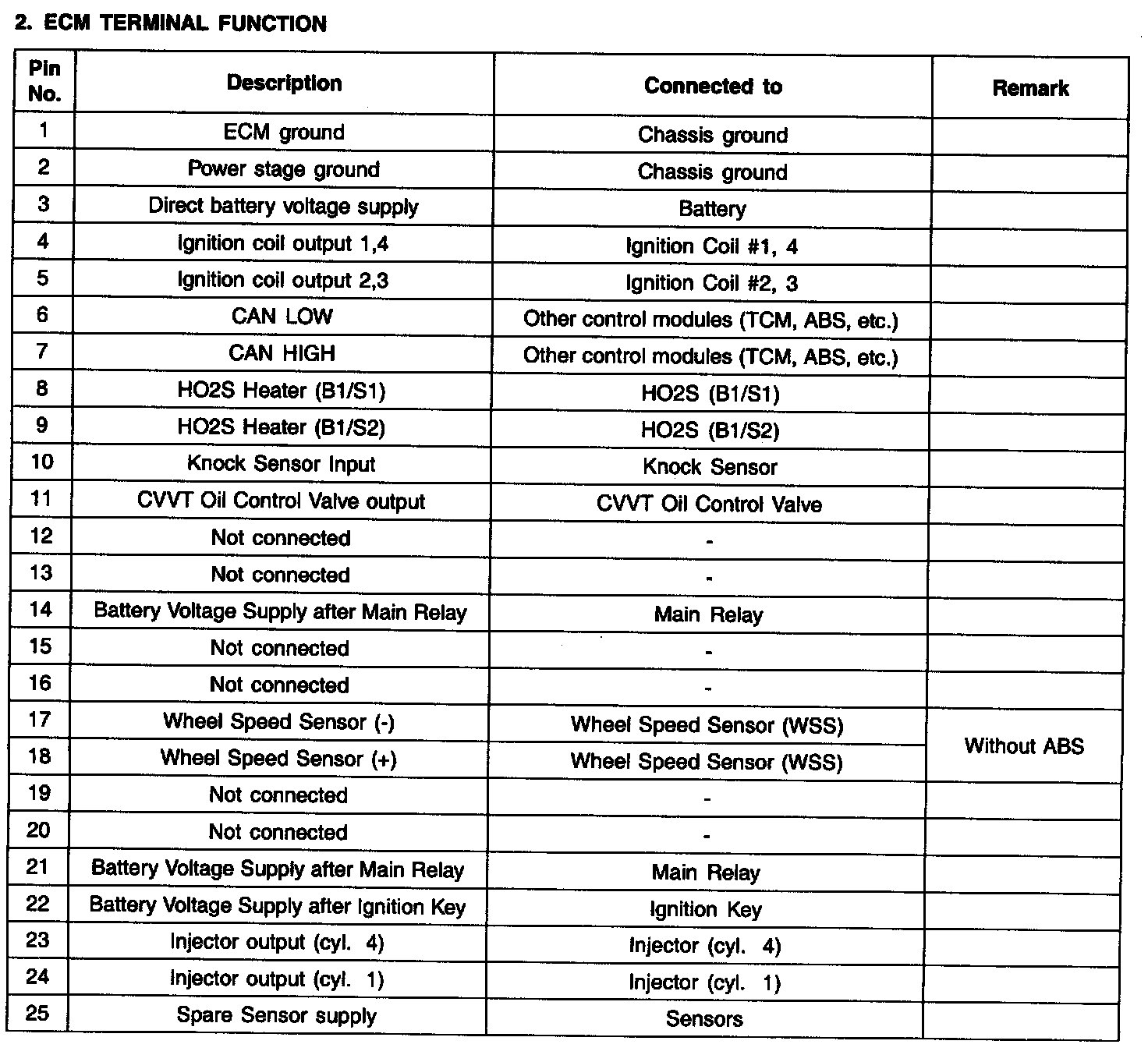

Engine Control Module ECM Terminal Function (Part 1):

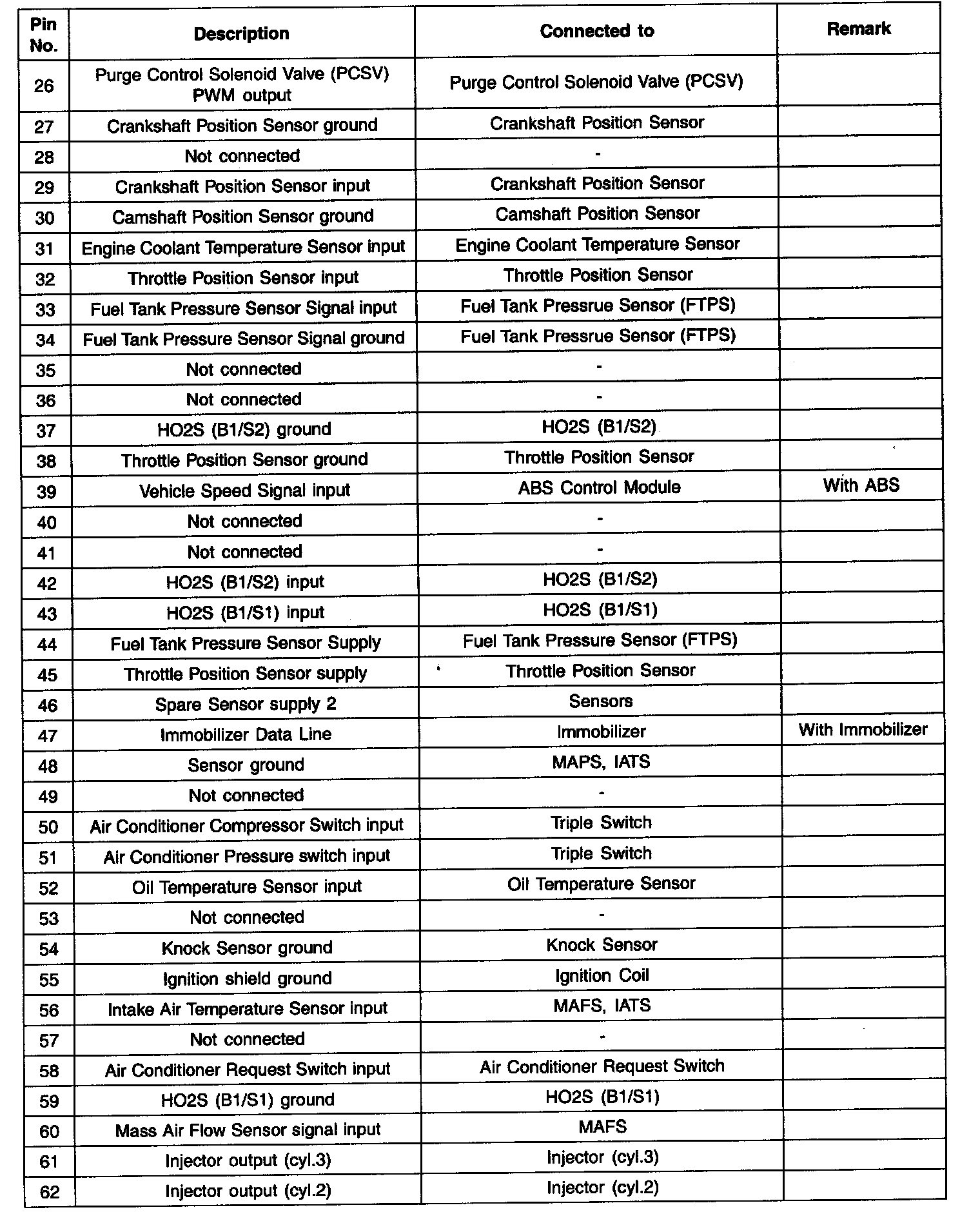

Engine Control Module ECM Terminal Function (Part 2):

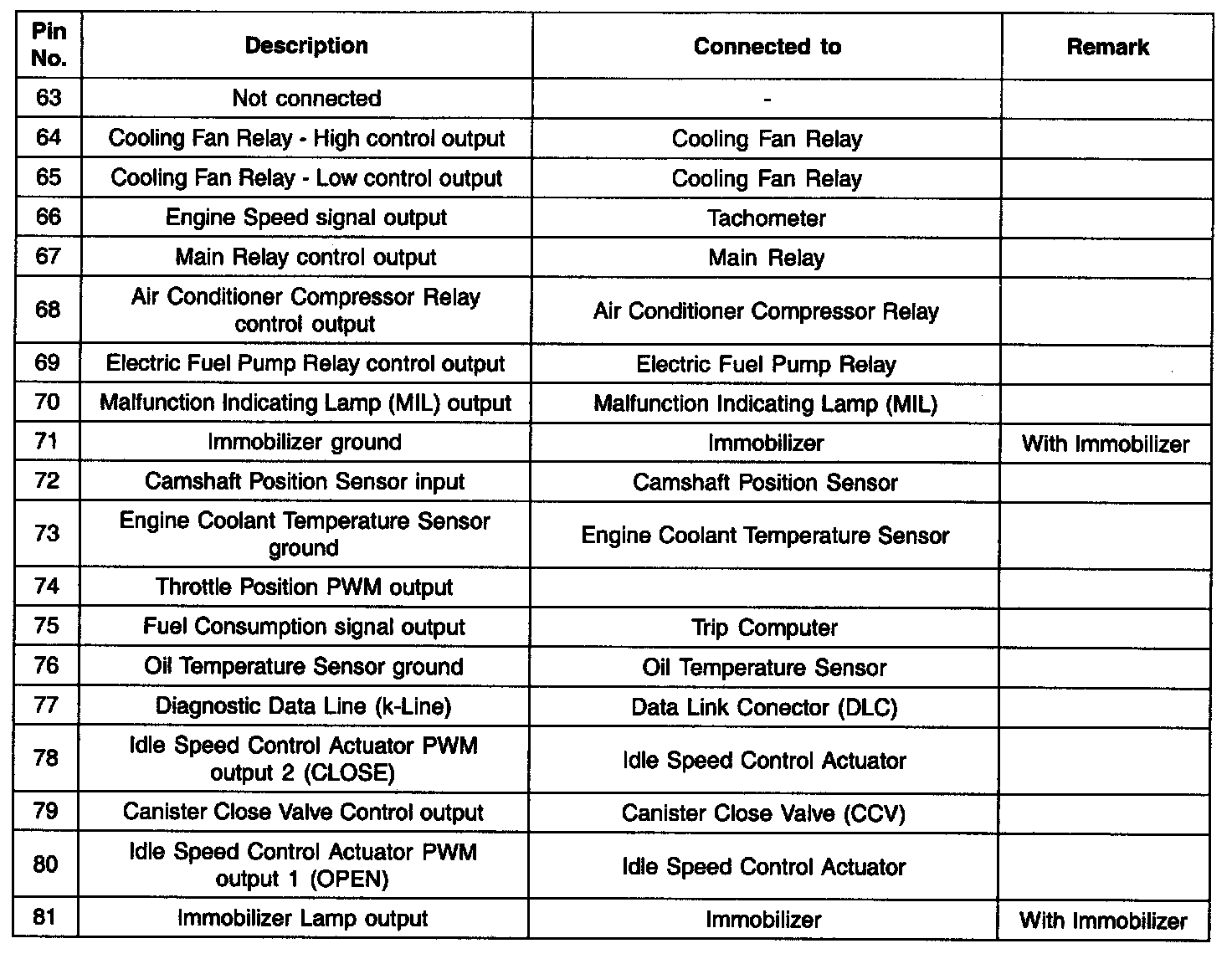

Engine Control Module ECM Terminal Function (Part 3):
ECM TERMINAL INPUT/OUTPUT SIGNAL

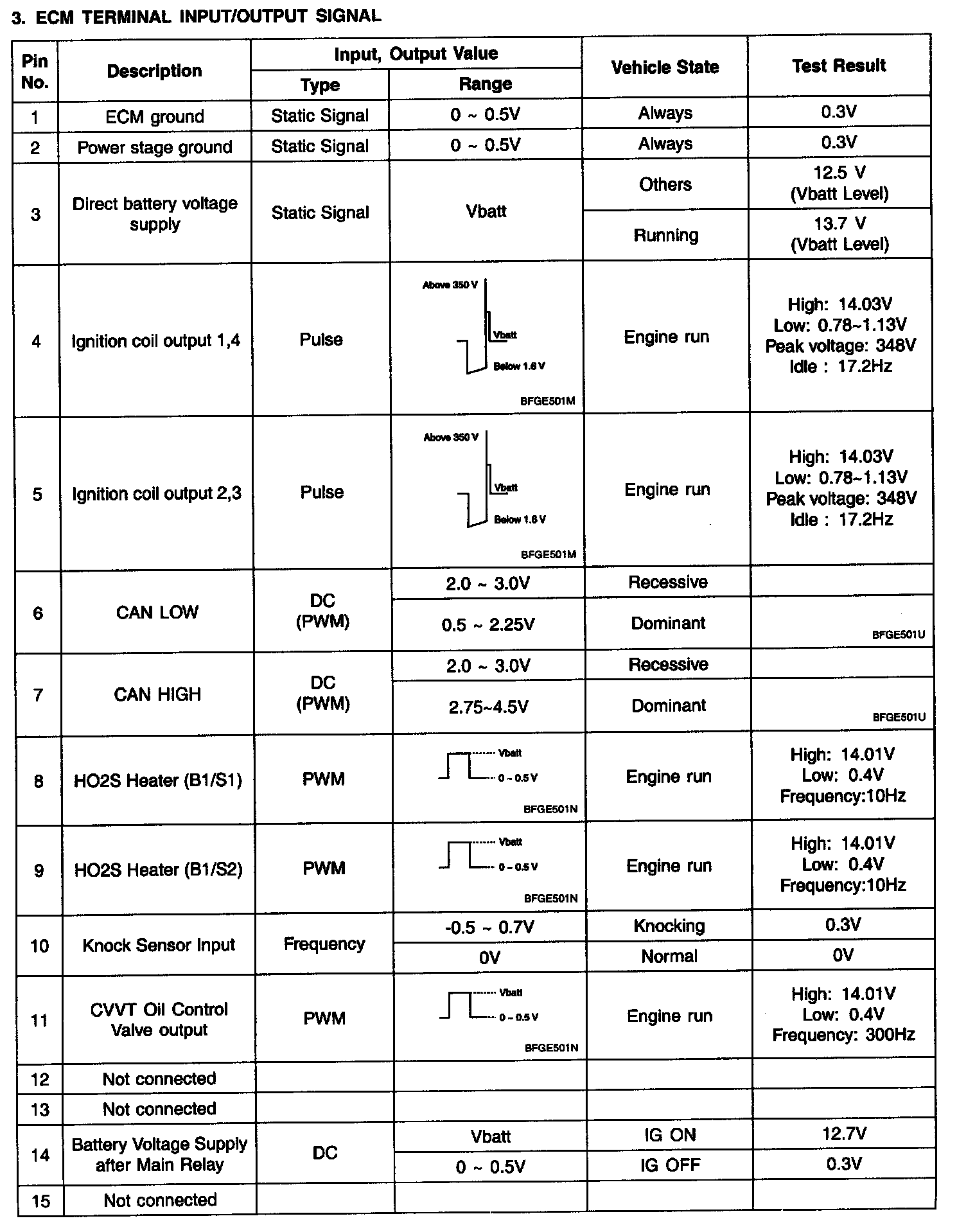

Engine Control Module ECM Terminal Input/Output Signal (Part 1):

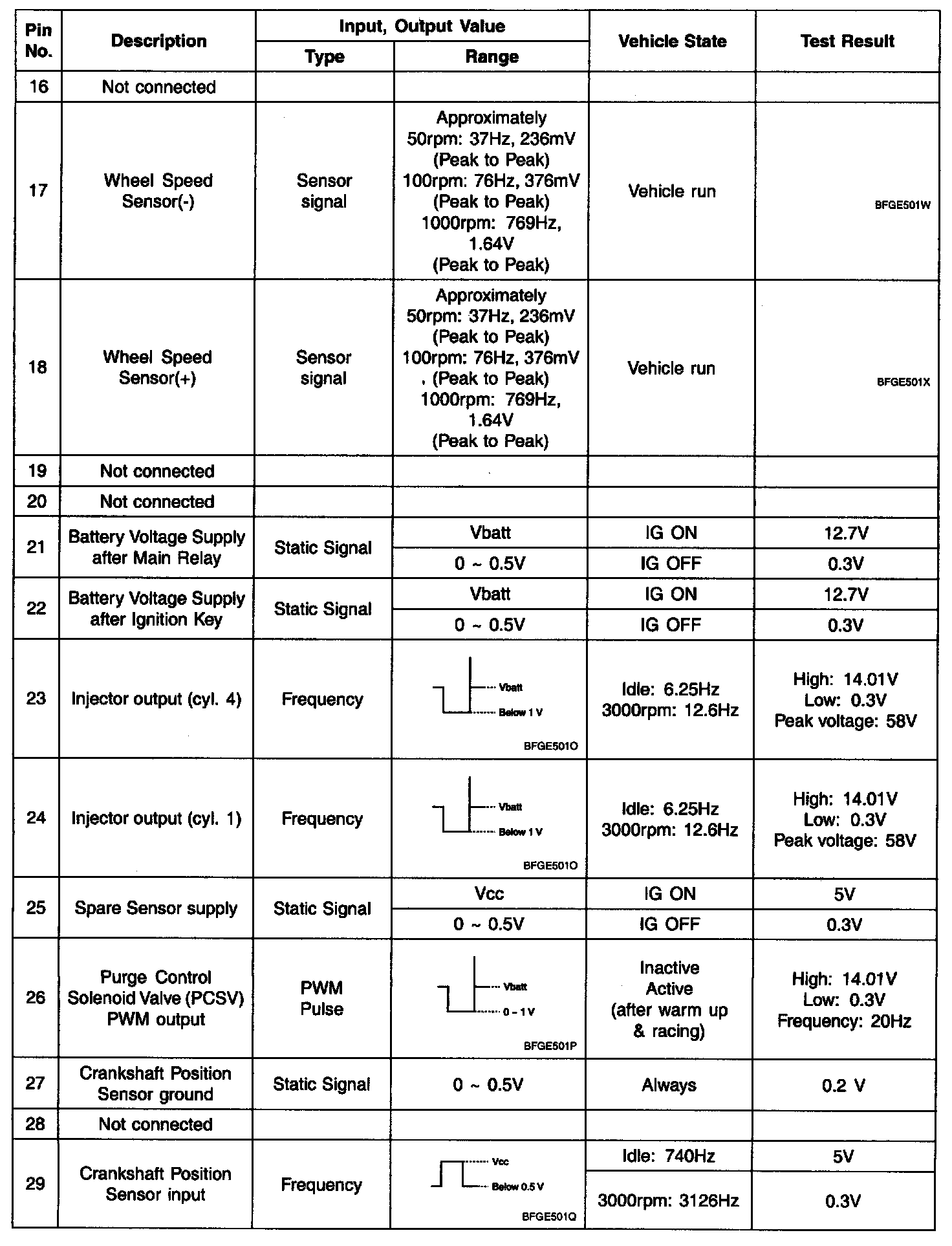

Engine Control Module ECM Terminal Input/Output Signal (Part 2):

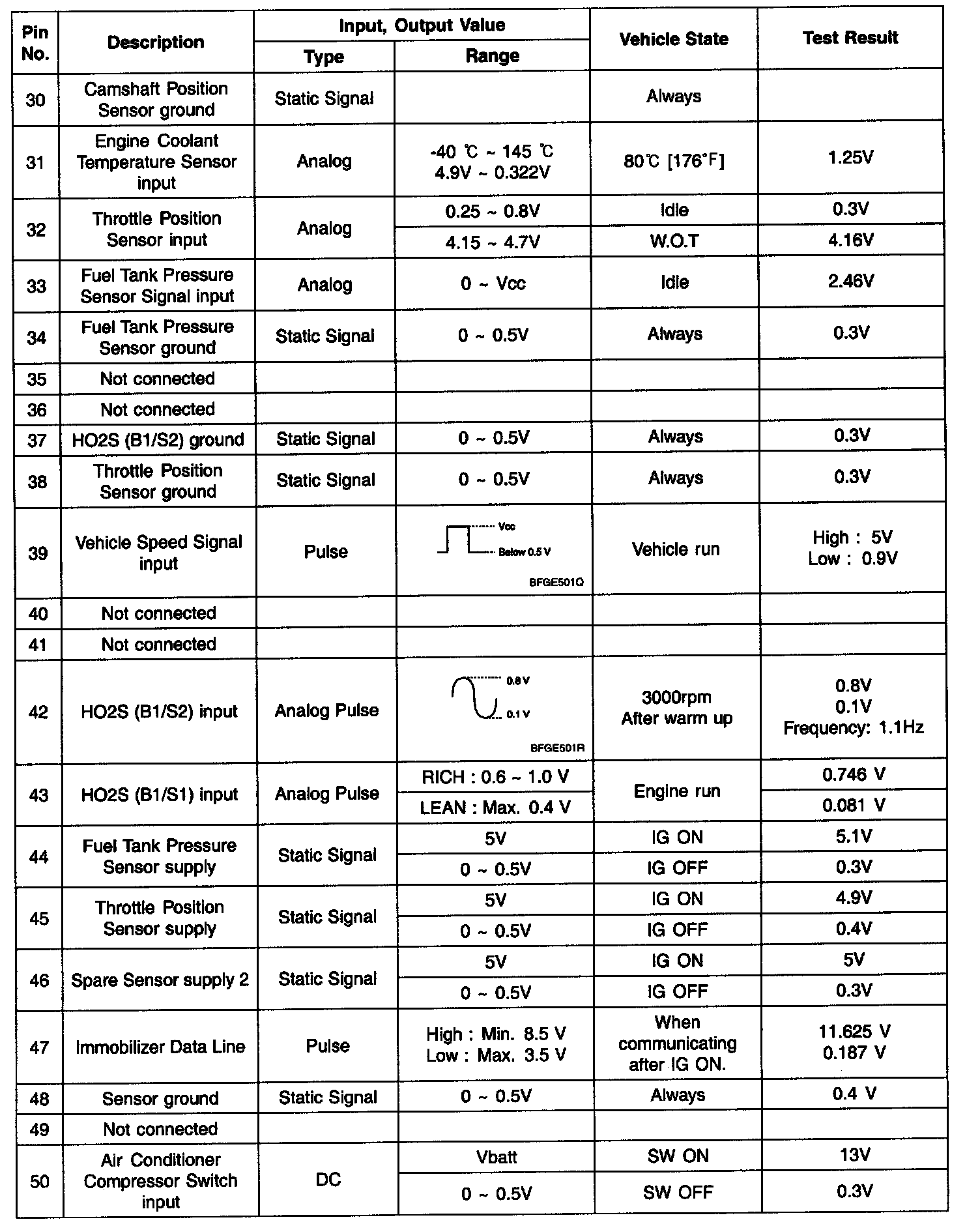

Engine Control Module ECM Terminal Input/Output Signal (Part 3):

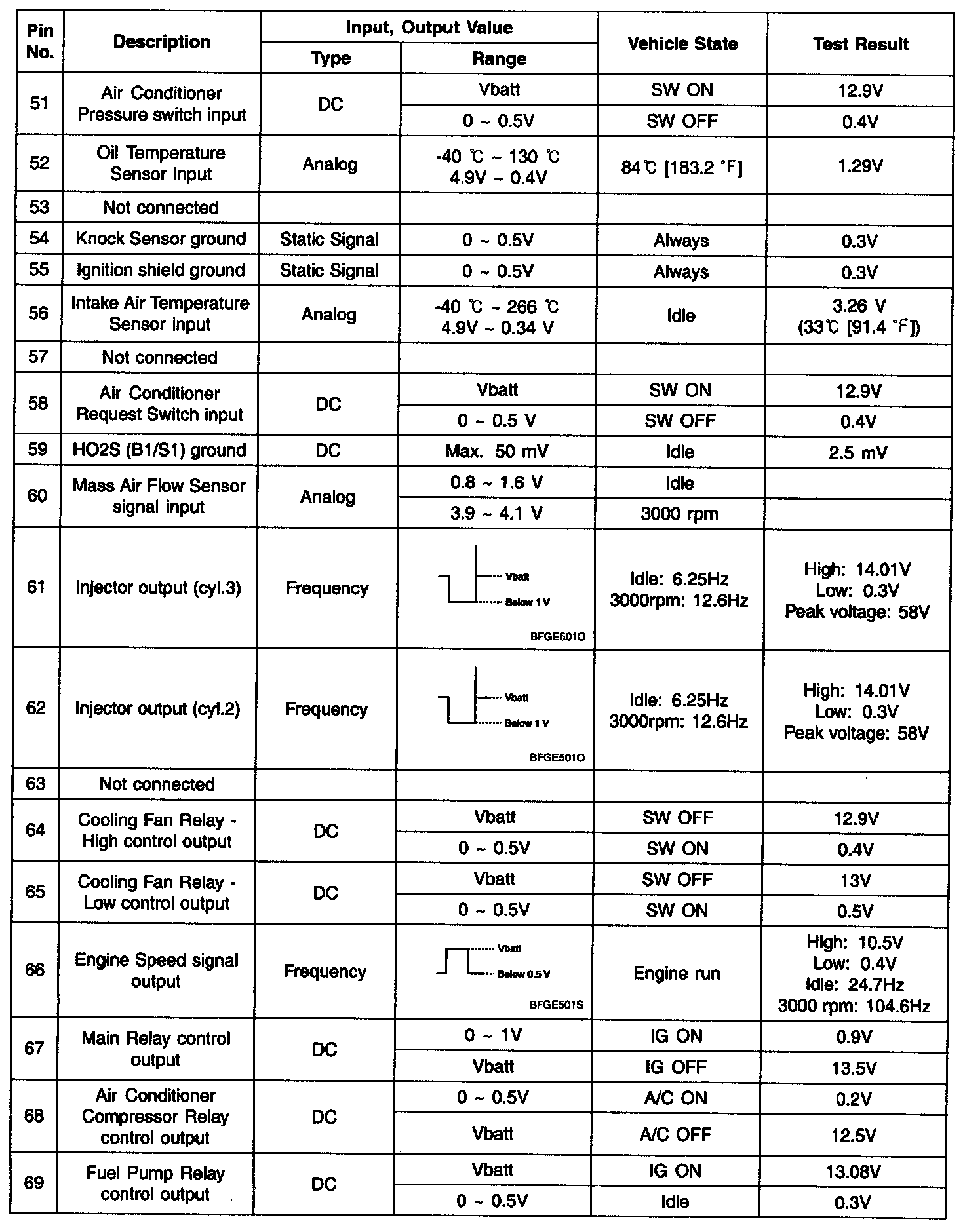

Engine Control Module ECM Terminal Input/Output Signal (Part 4):

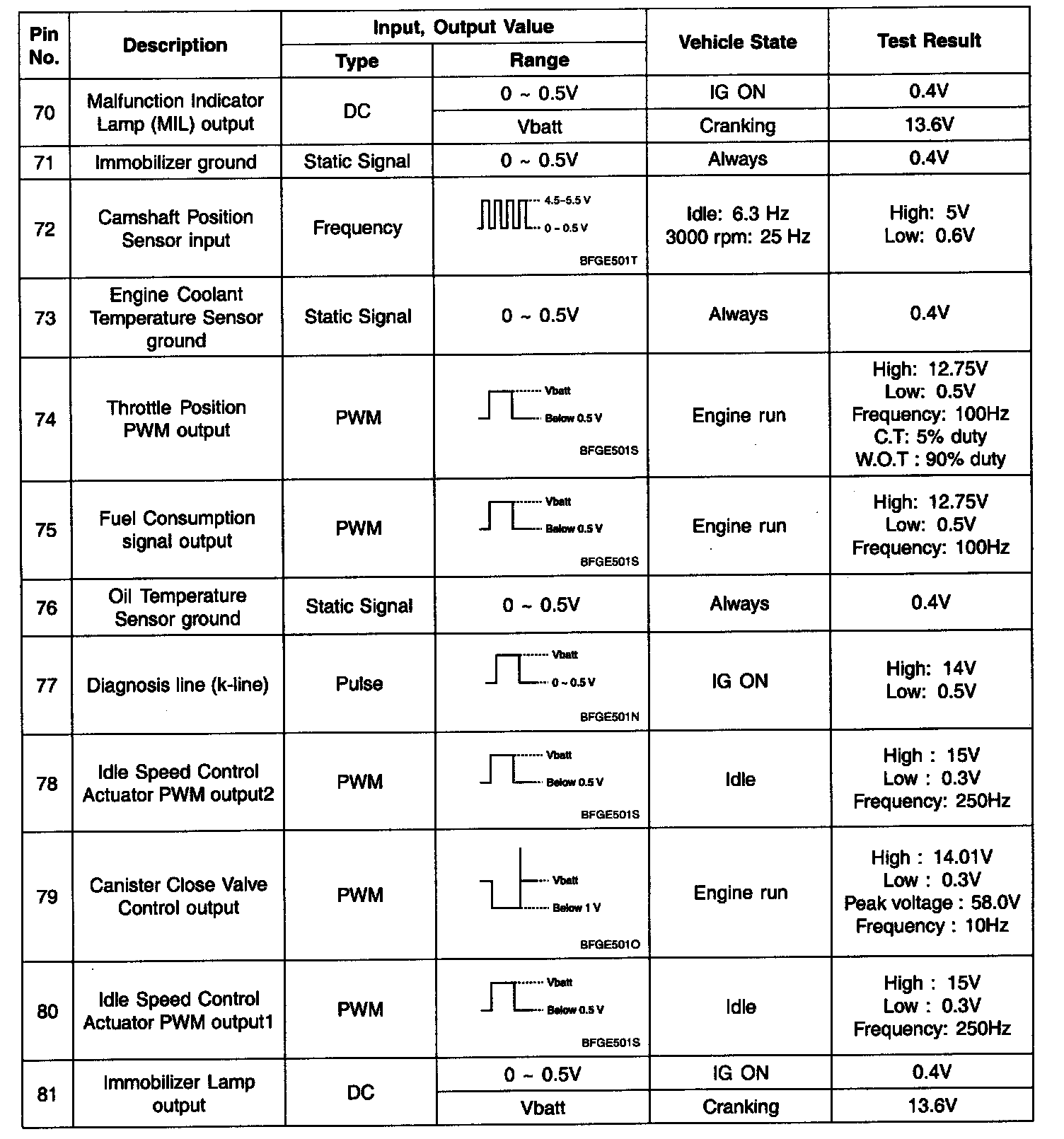

Engine Control Module ECM Terminal Input/Output Signal (Part 5):
