ECM Mirror Replacement

ELECTRO CHROMIC INSIDE REAR VIEW MIRROR

REMOVAL

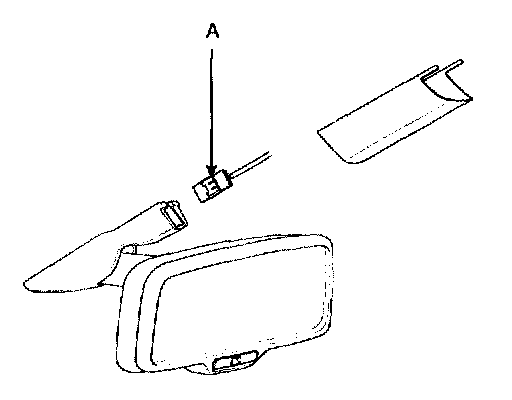

1. Disconnect the mirror connector (A) after removing the mirror wire cover and a screw.
2. Remove the mirror making sure the mounting bracket not to be damaged.

INSTALLATION
1. Reassemble the mirror.
2. Reassemble the connector, screw and wire cover.
