Coolant Temperature Sensor / Switch HVAC: Service and Repair

WATER TEMPERATURE SENSOR

REPLACEMENT
1. Disconnect the negative (-) battery terminal.

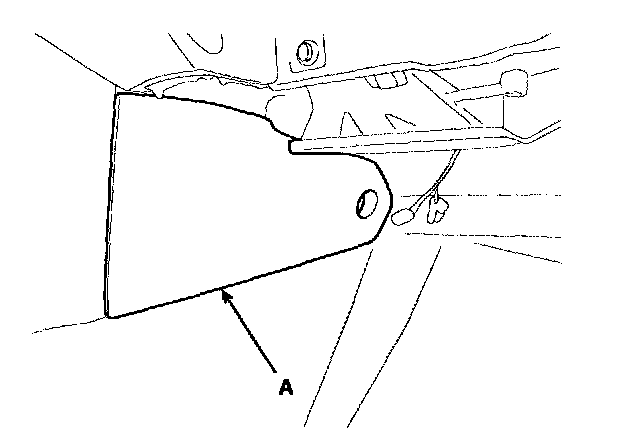

2. Remove the extenser cover (A).

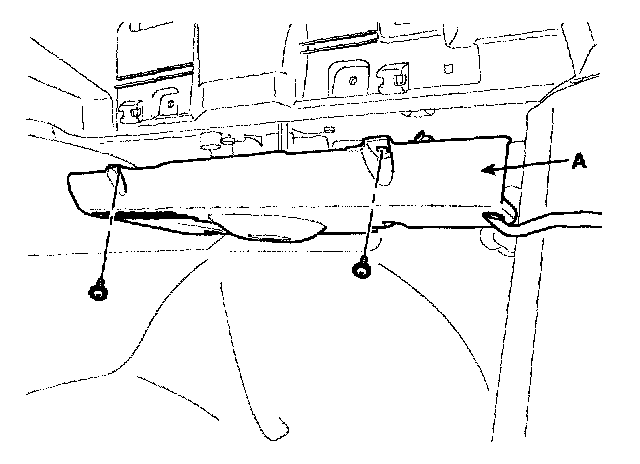

3. Remove the crash pad under cover (A).

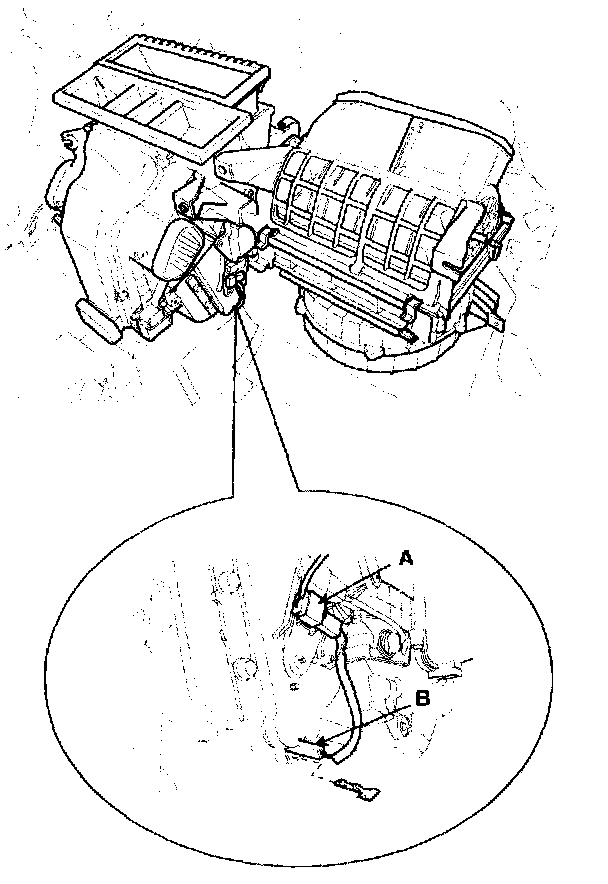

4. Disconnect the connector (A) of water temperature sensor (B) and then remove the water temperature sensor by pulling out.
5. Installation is the reverse order of removal.

NOTE: Take care that wire of water temperature sensor is not to be damaged.
