Parking Assist Control Module: Service and Repair

REAR PARKING ASSIST SYSTEM CONTROL UNIT

REMOVAL
1. Remove the rear left quarter trim of the trunk.

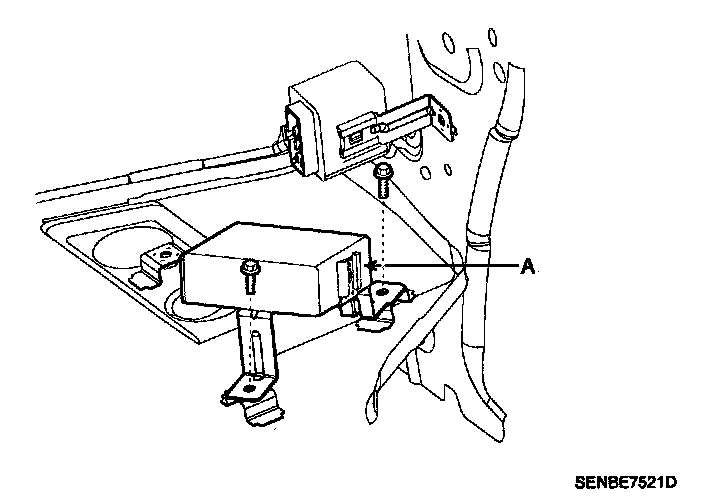

2. Loosen the mounting bolts and remove the rear parking assist system control module unit (A) from the quarter panel.






INSTALLATION
1. Reassemble the rear parking assist system control module.
2. Reassemble the rear left quarter trim.
