Antitheft System - Trim Level Feature Clarification

Group
BODY ELECTRICAL SYSTEM

Number
09-BE-013

Date
JUNE, 2009

Model
2007-2010 VERACRUZ (EN)

Subject
VERACRUZ (EN) REMOTE KEYLESS ENTRY/IMMOBILIZER TRIM LEVEL APPLICATION CLARIFICATION

DESCRIPTION:

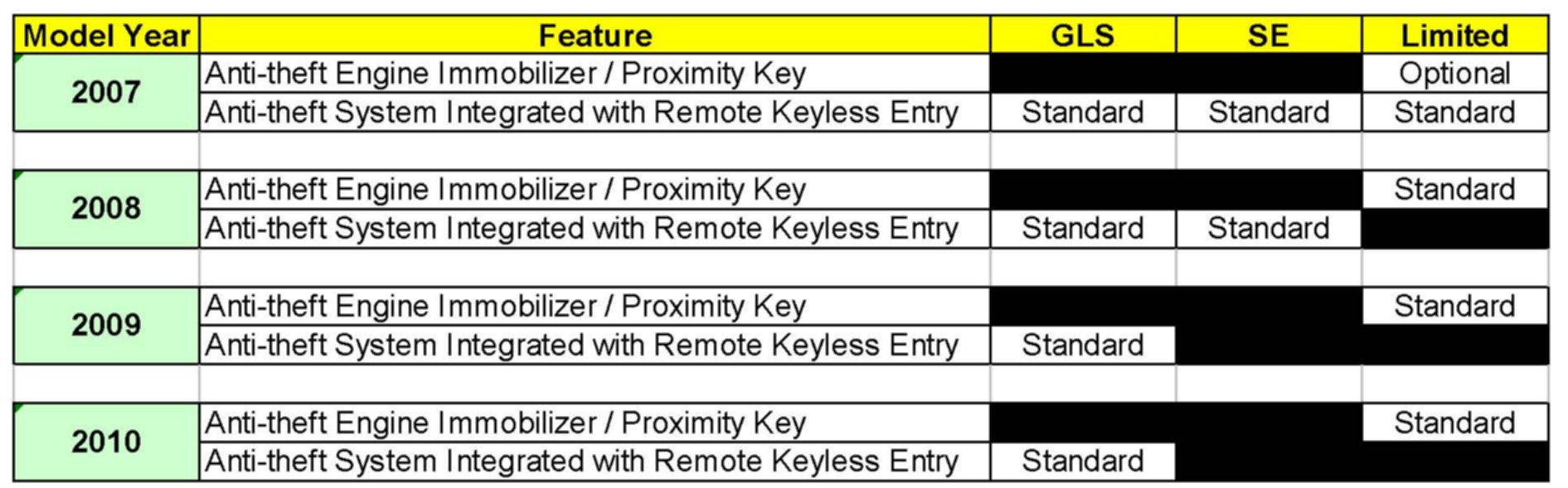

This bulletin clarifies EN Veracruz Immobilizer application by trim level.

This information may be helpful when explaining to a customer which Anti-theft features are installed on a particular Veracruz model and may also be useful before diagnosing any related functions.





NOTE:
When diagnosing Remote Keyless Entry or Immobilizer operation, always refer to the EN Veracruz Shop Manual. Information presented in this bulletin applies only to USA specification models. Canadian specification models may differ.

NOTE:
SE model discontinued after the 2008 model year.

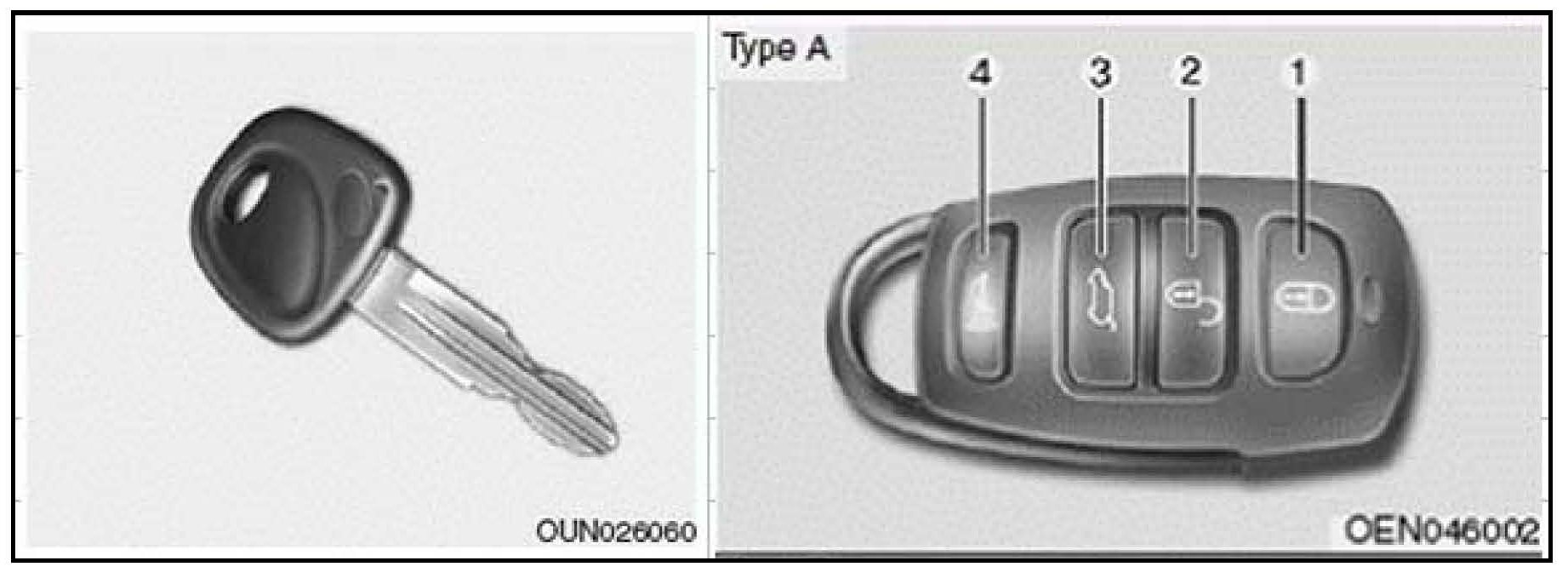

Standard Key/Fob provided with Veracruz GLS or SE Models (no Immobilizer)

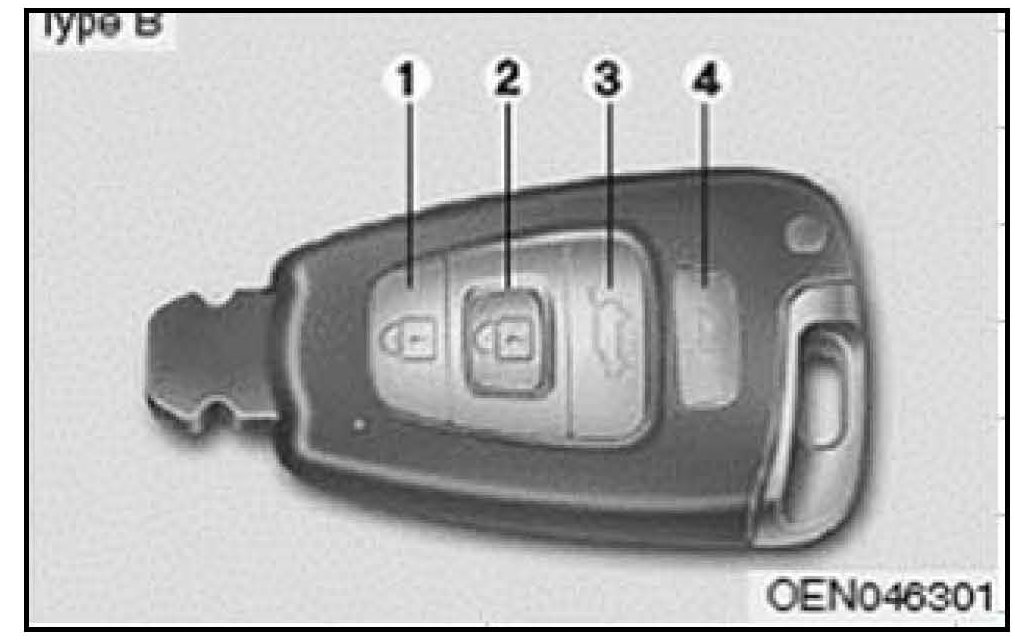

Immobilizer / Proximity Key (Veracruz Limited models only)

EFFECTIVE VEHICLE INFORMATION:

Model: Veracruz (EN)

Effective vehicle production date: All model years.
