Procedure of ATF Level Confirming

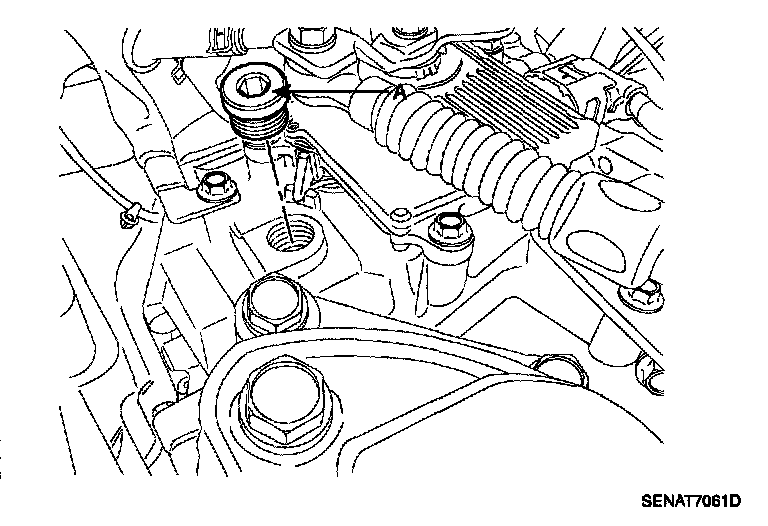

PROCEDURE OF ATF LEVEL CONFIRMING1. Remove the filler plug (A) and the O-ring by using Torx wrench (T55) then add 400cc of ATF from the oil filling hole.
NOTE: In case, remove the air cleaner assembly.
2. Start the engine.
3. Shift from "P" to "D", then from "D" to "P", keeping each shift position "N","R" more than 2 seconds with foot braking.
4. Repeat 2 times above procedure "3".

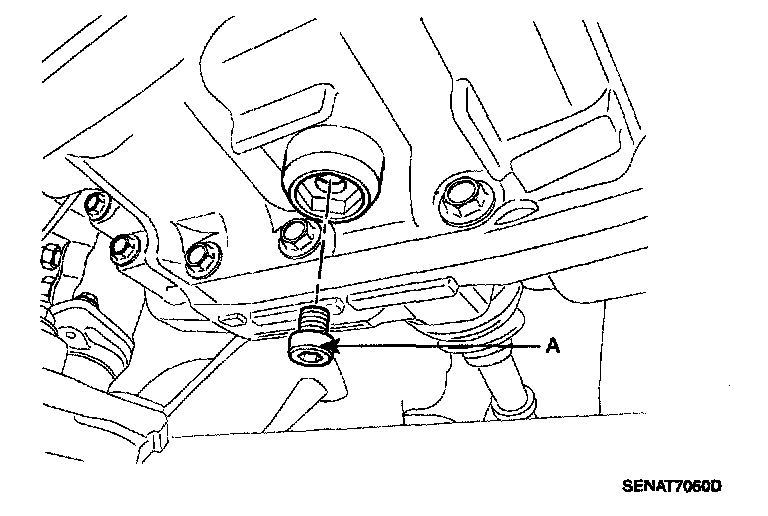

5. Remove the overflow plug (A) and the O-ring by using Torx wrench (T40) when ATF temperature on CAN signal rises up to 50-60°C at stabilized idle speed condition.

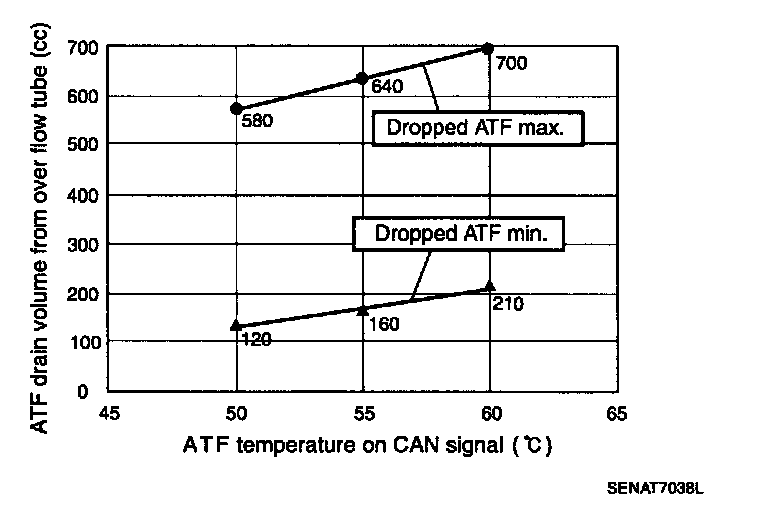

6. Oil level is correct if ATF drain volume is in the range in the figure beige.
7. If the thin oil stream becomes drop by drop, fix the overflow plug with a new O-ring.
O-ring size: Inner dia.-6.07 mm, thickness-1.78 mm
8. Tighten the overflow plug by using Torx (T40) wrench with the specified torque.
TORQUE: 6-9 Nm (0.6-0.9 kgf-m, 4.3-6.5 lb-ft)
9. Fix the filler plug with a new O-ring.
O-ring size: Inner dia.-15.41 mm, thickness-2.21 mm
10. Tighten the filler plug by using Torx (T56) wrench with the specified torque.
TORQUE: 24-56 Nm (2.4-5.6 kgf-m, 17.4-40.5 lb-ft)
