Windshield Washer Switch: Service and Repair

WINDSHIELD WIPER/WASHER SWITCH

REMOVAL
1. Disconnect the negative (-) battery terminal.

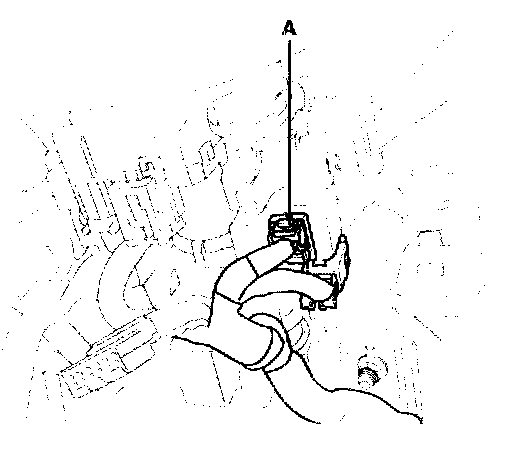

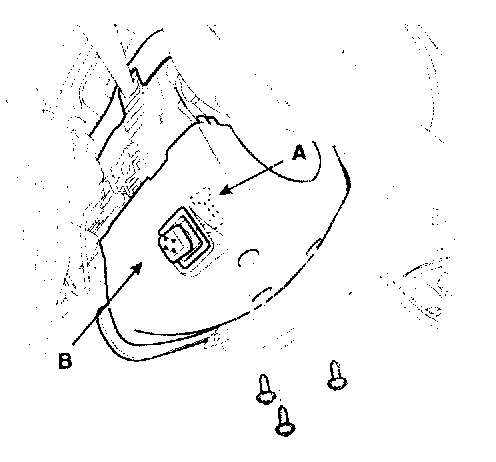

2. Remove the steering column upper and lower shrouds (B) after removing 3 screws and connector (A).




3. Remove the wiper switch assembly after disconnecting the front and rear wiper/washer switch connectors and loosening 2 screws.

INSTALLATION
1. Connect the connectors and reassemble the wiper switch assembly.
2. Reassemble the steering column upper and lower shrouds.
