Components Location

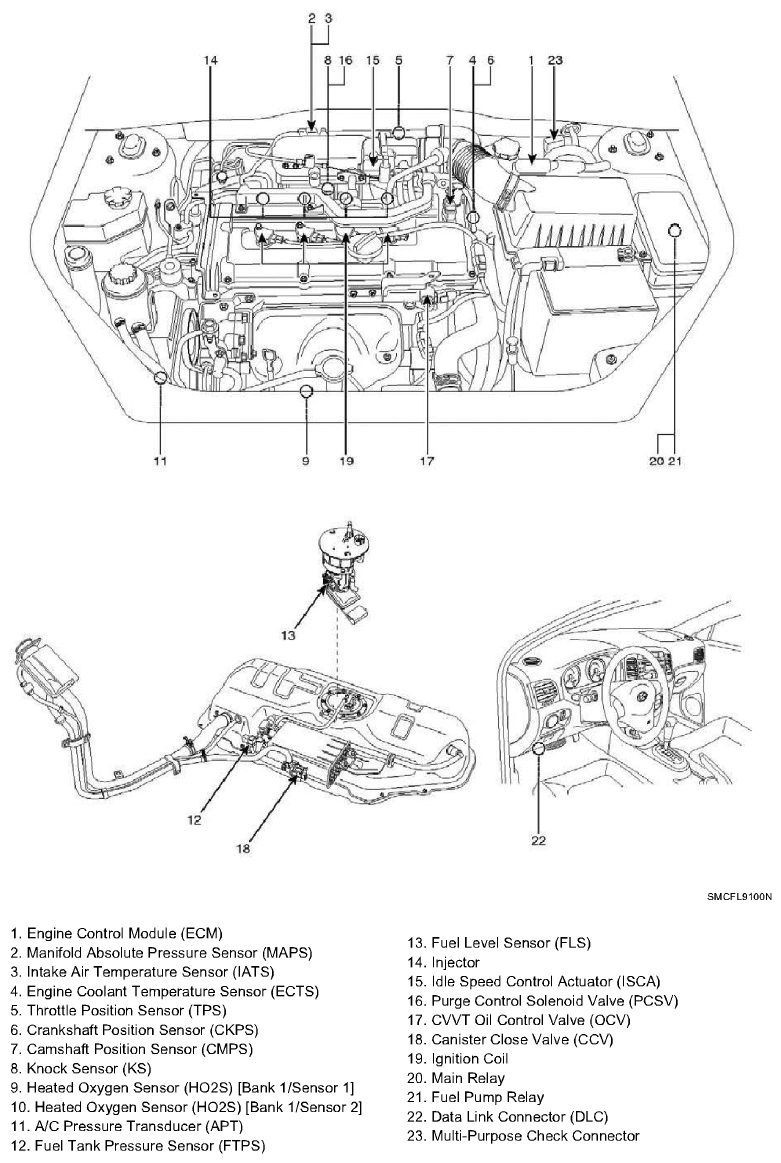

Fig 1: Identifying Fuel System Components Location (1 Of 4)
Courtesy of HYUNDAI MOTOR CO.

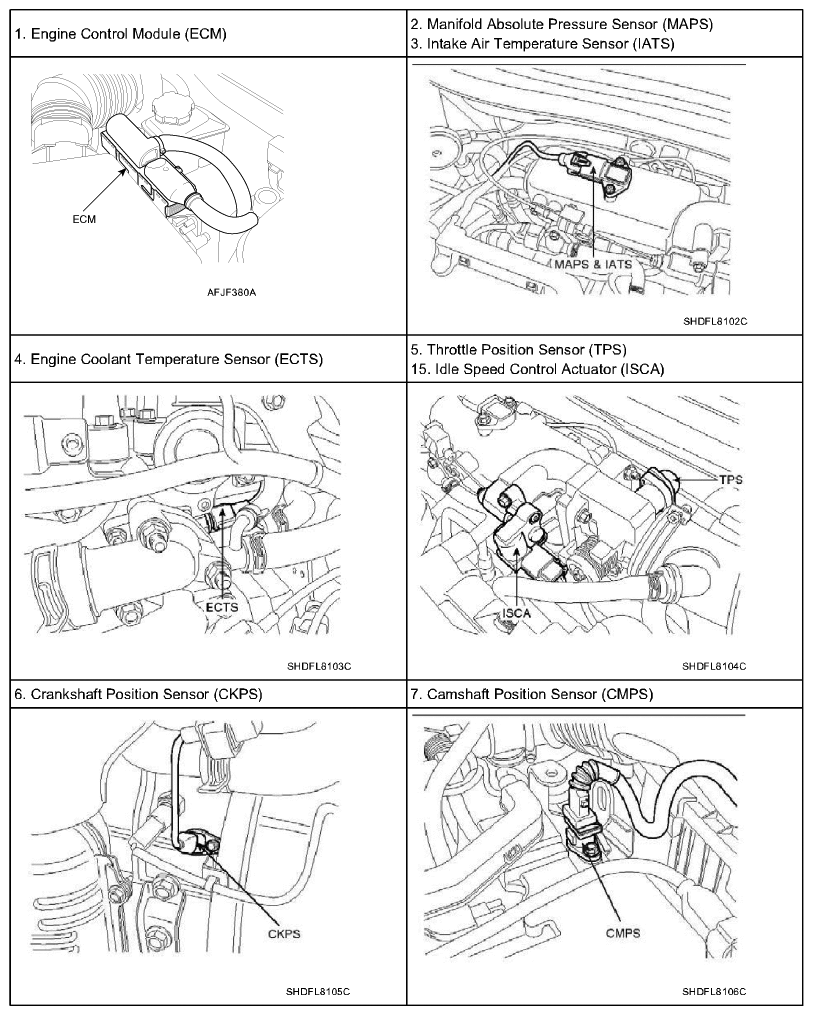

Fig 2: Identifying Fuel System Components Location (2 Of 4)
Courtesy of HYUNDAI MOTOR CO.

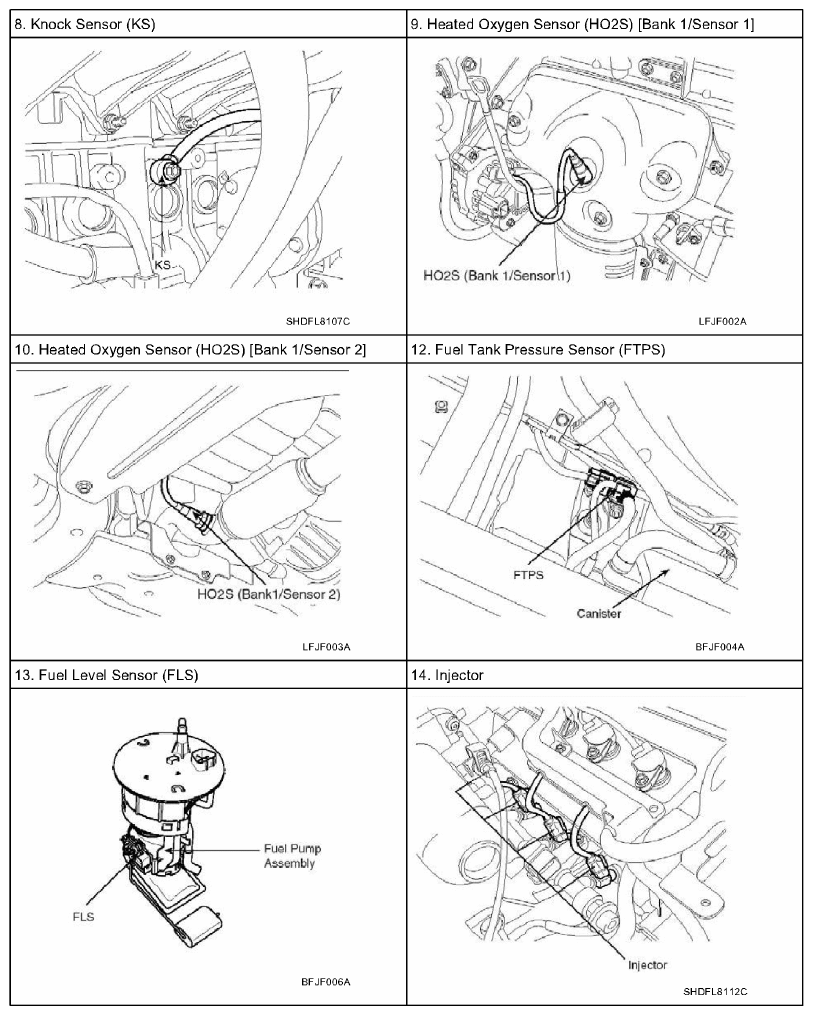

Fig 3: Identifying Fuel System Components Location (3 Of 4)
Courtesy of HYUNDAI MOTOR CO.

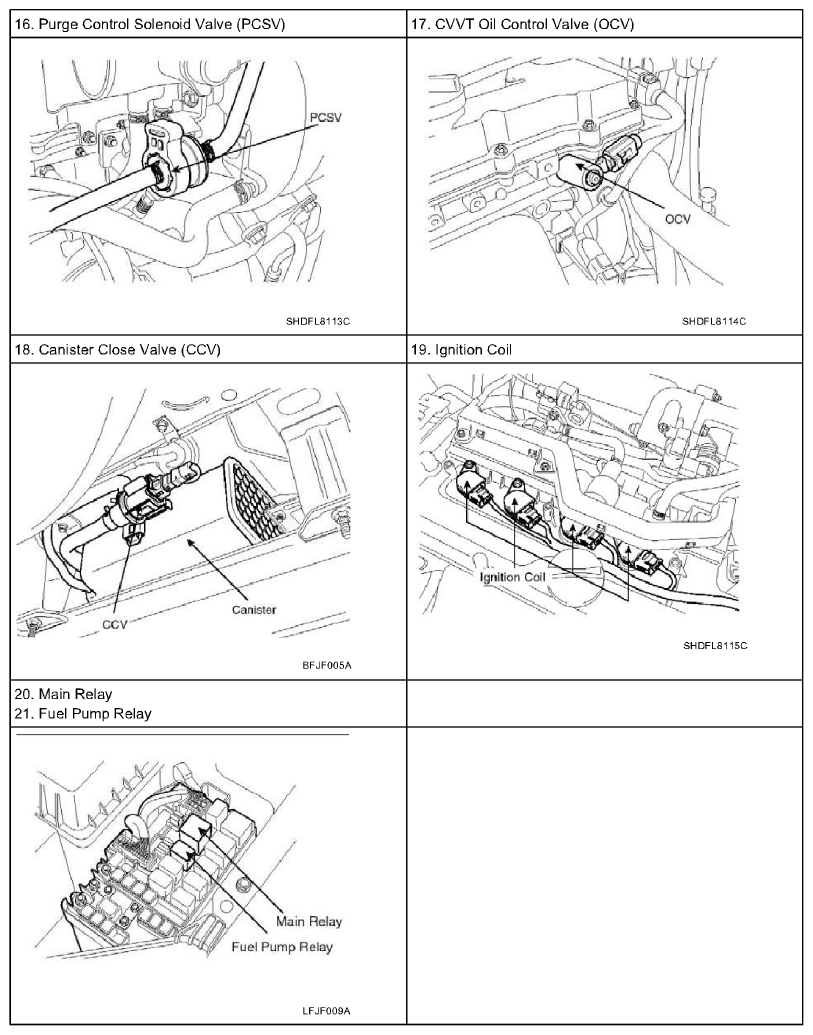

Fig 4: Identifying Fuel System Components Location (4 Of 4)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
