Circuit Diagram

[A/T]

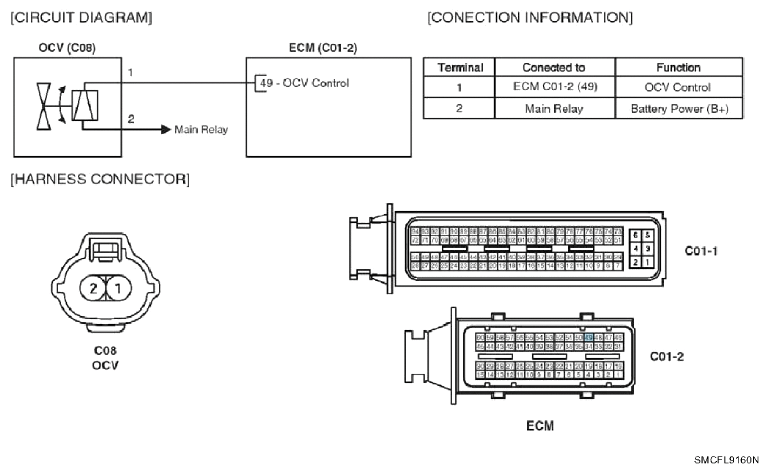

Fig 1: OCV And ECM Circuit Diagram (A/T)
G06130004Courtesy of HYUNDAI MOTOR CO.

[M/T]

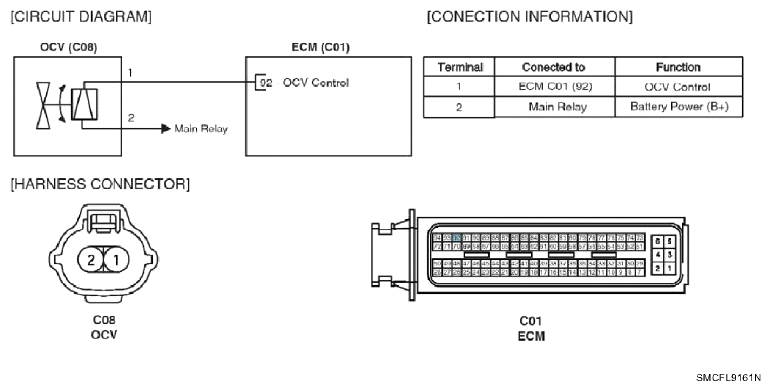

Fig 2: OCV And ECM Circuit Diagram (M/T)
G06130005Courtesy of HYUNDAI MOTOR CO.
