Circuit Diagram

[A/T]

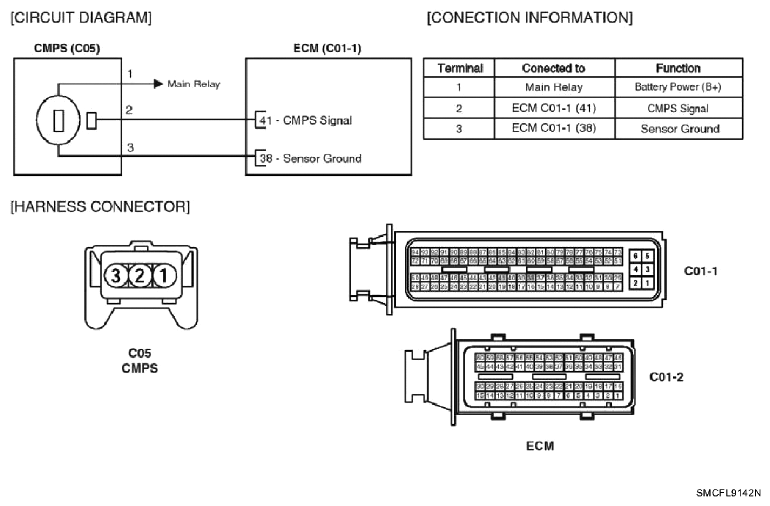

Fig 1: CMPS And ECM Circuit Diagram (A/T)
G06129981Courtesy of HYUNDAI MOTOR CO.

[M/T]

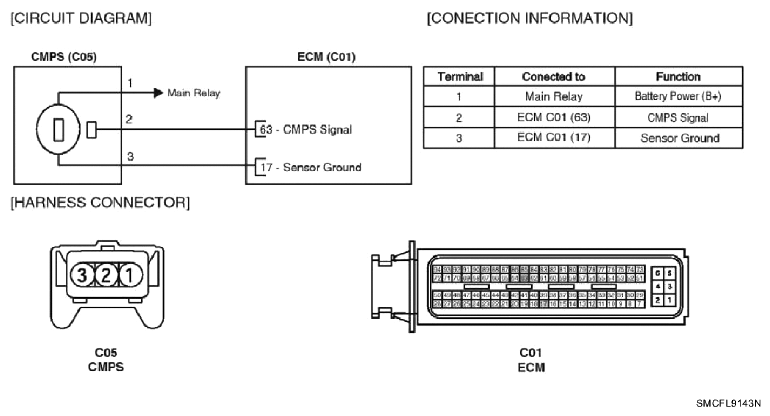

Fig 2: CMPS And ECM Circuit Diagram (M/T)
G06129982Courtesy of HYUNDAI MOTOR CO.
