Canister Close Valve (CCV): Description

Canister Close Valve (CCV) is installed on the canister ventilation line. It seals evaporative emission control system by shutting the canister from the atmosphere when leakage detecting system operates.

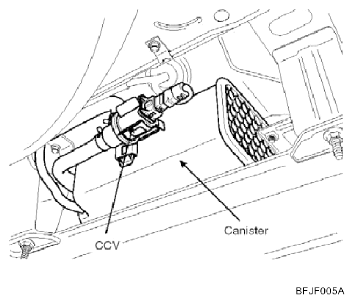

Fig 1: Identifying Canister And CCV Location

Courtesy of HYUNDAI MOTOR CO.
