Fuel Tank Pressure Sensor (FTPS): Description

Fuel Tank Pressure Sensor (FTPS) is a component of the evaporative emission control system and is installed on the fuel tank, the fuel pump, or the canister. It checks the purge control solenoid valve operation and detects a leakage of the system.

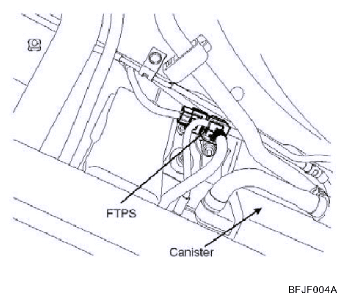

Fig 1: Identifying FTPS And Canister
G06129990Courtesy of HYUNDAI MOTOR CO.
