Circuit Diagram

[A/T]

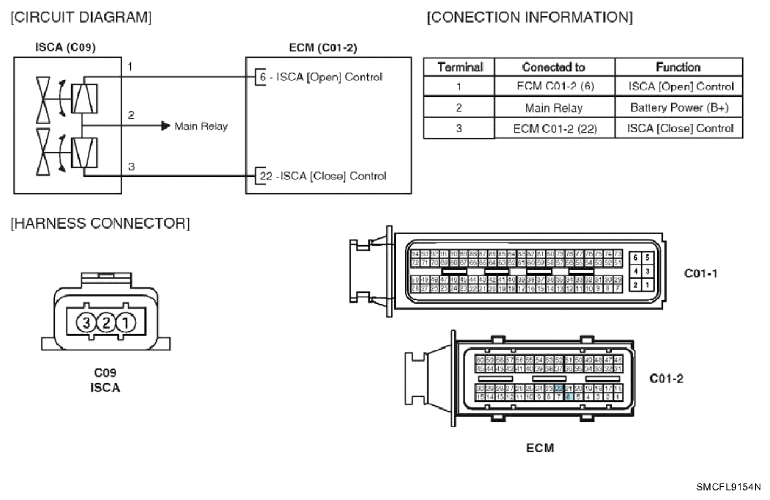

Fig 1: ISCA And ECM Circuit Diagram (A/T)
G06129998Courtesy of HYUNDAI MOTOR CO.

[M/T]

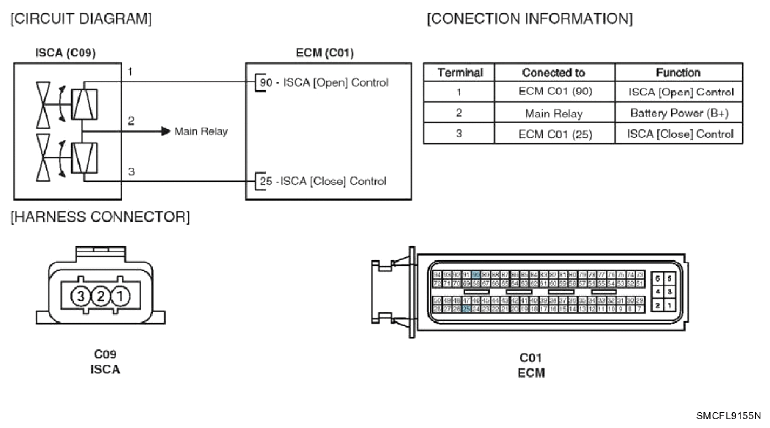

Fig 2: ISCA And ECM Circuit Diagram (M/T)
G06129999Courtesy of HYUNDAI MOTOR CO.
