Circuit Diagram

[A/T]

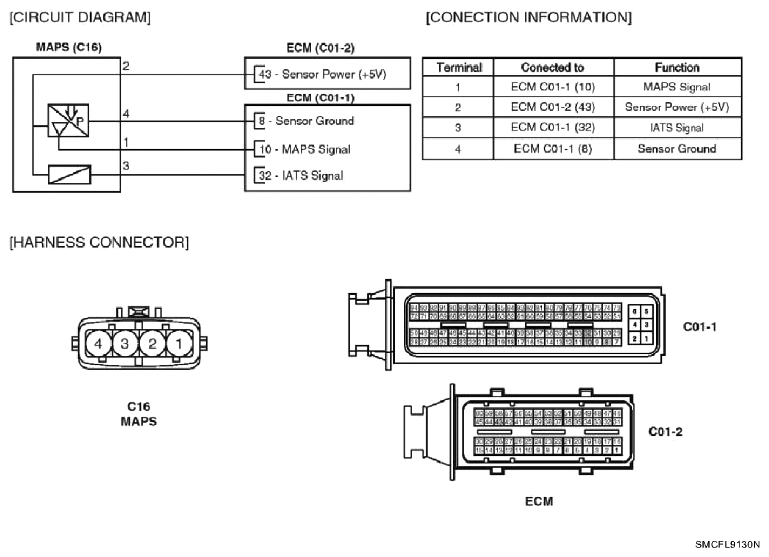

Fig 1: Engine Control System Circuit Diagram (A/T)

Courtesy of HYUNDAI MOTOR CO.

[M/T]

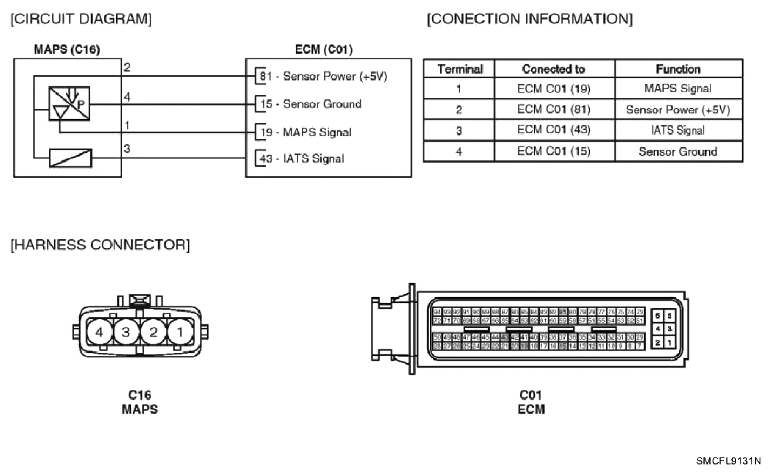

Fig 2: Engine Control System Circuit Diagram (M/T)

Courtesy of HYUNDAI MOTOR CO.
