Fuel Tank: Removal

Preparation
1. Remove the rear seat cushion (Refer to REAR SEAT ).
2. Remove the service cover (A).

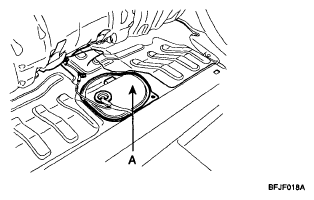

  Fig 1: Identifying Service Cover
  Courtesy of HYUNDAI MOTOR CO.
3. Disconnect the fuel pump connector (A).

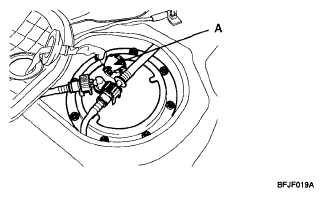

  Fig 2: Identifying Fuel Pump Connector
  Courtesy of HYUNDAI MOTOR CO.
4. Start the engine and wait until fuel in fuel line is exhausted.
5. After engine stalls, turn the ignition switch to OFF position.
Disconnect the fuel feed line (A) and canister hose (B).

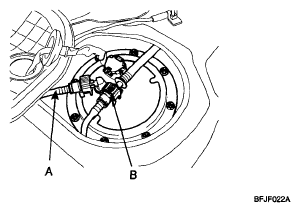

Fig 3: Identifying Fuel Feed Line And Canister Hose
Courtesy of HYUNDAI MOTOR CO.
Life the vehicle.
Remove the center muffler (Refer to ENGINE MECHANICAL SYSTEM (G4ED-GSL 1.6) ).
Support the fuel tank with a jack.
Unscrew the brake hose mounting bolts (A).

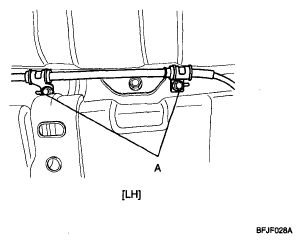

Fig 4: Identifying Brake Hose Mounting Bolts (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

Fig 5: Identifying Brake Hose Mounting Bolts (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Disconnect the fuel filler pipe (A), the leveling hose (B) and canister hose (C).

Fig 6: Identifying Fuel Filler Pipe, Leveling Hose And Canister Hose
Courtesy of HYUNDAI MOTOR CO.
Unscrew the fuel tank mounting bolts (2) and nuts (2), and then remove the fuel tank.
