DTC B1489 Passenger Occupant Classification (OC) Ecu Defect; DTC B1490 Passenger Occupant Classification (OC) Sensor (Bladder) Defect; DTC B1493 Passenger Occupant Classification (OC) System Communication Error; DTC B1494 Passenger Occupant Classification (OC) System Wrong Id
>>
Schematic Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematic Diagram

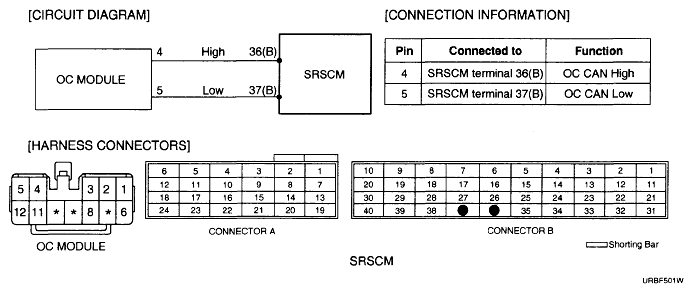

Fig 1: Passenger Occupant Classification ECU Defect - Schematic Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
