Repair Procedures

Replacement

1. Disconnect the negative (-) battery terminal.
2. Remove the center lower side cover(A).

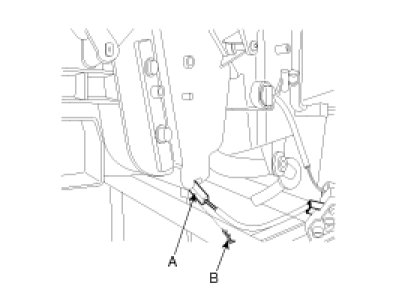

3. Pull the water temperature sensor (A) out at the heater unit with the stopper (B).




4. Installation is the reverse order of removal.

NOTE:
Take care that wire of water temperature sensor is not to be damaged.
