Fuel System - Specifications





Specification

Sensor
Fuel Tank Pressure Sensor (FTPS)
- Type : Piezo-Resistivity type

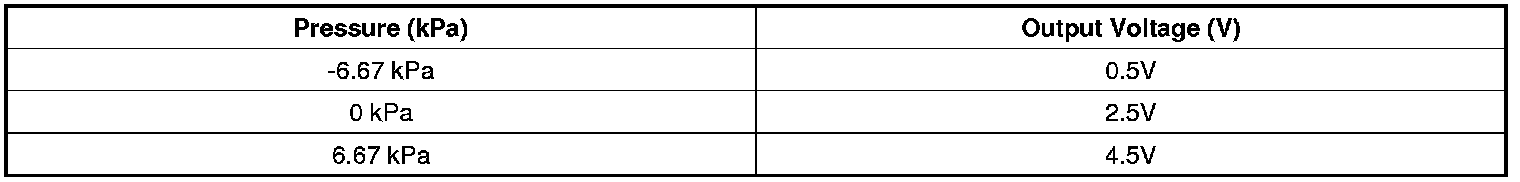

- Specification
