Power Window Main Switch

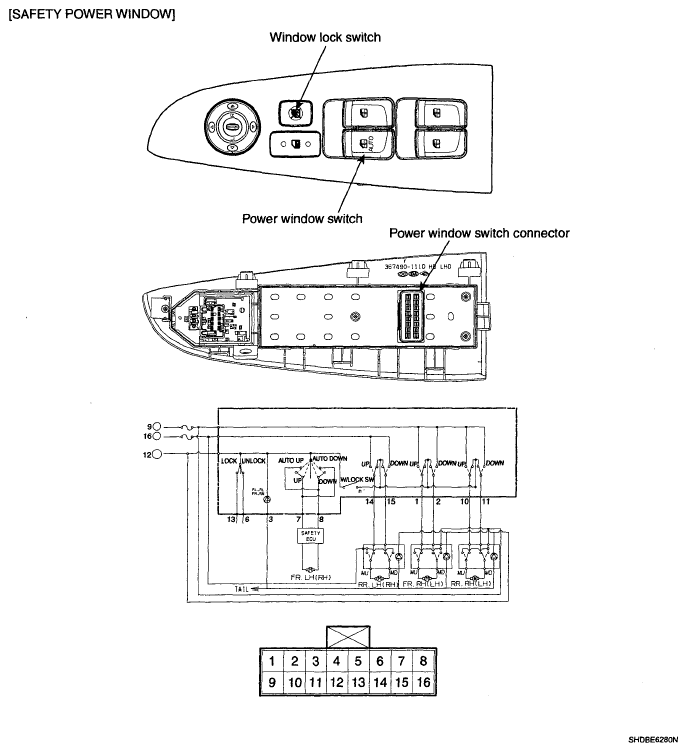

Fig 1: Identifying Power Window Switch Components (Safety Power Window)

Courtesy of HYUNDAI MOTOR CO.

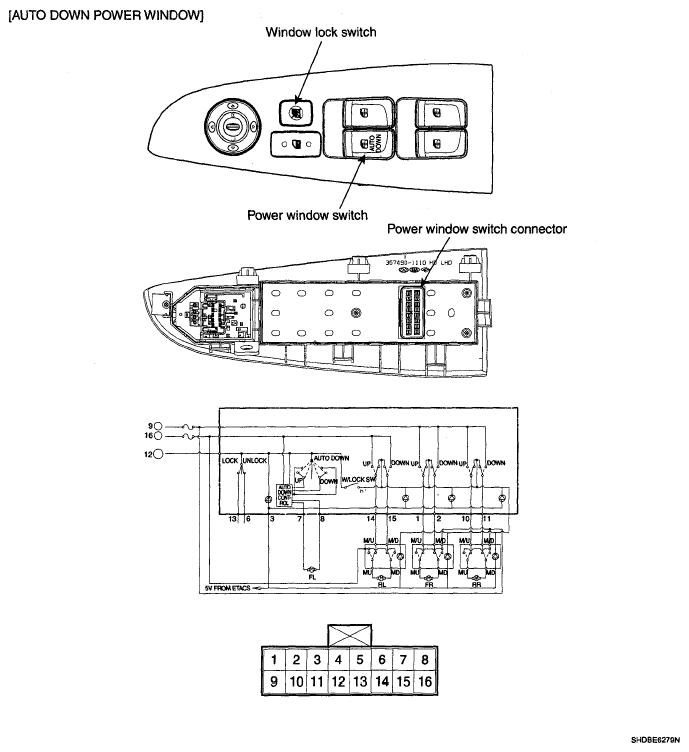

Fig 2: Identifying Power Window Switch Components (Auto Down Power Window)

Courtesy of HYUNDAI MOTOR CO.
