Filler-Neck Assembly: Removal

  1. Disconnect the fuel filler hose (A), the leveling hose (B) and the vacuum hose (C).

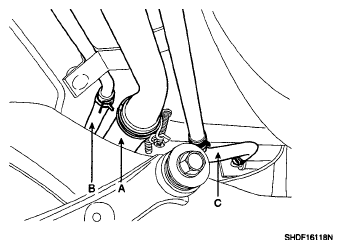

    Fig 1: Identifying Fuel Filler Hose, Leveling Hose And Vapor Hose
    G05363938Courtesy of HYUNDAI MOTOR CO.
  2. Open the fuel filler door and unfasten the filler-neck assembly mounting screws (A).

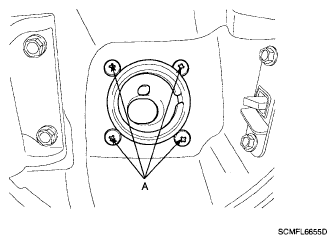

    Fig 2: Identifying Filler-Neck Assembly Mounting Screws
    G05349401Courtesy of HYUNDAI MOTOR CO.
  3. Remove the rear-LH wheel, tire, and the inner wheel house.
  4. Remove the bracket mounting bolts (A) and remove the filler-neck assembly.

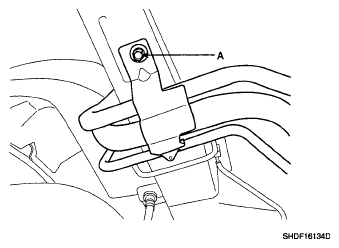

    Fig 3: Identifying Bracket Mounting Bolts
    G05363941Courtesy of HYUNDAI MOTOR CO.
