Camshaft Position Sensor (CMPS): Inspection: Waveform

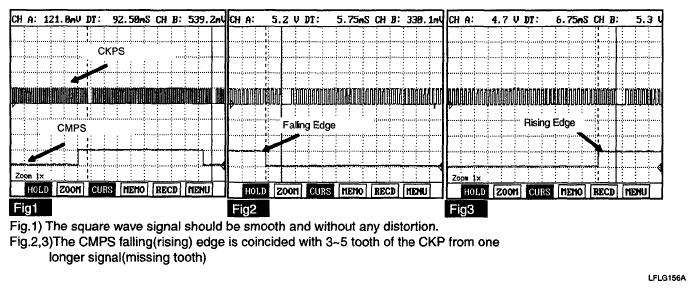

Fig 1: Signal Waveform Of CMPS Falling Rising Edge
G05363721Courtesy of HYUNDAI MOTOR CO.
