Circuit Diagram

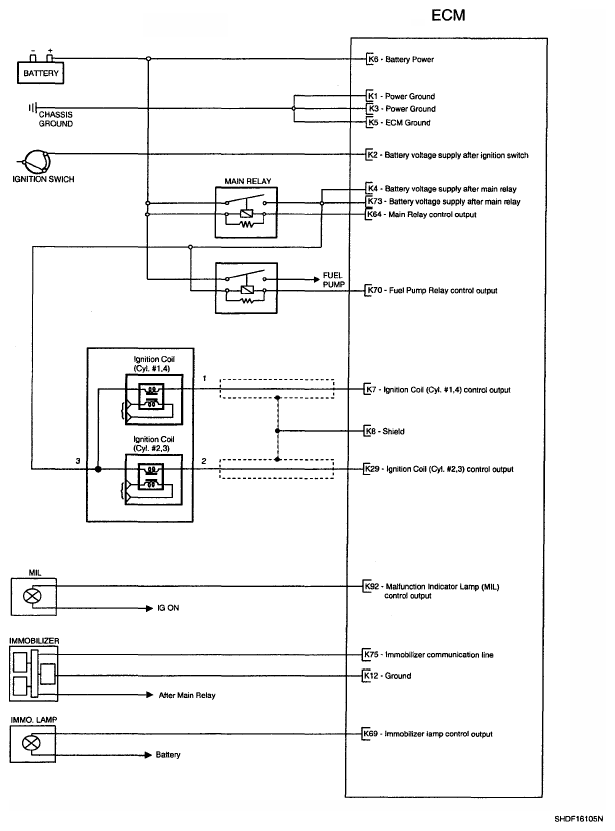

Fig 1: Fuel System Circuit Diagram (1 Of 4)
G05363701Courtesy of HYUNDAI MOTOR CO.

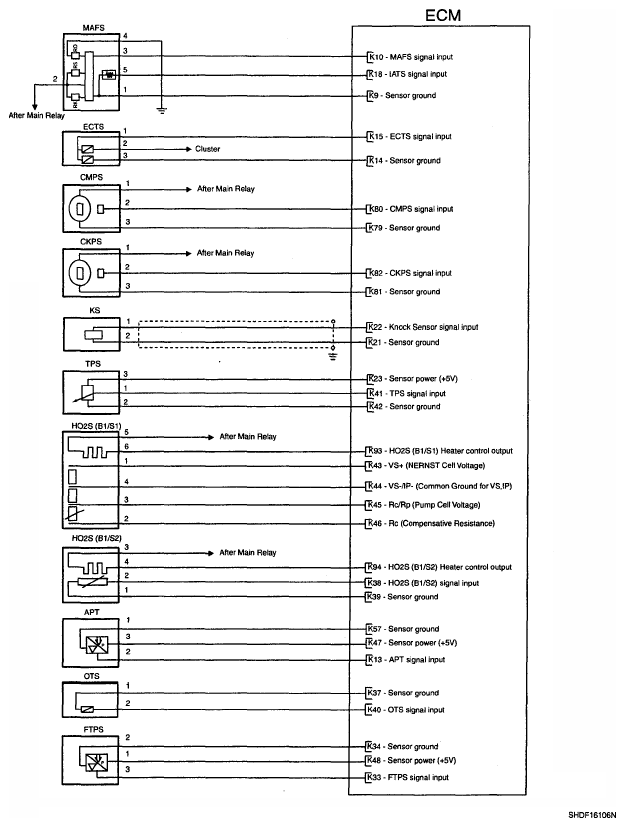

Fig 2: Fuel System Circuit Diagram (2 Of 4)
G05363702Courtesy of HYUNDAI MOTOR CO.

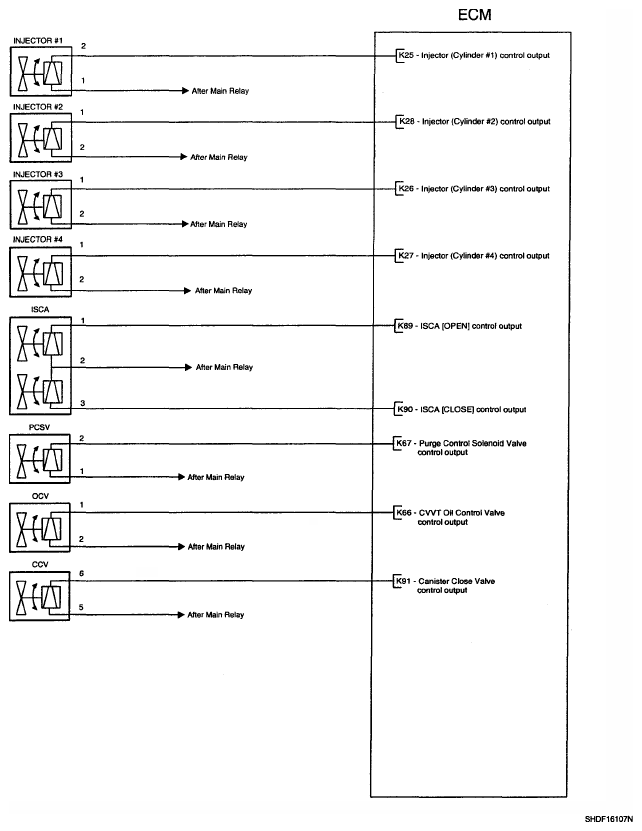

Fig 3: Fuel System Circuit Diagram (3 Of 4)
G05363703Courtesy of HYUNDAI MOTOR CO.

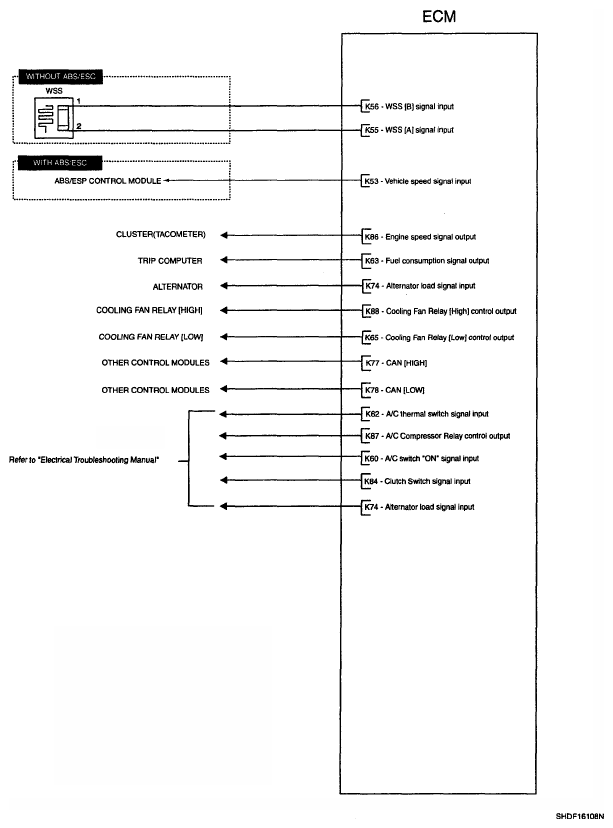

Fig 4: Fuel System Circuit Diagram (4 Of 4)
G05363704Courtesy of HYUNDAI MOTOR CO.
