Hyundai
>>
2009
>>
Elantra GLS, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control/Fuel System (G4GC-GSL 2.0)
>>
Gasoline Engine Control System
>>
Fuel Tank Pressure Sensor (Ftps)
>>
Inspection
>>
Schematic Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematic Diagram

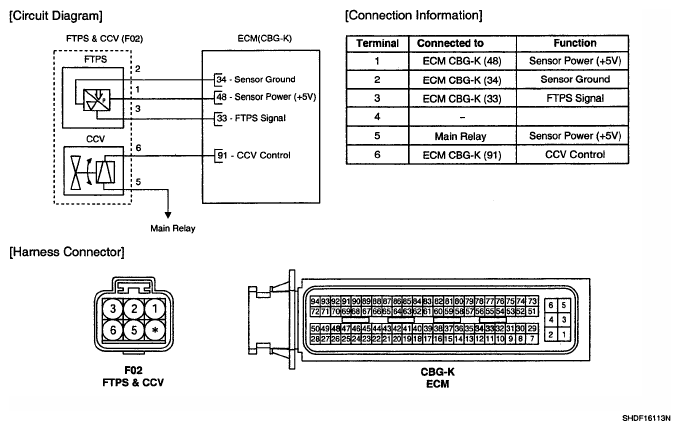

Fig 1: Fuel Tank Pressure Sensor (FTPS) - Schematic Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
