Signal Waveform And Data

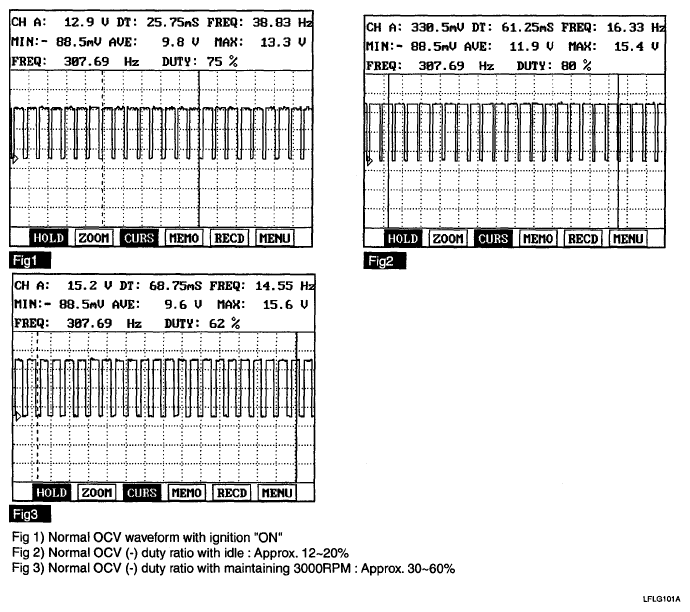

Fig 1: Signal Waveform Of Oil Control Valve (OCV)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
