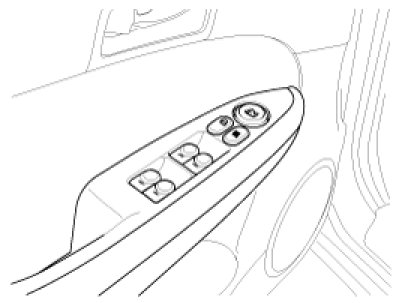

Power Window Main Switch

Inspection

Power Window Main Switch Inspection
1. Disconnect the negative (-) battery terminal.
2. Remove the front door trim.

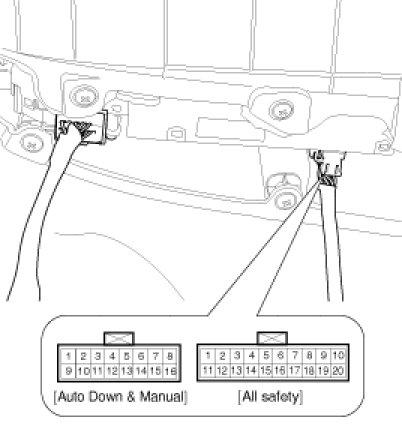

3. Disconnect the connector from the switch.

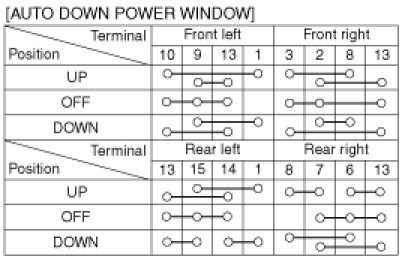

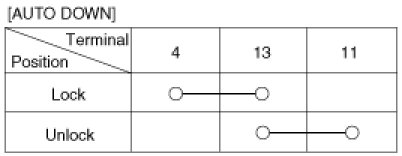

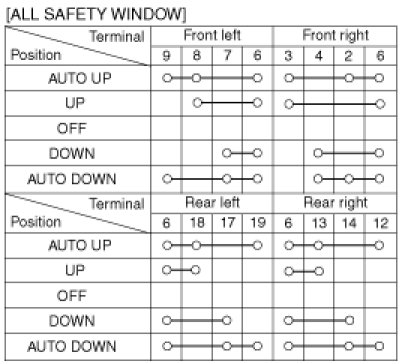

4. Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.
