Electrical Specifications





Specification

Sensor
Crankshaft Position Sensor (CKPS)
- Type: Magnetic field sensitive type

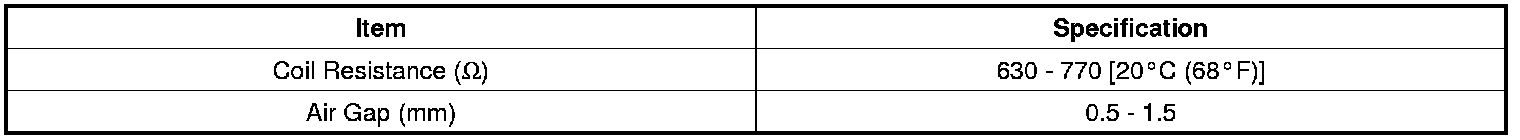

- Specification
