Monitor Scan Tool Data

Ignition "OFF", connect scan tool.
Ignition "ON" & Engine "OFF", select "Diagnostic Trouble Codes(DTC)" mode.
Monitor diagnostic trouble code and present of trouble code.
Using a scan tool, clear the DTC.

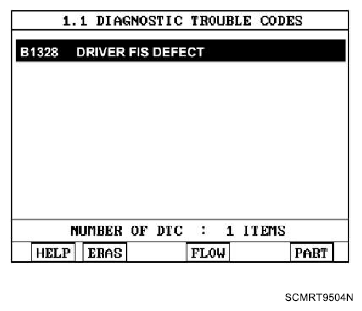

Fig 1: Scan Tool Display - Driver FIS Defect
Courtesy of HYUNDAI MOTOR CO.
NOTE:
- H: Historical fault
- P : Present fault
Is DTC present problem?
YES
- Go to "W/HARNESS INSPECTION " procedure.
NO
- Displaying nothing (no DTC) or DTC with label "H"(historical) shows that Fault is intermittent caused by poor contact in the part's and/or SRSCM connector or was repaired and SRSCM memory was not cleared.
  Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
- Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
