Hyundai
>>
2009
>>
Sonata GLS, 2.4 C, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System (Fuel System) - 2.4L
>>
Fuel Tank Pressure Sensor (FTPS)
>>
Circuit diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

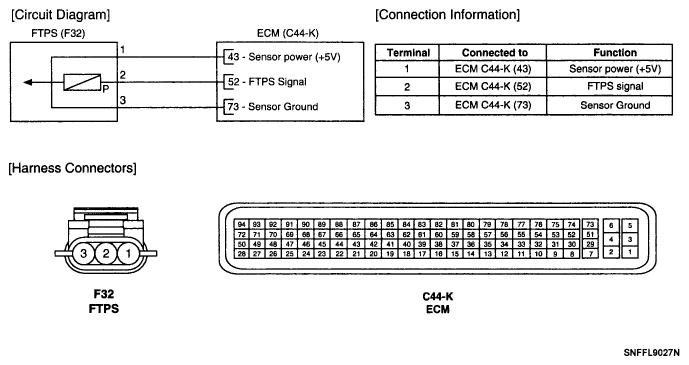

Circuit diagram
Fig 1: Identifying FTPS And ECM Connector Location
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
