Exhaust Manifold

Exhaust Manifold

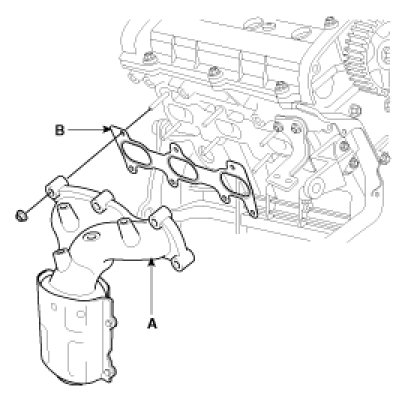

Install the exhaust manifold(A) and gasket(B)

Tightening torque 30 - 35 Nm (3.0 - 3.5 kgf.m, 22 - 26 lb-ft)
