Ground Circuit Inspection
- Ignition "OFF".
- Disconnect HO2S and PCM connectors.

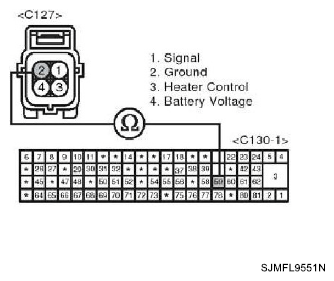

- Measure resistance between terminals 2 of the sensor harness connector and 59 of the PCM harness connector.
Specification : Approx. 0Ω
- Is resistance within the specification?
YES
- Go to "SIGNAL CIRCUIT INSPECTION " procedure.
NO
- Repair open in the ground circuit and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
