Hyundai
>>
2009
>>
Tucson GLS, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
DTC Troubleshooting Procedures (2.0L)
>>
Troubleshooting for DTC
>>
P0130 O2 Sensor Circuit (Bank 1/Sensor 1)
>>
Schematic Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematic Diagram

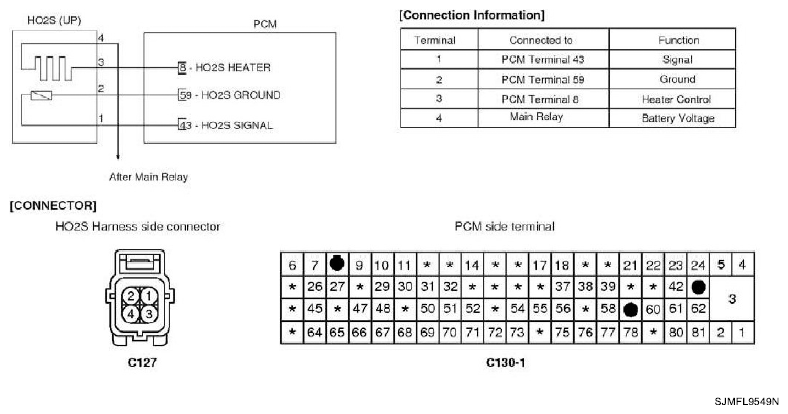

Fig 1: HO2S And PCM - Schematic Diagram
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
