Signal Circuit Inspection

  1. Ignition "OFF"
  2. Disconnect HO2S connector.
  3. Ignition "ON"
  4. Measure resistance between terminal 2 of the sensor harness connector and chassis ground.

    Specification  : Approx. 0V

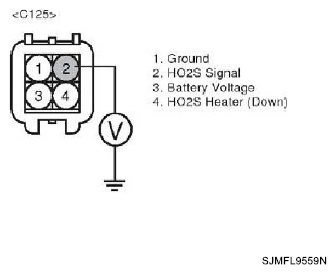

    Fig 1: Measuring Resistance Between Terminal 2 Of Sensor Harness Connector And Chassis Ground
    G06206397Courtesy of HYUNDAI MOTOR AMERICA
  5. Is voltage within the specification?
