Electric Control Location

The TCM is located below the dashboard. However, in the β-engine vehicles, there is not TCM but PCM.

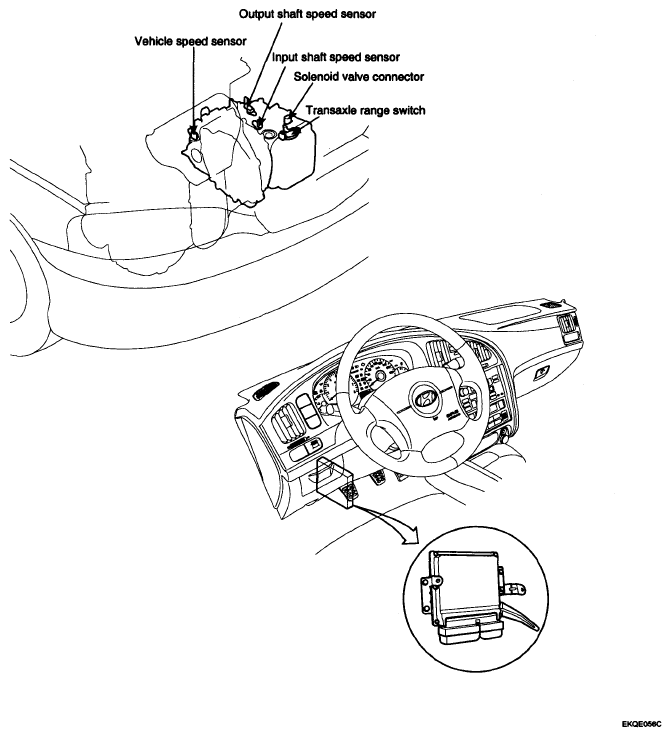

Fig 1: Identifying Electric Control Location
G04811191Courtesy of HYUNDAI MOTOR CO.
