Hydraulic System Diagram

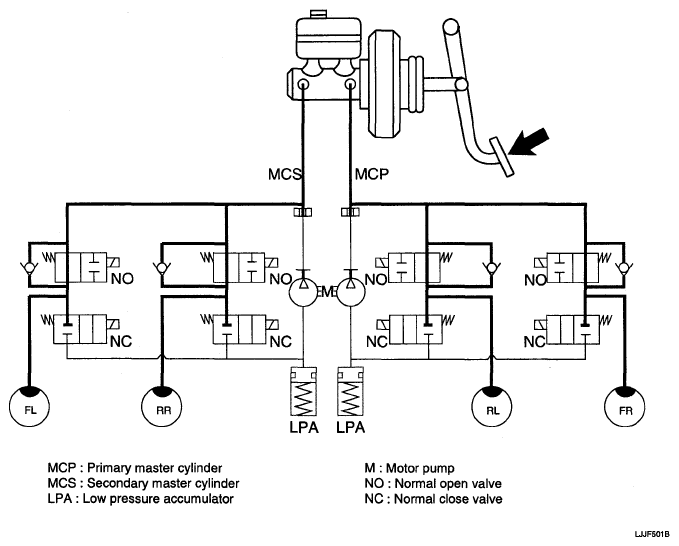

Fig 1: Hydraulic System Diagram
G05331404Courtesy of HYUNDAI MOTOR CO.

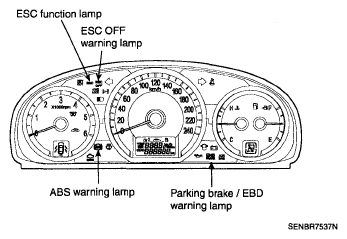

Fig 2: Identifying ABS Warning Lamp And ESC Function Lamp
G05331405Courtesy of HYUNDAI MOTOR CO.
