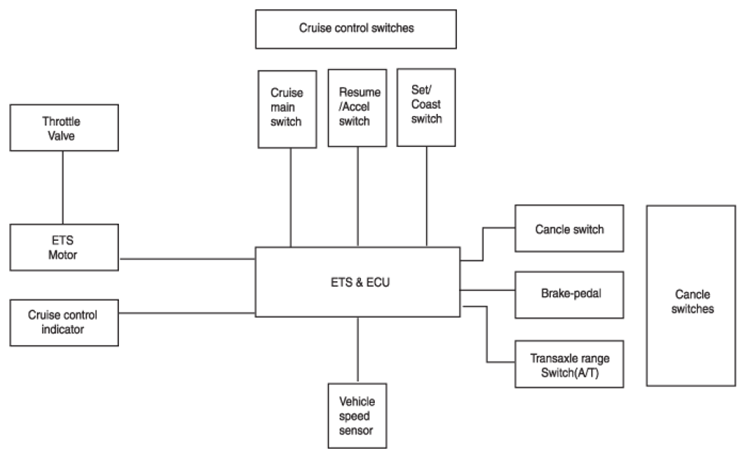

System Block Diagram: Notes
Component Parts And Function Outline
COMPONENT PARTS AND FUNCTION REFERENCE CHART
| Component part | Function | |
|---|---|---|
| Vehicle-speed sensor | Converts vehicle speed to pulse. | |
| Engine control module (ECM) | Receives signals from sensor and control switches; | |
| Cruise control indicator | Illuminates when CRUISE main switch is ON (Built into cluster) | |
| Cruise Control switches | CRUISE main switch | Switch for automatic speed control power supply. |
| Resume/Accel switch | Controls automatic speed control functions by Resume/Accel switch (Set/Coast switch) | |
| Set/Coast switch | ||
| Cancel switch | Cancel switch | Sends cancel signals to ECM |
| Brake-pedal switch | ||
| Transaxle range switch (A/T) Clutch switch (M/T) |
||
| ETS motor | Regulates the throttle valve to the set opening by ECM. | |
| * ETS : Electronic Throttle System | ||
